CHANGHE FREEDOM SERVICE MANUAL TRANSMISSION
2) Using spring pin remover(C)(special tool)，d rive out yoke pin on low speed gear shift fork．and
pull out shift shaft．During this work，be careful not to let locating ball，interlock ball and spring fly away．
CAUTI ON：
when removing yoke pin，be sure not to I drive it out s0 far as to contact case．Or it will
cause damage to case．
Spring pin remover(C) (09922-85811)

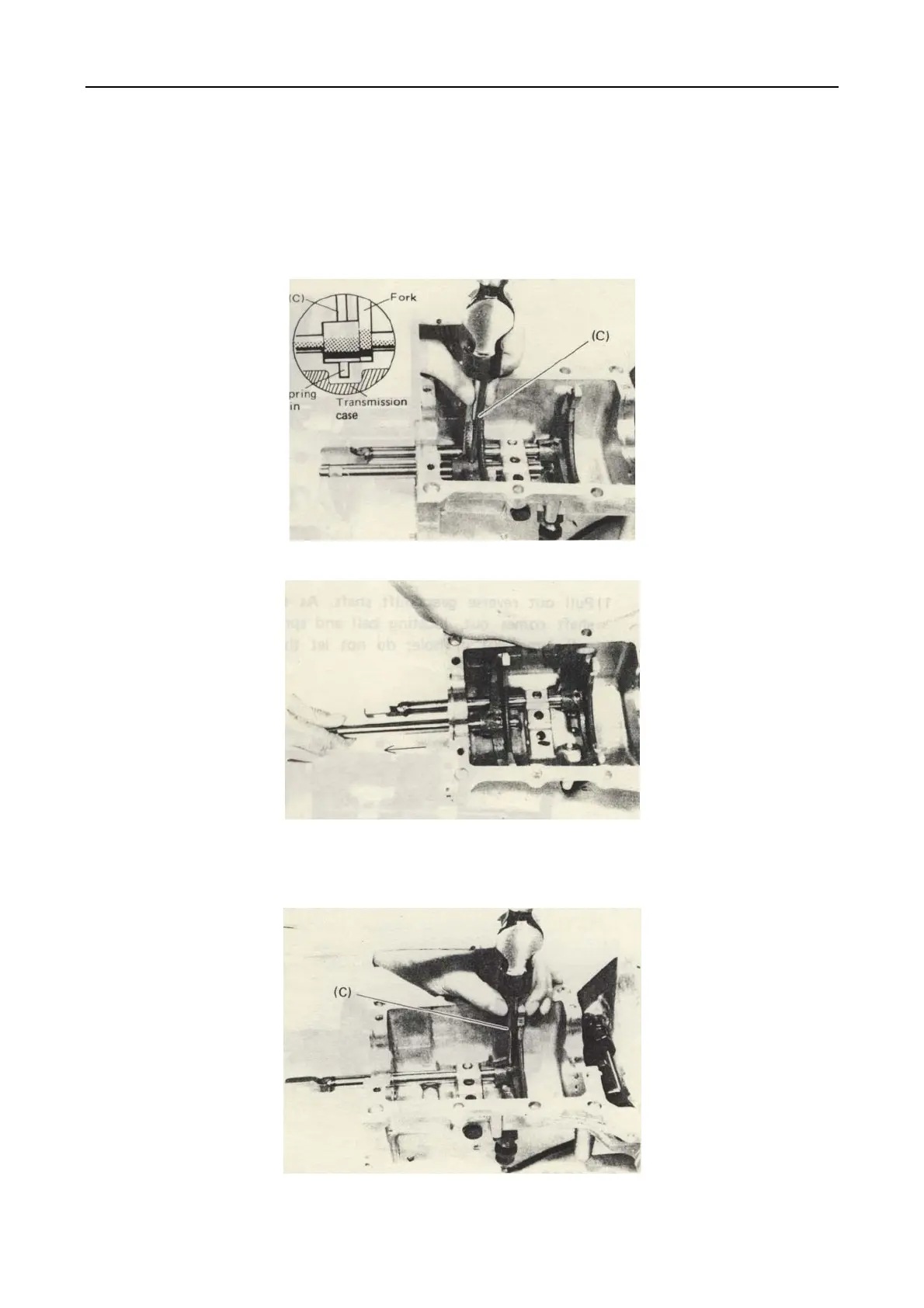

Fig.．13-25
Fig.．13-26
3) Drive yoke pin out of high speed gear shift fork as in above step 2)and pull out fork shaft and
fork．
Fig.．13-27
138
