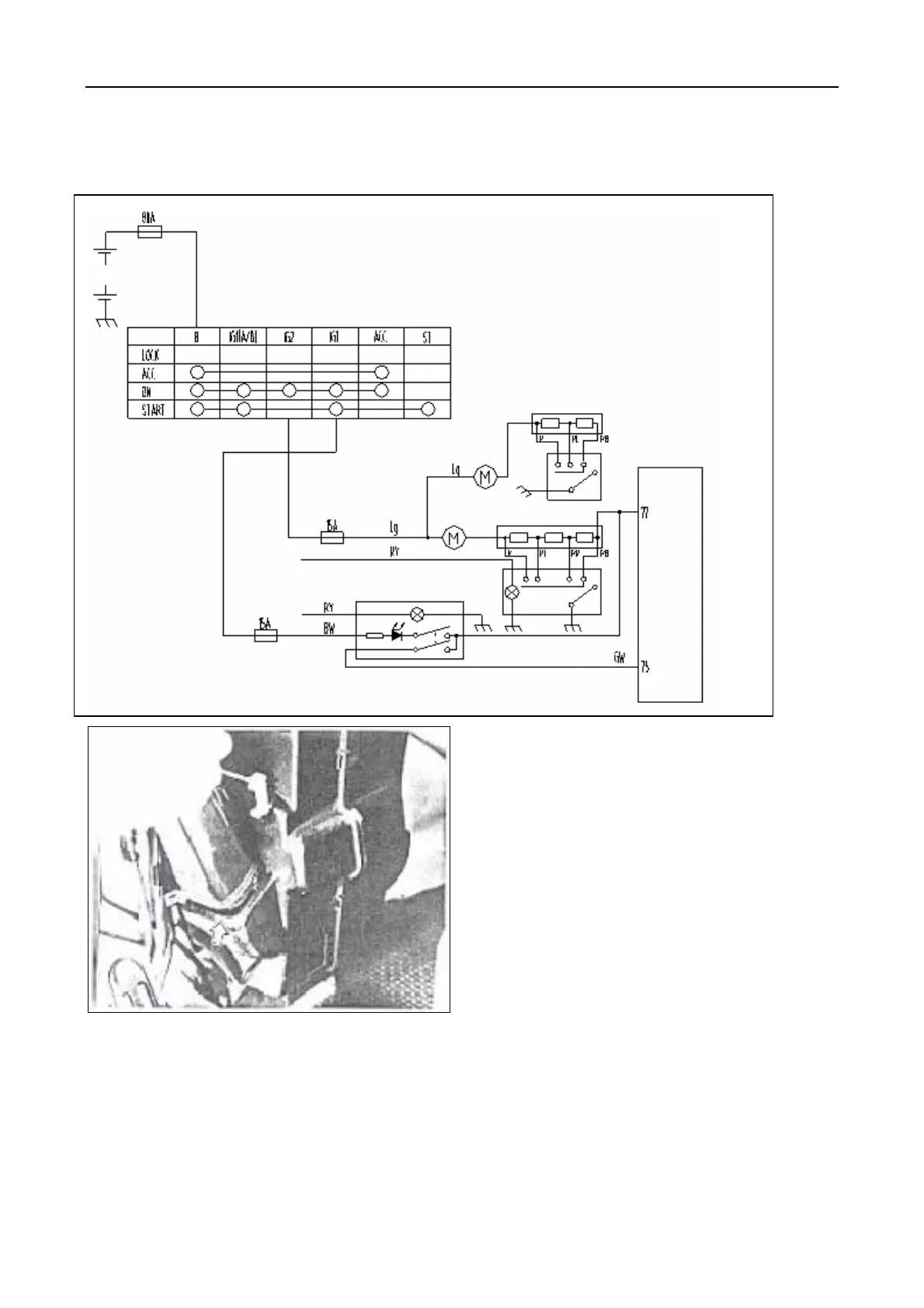

CHANGHE FREEDOM SERVICE MANUAL HEATER AND AIR CONDITIONING
WIRING CIRCUIT
Battery
Ignition switch
Resistor
Heater fan switch
Top evapmotor motor
Heater motor Resistor
Heater fan switch
A/C switch
Ignition sys
REMOVAL
FAN MOTOR RESISTOR
1）Disconnect battery(-)cable at battery.
2）Disconnect blower motor resistor lead wire
at coupler.
3）Remove heater blower motor resistor.
323
