CHANGHE FREEDOM SERVICE MANUAL GEAR SHIFTING CONTROL
MAINTENANCE SERVICE
Select Cable Adjustment
NOTICE：
●Before adjustment, check to make sure
that each greasing point as indicated in p. 5-8
of this section is greased properly and that
bush and other parts are not worn. Correct as
necessary.
●Gear shift cable is not adjustable.
If gear shift control lever can be shifted from
neutral（vertical）position to and between 3rd and
4th position smoothly, gear select cable is
well-adjusted.
If smooth shifting from neutral position to and
between 3rd and 4th position is not obtained,
adjust select cable as follows.
1）Tilt control lever a little toward LOW and
2nd position side (selected position)from neutral
position. If it can be shifted smoothly to and
between 3rd and 4th positions from there, loosen

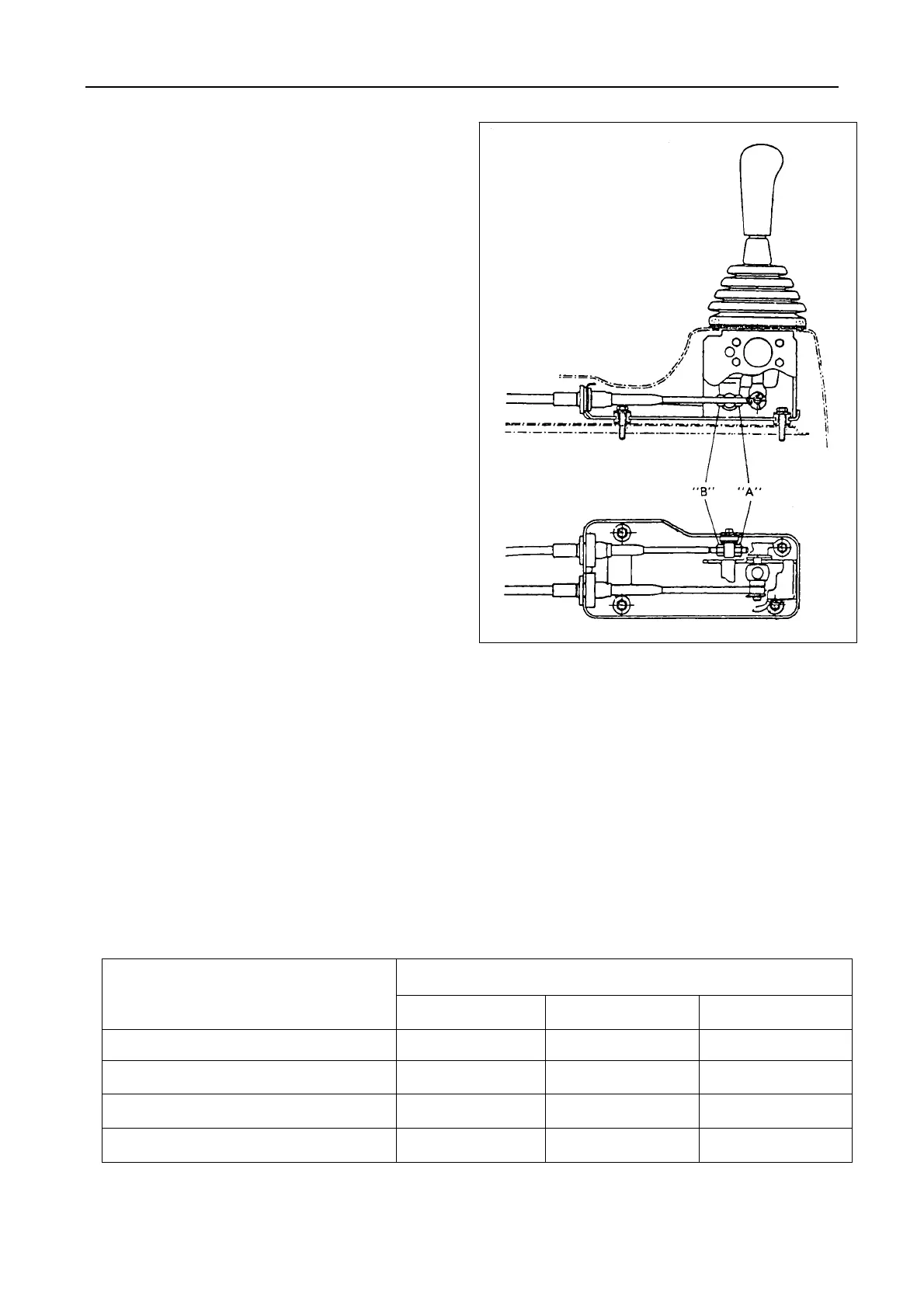

select cable adjusting nut “A” shown in figure at
the right and tighten nut “B” until control lever can
be shifted smoothly to and between 3rd and 4th
position from neutral position.
2）Tilt control lever a little toward REVERSE
side (selected position) from neutral position. If it
can be shifted smoothly to and between 3rd and
4th positions from there, loosen select cable
adjusting nut “B” and then tighten nut “A” until
control lever can be shifted to and between 3rd
and 4th positions smoothly from neutral position.
TIGHTENING TORQUE
Tightening tirque
Fastening Parts
N.m kg-m lb-ft
1. Reverse shift limit bolt 18—28 1.8—2.8 13.5—20.0
2. Reverse check ball screw 8—14 0.8—1.4 6.0—10.0
3. Gear select shaft lever nut 13—20 1.3—2.0 9.5—14.0
4. Gear shift lever case bolt 18—28 1.8—2.8 13.5—20.0
170
