CHANGHE FREEDOM SERVICE MANUAL PROPELLER SHAFT
DISASSEMBLY
Disassemble on propeller shaft fork side

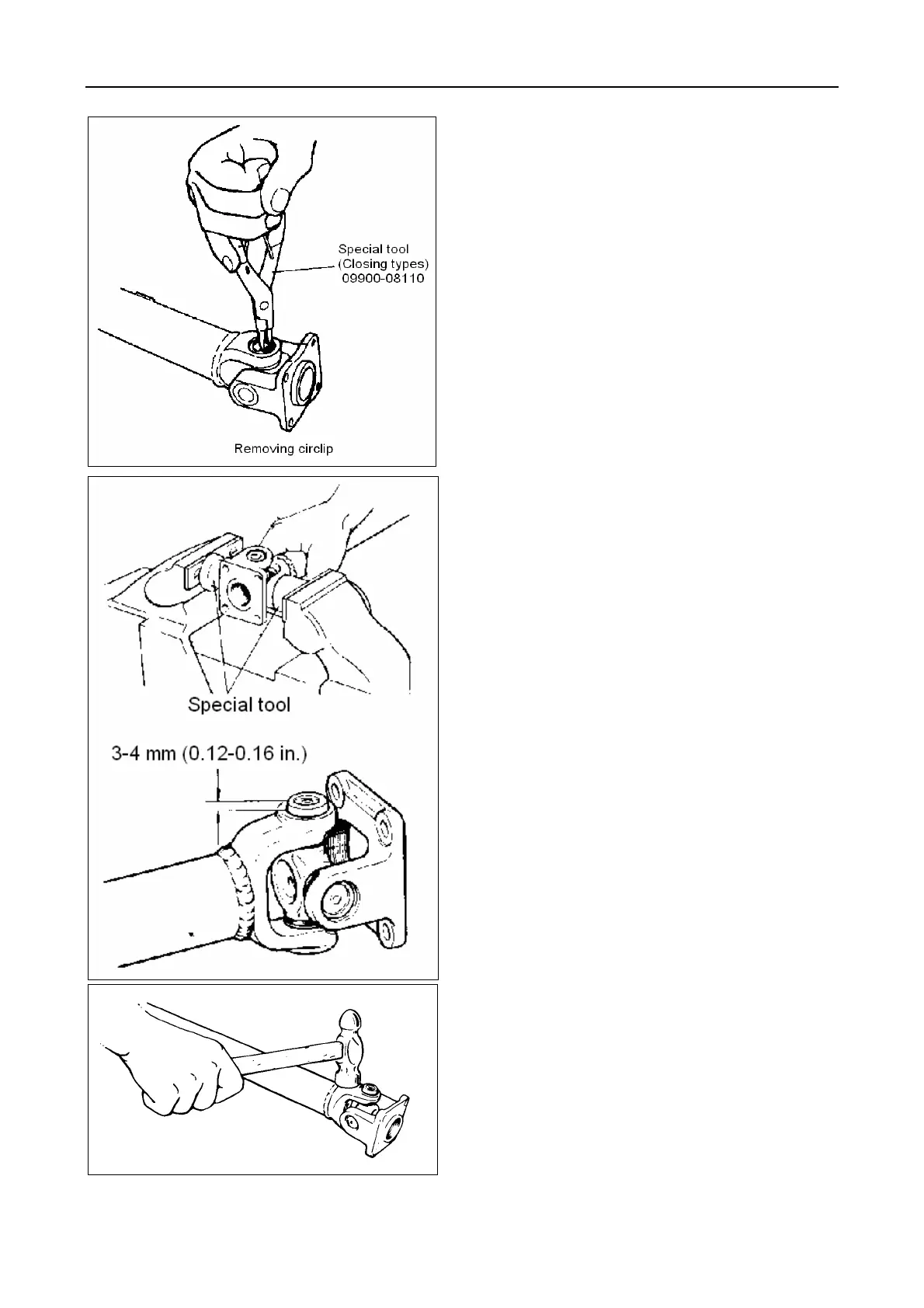

1) Remove circlips by using snap ring pliers
（special tool）
．
2) Using universal joint assembler (Special
tool 09926-48010), push spider bearing race out
3-4 mm (0.12-0.16 in) from shaft yoke race．
3) Tapping yoke with a hammer, completely
remove bearing race.
4) Take out bearing race on the other side in
the same way as in 2) and 3).
Disassembling on flange yoke side
Push out bearing race on flange yoke side as
described in 1) and 2), and then, holding bearing
race in a vice, tap flange yoke and take out
race． (Refer to the below figure．) Remove
bearing race on the opposite side in the same
way．
174
