CHANGHE FREEDOM SERVICE MANUAL TRANSMISSION

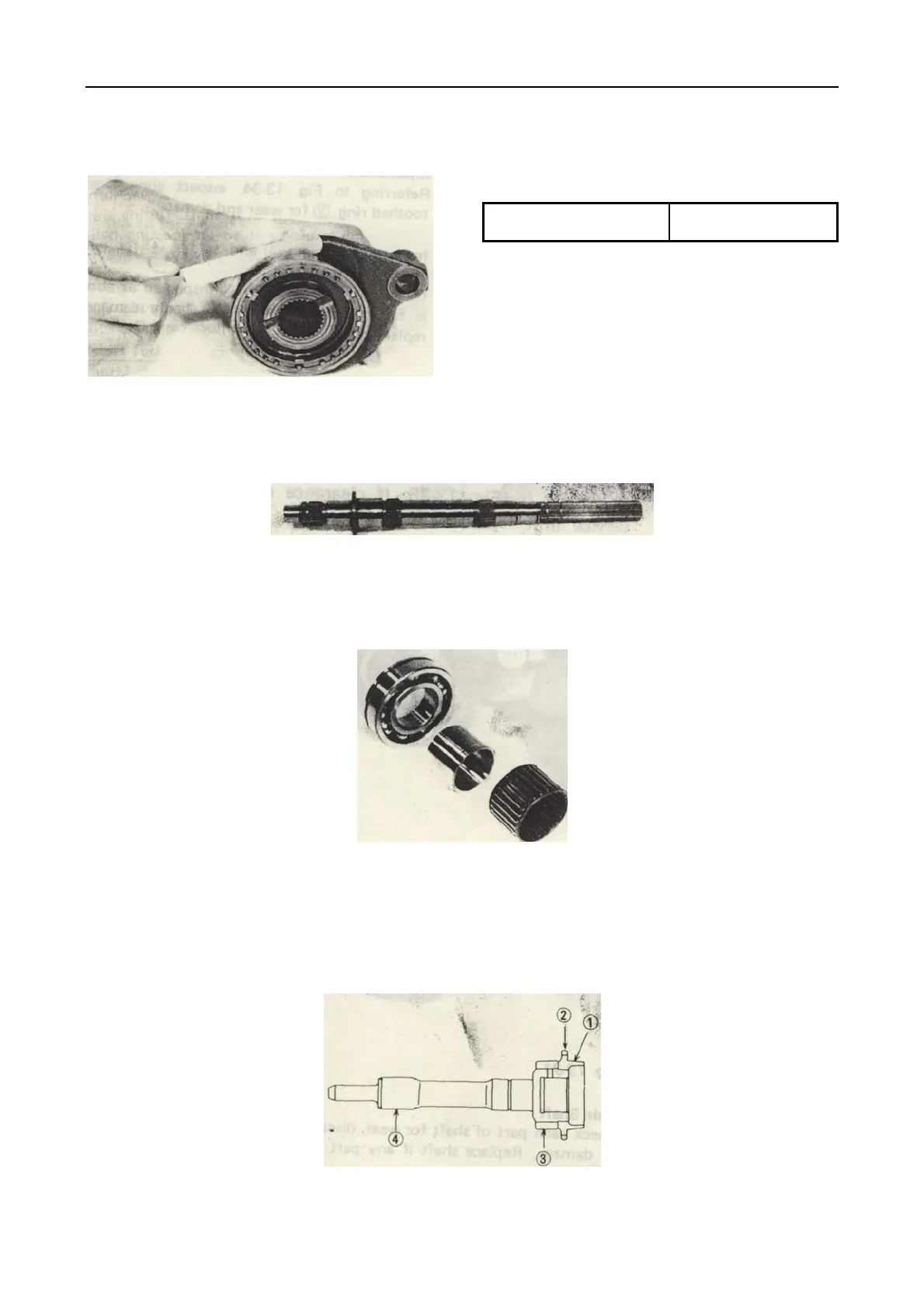

Shift Forks and Sleeves
Check contact surfaces for wear or damage Measure clearance between fork and sleeve．
Maximum clearance 1.0 mm (0.039 in.)
Fig.．13-31
Main Shaft
Check each part Of shaft for wear．Discoloration or damage．Replace shaft if any part is found
Defective.．
Fig.．13-32
Bearings and Bushes
Check each part for wear, damage or discoloration. With ball bearing, check to ensure that it rotates
smoothly and it does not make noise. Replace if found defective.
Fig.．13-33
Input Shaft
Referring to Fig.1 3-34，inspect cone and toothed ring for wear and damage①② ．Inspect gear teeth
and splines for wear and damage③④ ．
If any part Of input shaft inspected as above is found excessively worn 0r badly damaged．replace
shaft．
Fig.．13-34
140
