(13)Enable vision: selected means open vision positioning, when mounting IC open this
function can increases its precision.
(14)Coordinate Set: used for component coordinate X and Y by nozzle or upside camera,
details please refer to below.
6.1.1.2.Coordinate Setting
Screen shown as below, please note when the machine need location it will be pop
up this page.

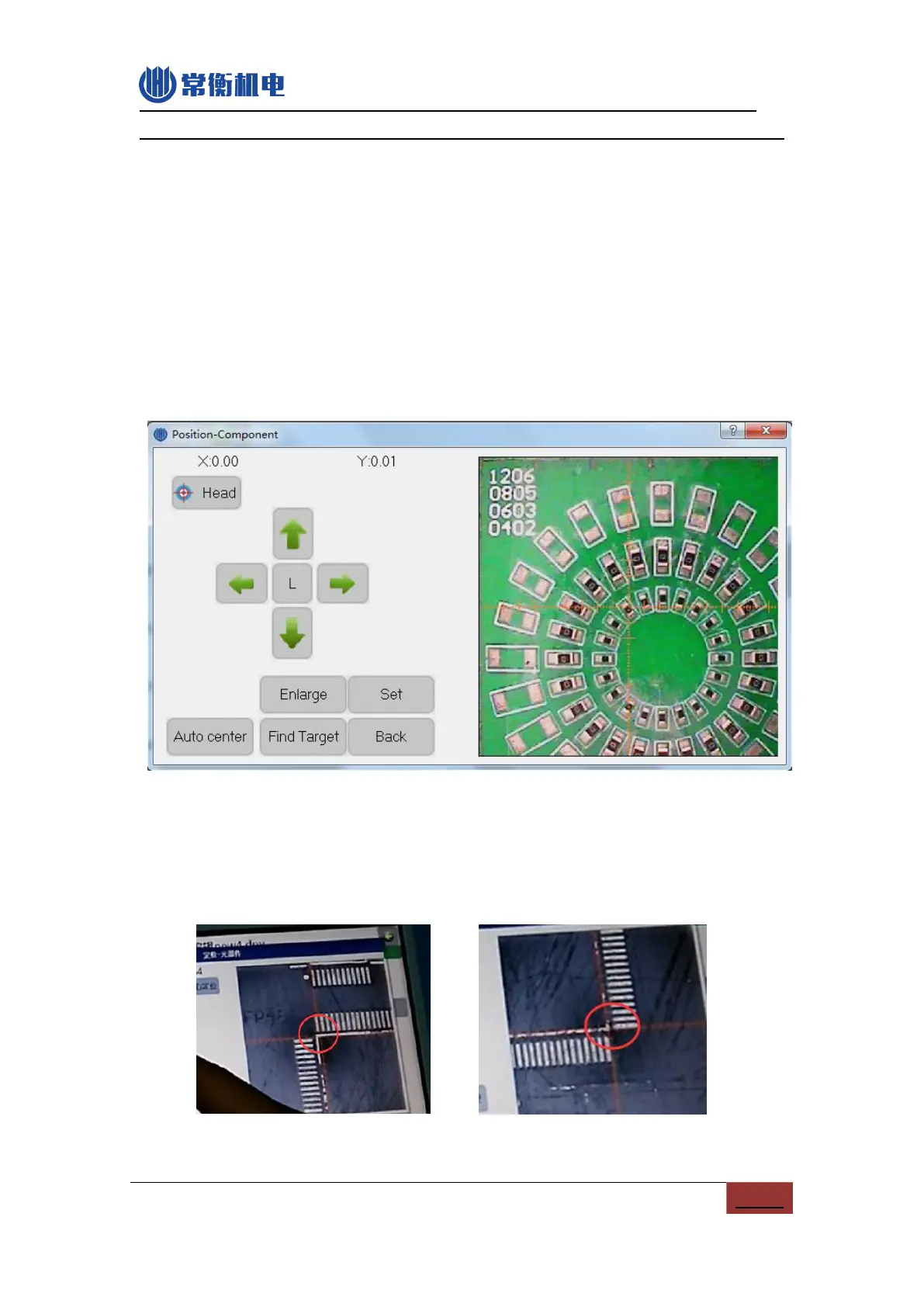

Figure.6- 4
(1) Coordinate: the window left upside display the coordinate after movement
comparing with previous coordinate.
(2) Machine head/Vision: exchange nozzle positioning and vision positioning, we
suggest use vision positioning, nozzle position not that accurate.
Left-up corner right-down corner
To Next Page
