5.5 Connecting the modules to the electrodes

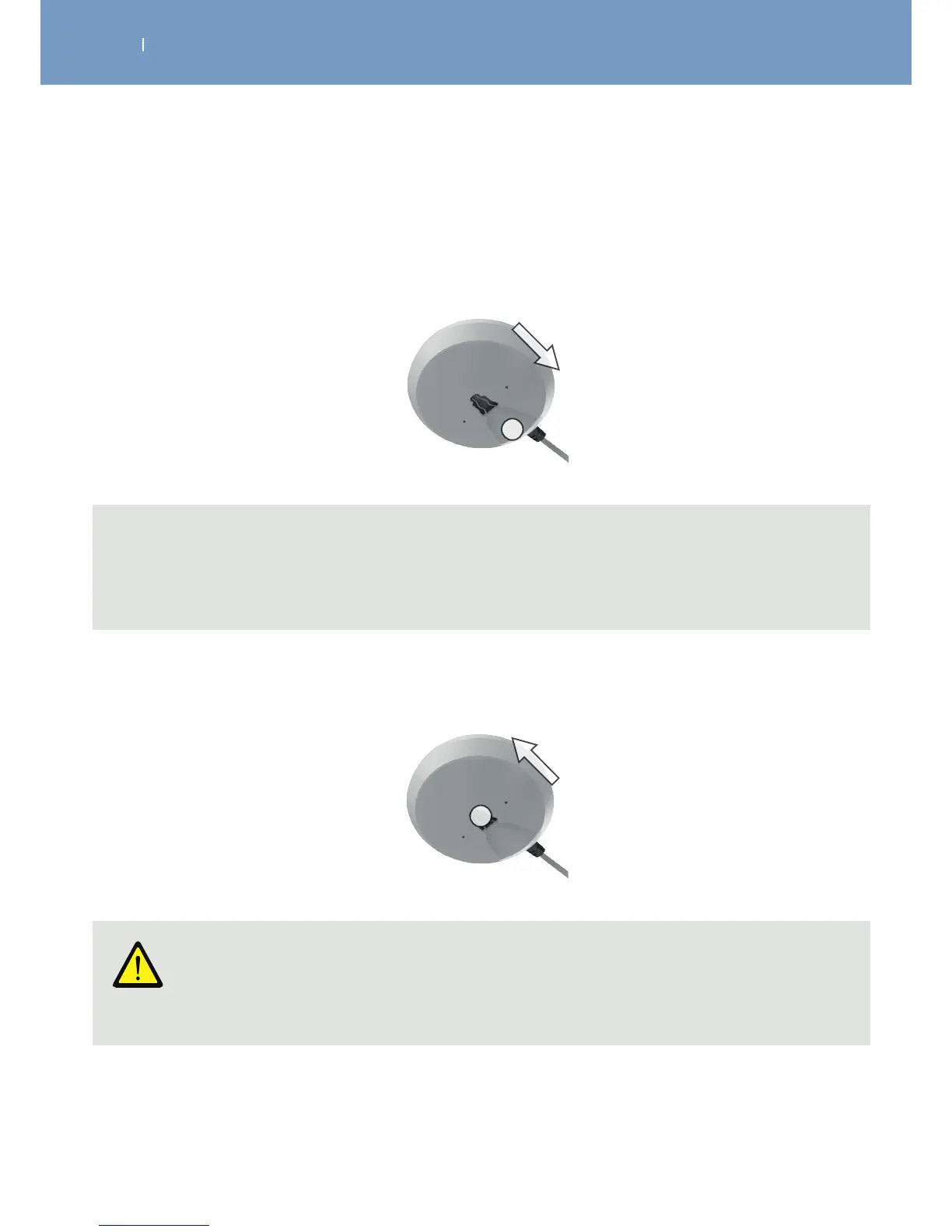

Once the electrodes are stuck to the skin of the patient, fix the pods by sliding them onto the electrode
snap until it clicks into place.
Note
The insertion direction marked by:
- the On/O button on the main pod
- a small vertical line on the housing of the other pod.
To remove the modules from the electrode simply make the opposite movement.
Caution!
Equipment damage -
Pulling the pods without respecting their pulling direction can damage the attachment
system.
A stimulation module consists of two poles:
• A positive pole (+) = the pod with an illuminated button
• A negative pole (-) = the other pod of the module
A separate electrode must be connected to each of the two pods.
