Model 55,75,90, & HMC FLEX-AUGER Installation
19
MA1702D
6.Now add Clamps or Retainers (as ordered) to the Outlet Assembly to prevent it from sliding and/or rotating
on the pipe. Clamps will prevent the Outlet Assembly from sliding or rotating on the pipe. Retainers can be
used in two different ways. Retainers may prevent the Outlet Assembly from sliding or rotating on the pipe,
or prevent the Outlet Assembly from sliding on the pipe, but allow it to rotate. Figure 18 shows the three
different methods for holding the Outlet Assembly in place.
If Clamps are used, place the Clamps on the Outlet Assembly as shown and tighten.
When using the Retainers, for a completely locked Outlet Assembly, insert the tabs on the Retainers into the
notches on the Outlet Top when gluing the Retainers in place with PVC Cement. With a rotating Outlet
Assembly, glue the Retainers in place with the tabs pointing away from the Outlet Top.
Item Description
1
Outlet Assembly using Clamps (non-sliding, non-rotating)
2
Outlet Assembly using Retainers (non-sliding, non-rotating)
3
Outlet Assembly using Retainers (non-sliding, rotating)

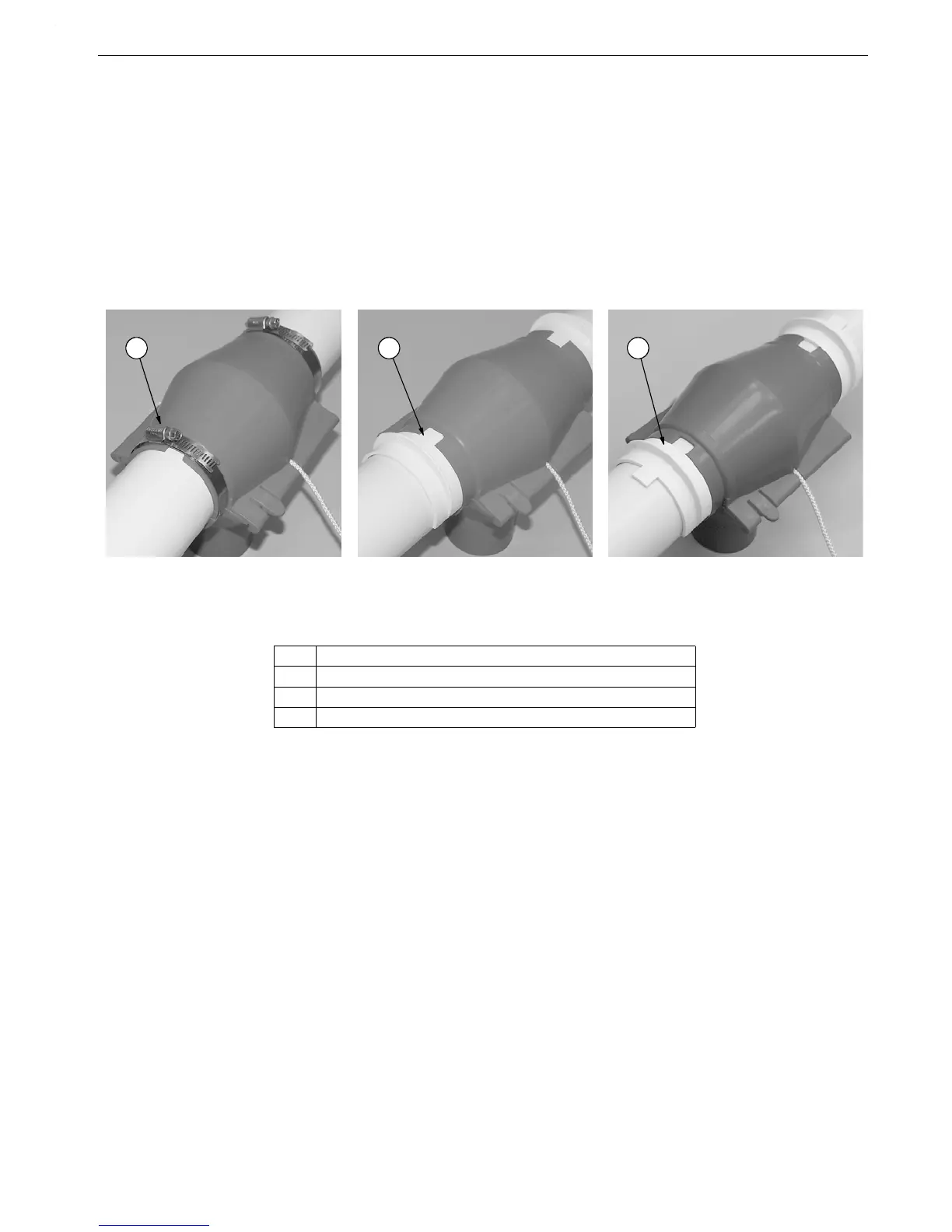

Figure 18.Installing the Retainers on the Outlet Assembly
