Chrysler Pacifica CS 2004 - Data Link Connector - Black 16 Way

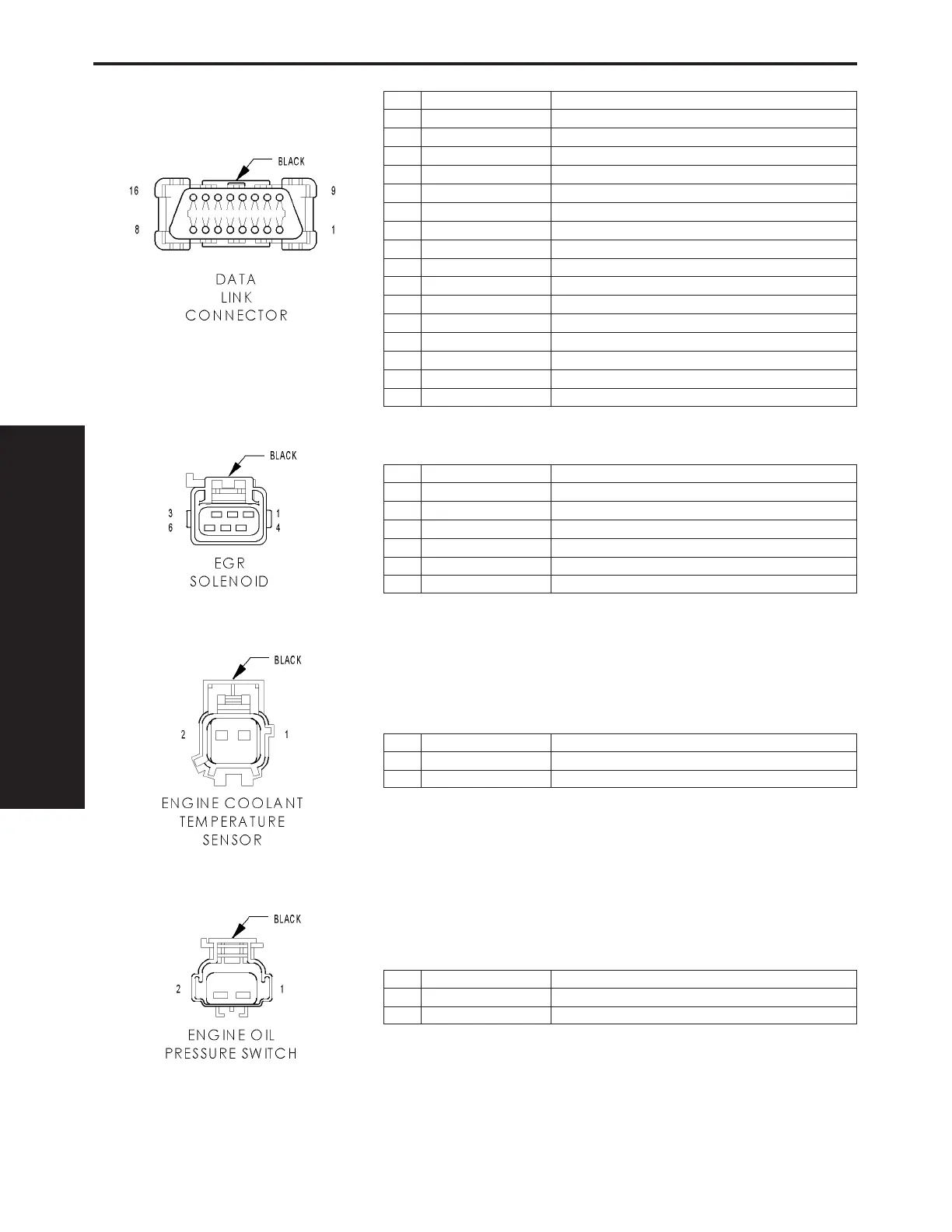

DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT GROUND
6- -
7 D21 20WT/GY SCI TRANSMIT (PCM)
8- -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 D24 20WT/YL FLASH ABS
11 - -
12 D20 20WT/LG SCI RECEIVE (PCM)
13 - -
14 - -
15 D15 20BR/WT SCI TRANSMIT (TCM)
16 A105 20DB/RD FUSED B(+)
EGR SOLENOID - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 K34 20DB/LG EGR SIGNAL
2 F855 20PK/YL 5 VOLT SUPPLY
3 K900 20DB/DG SENSOR GROUND
4 Z335 18BK/WT GROUND
5- -
6 K35 18DB/VT EGR SOL CONTROL
ENGINE COOLANT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K2 18VT/OR ECT SIGNAL
ENGINE OIL PRESSURE SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G6 16VT/GY OIL PRESSURE SIGNAL
2- -
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
340
CONNECTOR PINOUTS
