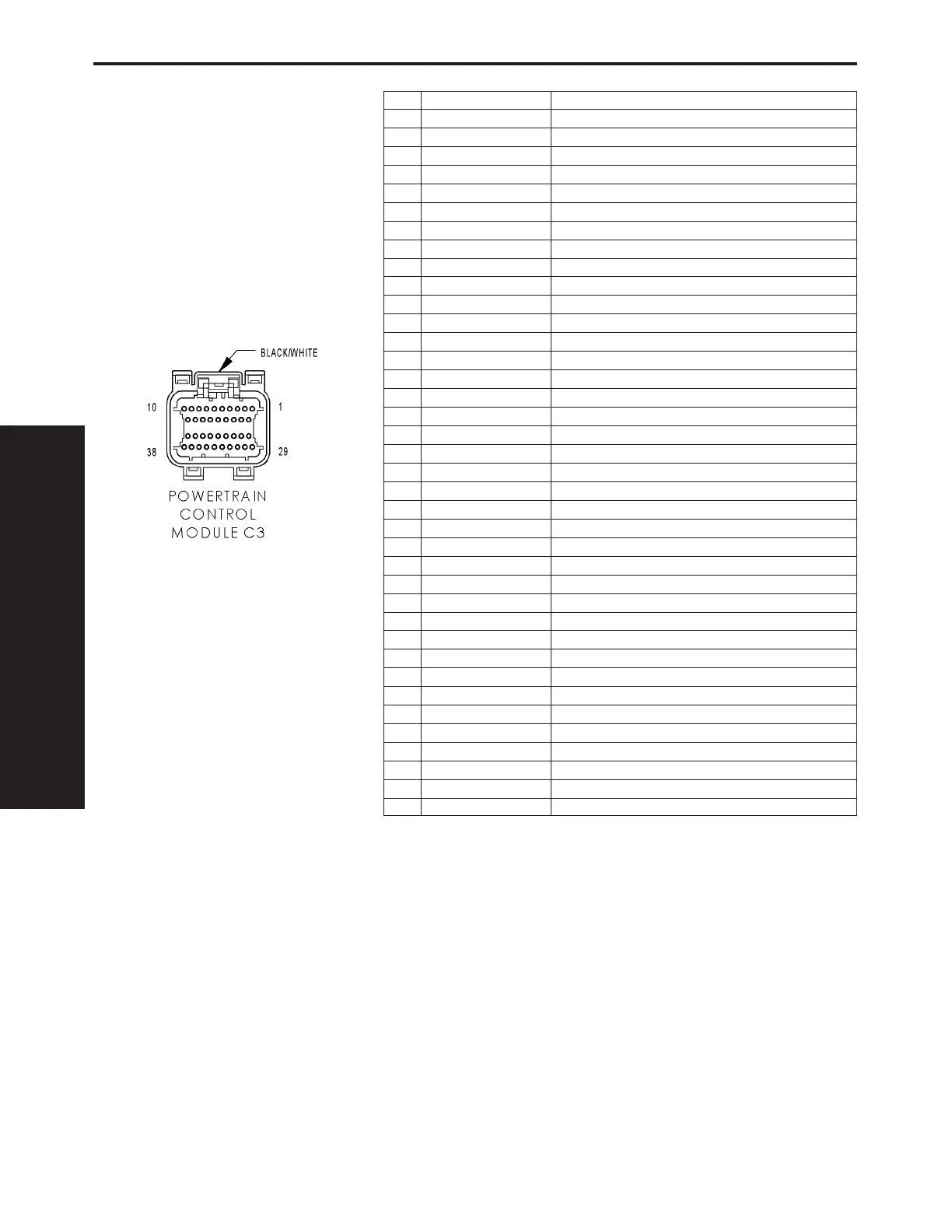

POWERTRAIN CONTROL MODULE C3 - BLACK/WHITE 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K51 18BR/GY AUTOMATIC SHUT DOWN RELAY CONTROL
4- -
5 V35 20VT/OR S/C VENT CONTROL
6 K173 20BR/VT RAD FAN RELAY CONTROL
7 V32 20VT/YL S/C SUPPLY
8 K106 20VT/LB NVLD SOL CONTROL
9 K299 18BR/OR O2 1/2 HEATER CONTROL
10 - -
11 C13 20LB/OR A/C CLUTCH RELAY CONTROL
12 V36 20YL/VT S/C VACUUM CONTROL
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
20 K52 20DB/WT EVAP PURGE CONTROL
21 - -
22 - -
23 B29 20DG/WT BRAKE SWITCH SIGNAL
24 - -
25 - -
26 T44 20YL/DG AUTOSTICK DOWNSHIFT SWITCH SIGNAL
27 T5 20DG/YL AUTOSTICK UPSHIFT SWITCH SIGNAL
28 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
29 K70 20DB/BR EVAP PURGE RETURN
30 - -
31 C18 20LB/BR A/C PRESSURE TRANSDUCER SIGNAL
32 K91 20DB/YL BATTERY TEMP SIGNAL
33 - -
34 V37 20VT S/C SWITCH SIGNAL
35 K107 20VT/WT NVLD SWITCH SIGNAL
36 - -
37 K31 20BR FUEL PUMP RELAY CONTROL
38 T752 20DG/OR STARTER RELAY CONTROL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
354
CONNECTOR PINOUTS
