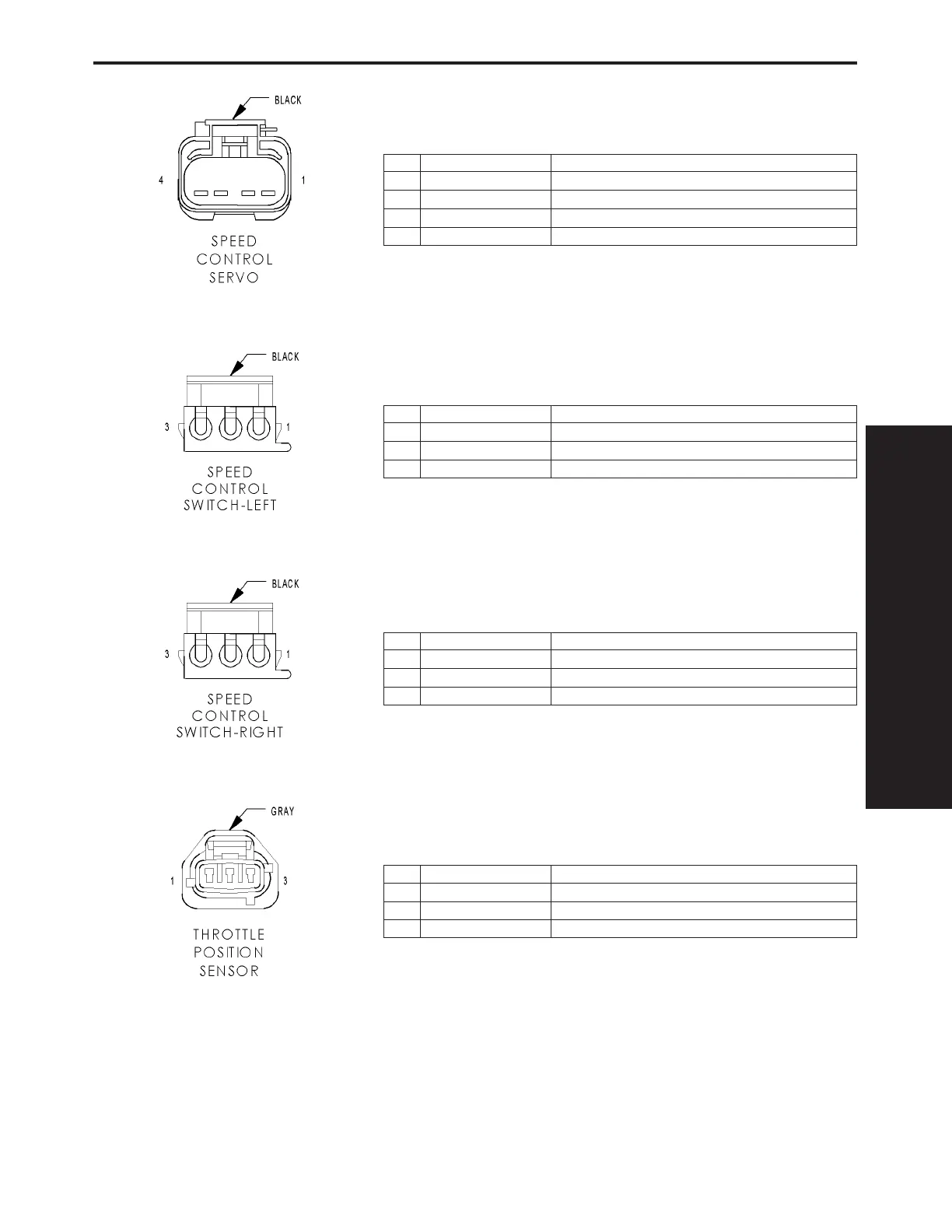

SPEED CONTROL SERVO - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 V36 20YL/VT S/C VACUUM CONTROL
2 V35 20VT/OR S/C VENT CONTROL
3 V30 20VT/WT SPEED CONTROL BRAKE SWITCH OUTPUT
4 Z155 18BK/LG GROUND
SPEED CONTROL SWITCH-LEFT - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z23 20BK/VT SPEED CONTROL SWITCH GROUND
2- -
3 V37 20VT S/C SWITCH SIGNAL
SPEED CONTROL SWITCH-RIGHT - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z23 20BK/VT SPEED CONTROL SWITCH GROUND
2- -
3 V37 20VT S/C SWITCH SIGNAL
THROTTLE POSITION SENSOR - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K22 18BR/OR TP SIGNAL
3 F855 20PK/YL 5 VOLT SUPPLY
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
357
CONNECTOR PINOUTS
