Chrysler Pacifica CS 2004 - Powertrain Control Module C4 - Black;Green 38 Way; Radiator Fan Motor No. 1 - Black 2 Way

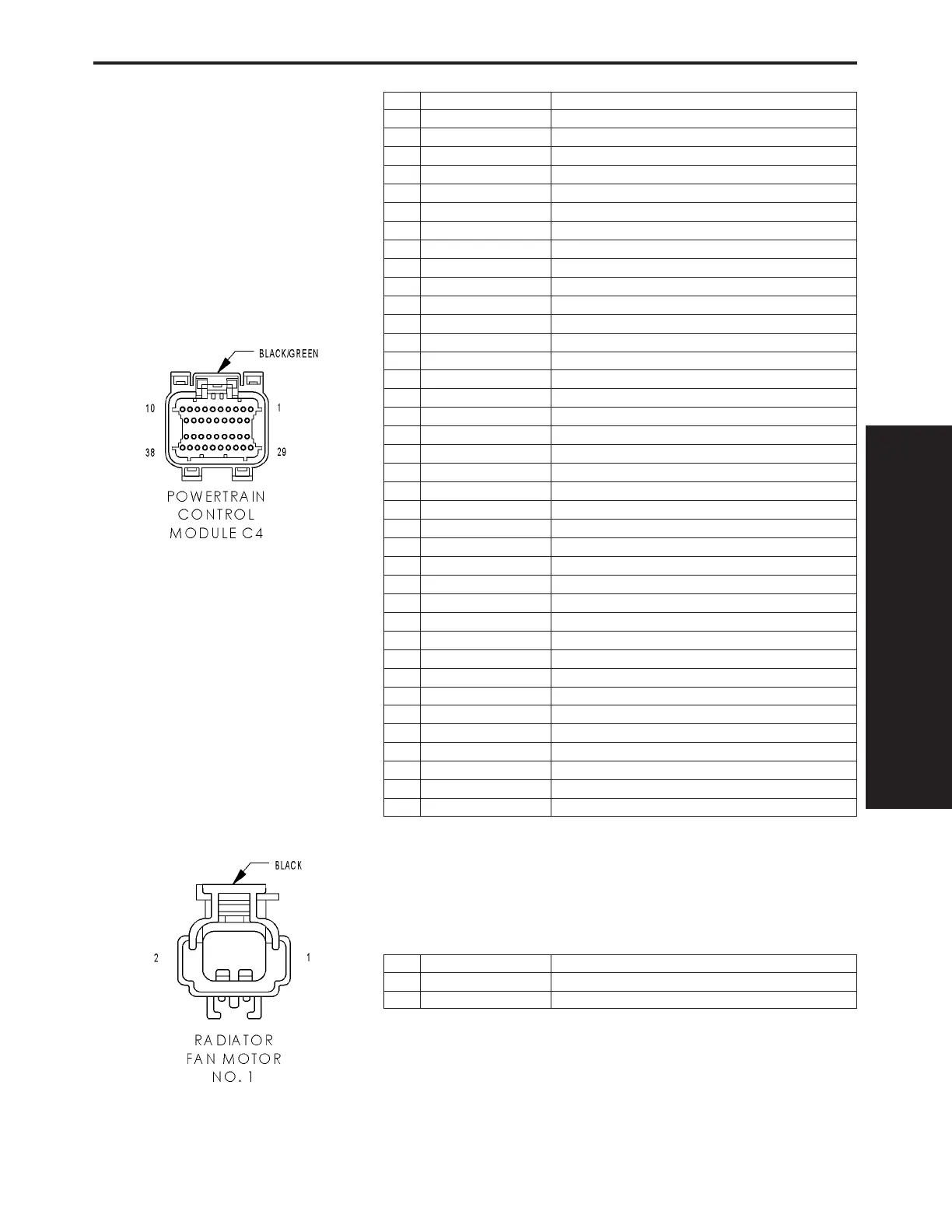

POWERTRAIN CONTROL MODULE C4 - BLACK/GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
2 T59 18YL/LB UNDERDRIVE SOLENOID CONTROL
3- -
4- -
5- -
6 T19 18DB/YL 2-4 SOLENOID CONTROL
7- -
8- -
9- -
10 T20 18WT/DG LOW/REVERSE SOLENOID CONTROL
11 - -
12 - -
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18LB/DG TRS T1 SENSE
16 T3 18DG/DB TRS T3 SENSE
17 - -
18 T15 20YL/BR TRANSMISSION CONTROL RELAY CONTROL
19 - -
20 - -
21 - -
22 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 - -
27 T41 18YL/DB TRS T41 SENSE
28 T16 16YL/OR TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
30 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
31 - -
32 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
33 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
34 T13 18DG/VT SPEED SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SENSE
38 T16 16YL/OR TRANSMISSION CONTROL RELAY OUTPUT
RADIATOR FAN MOTOR NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z823 12BK/DG GROUND
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
355
CONNECTOR PINOUTS
