Chrysler Pacifica CS 2004 - Fuel Injector No. 6 - Black 2 Way; Fuel Pump Module - Black 6 Way; Generator - Black 2 Way; Intake Air Temperature Sensor - Black 2 Way

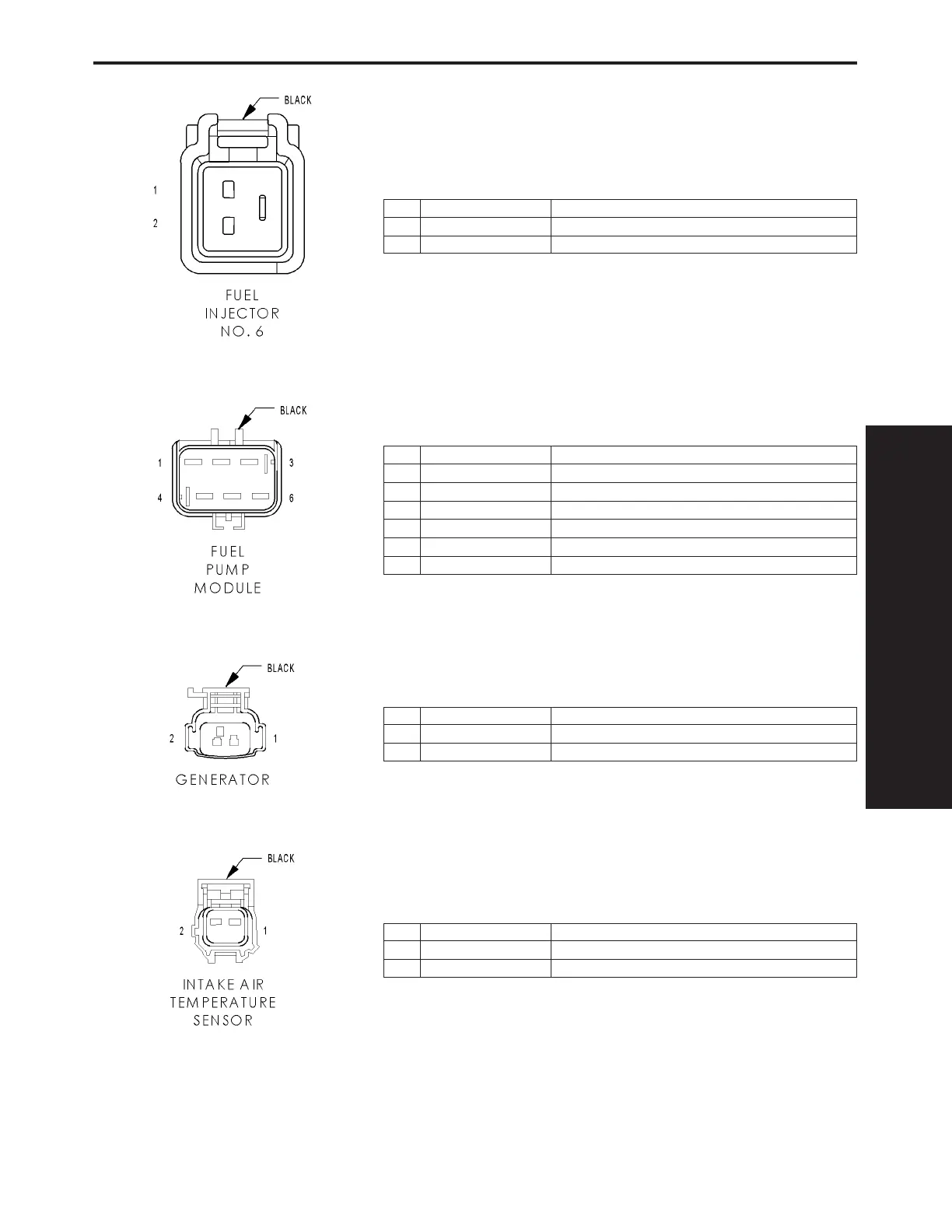

FUEL INJECTOR NO. 6 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K58 16BR/VT INJECTOR CONTROL NO. 6
FUEL PUMP MODULE - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 N1 16DB/OR FUEL PUMP RELAY OUTPUT
2 N4 20DB/YL FUEL LEVEL SENSOR SIGNAL NO. 1
3 N5 20DB/WT FUEL LEVEL SENSOR SIGNAL NO. 2
4- -
5 Z210 20BK/LB GROUND
6 Z201 16BK GROUND
GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z20 18BR/BK GROUND
2 K20 18BR/GY GEN FIELD CONTROL
INTAKE AIR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K900 20DB/DG SENSOR GROUND
2 K21 20BR/WT IAT SIGNAL
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
343
CONNECTOR PINOUTS
