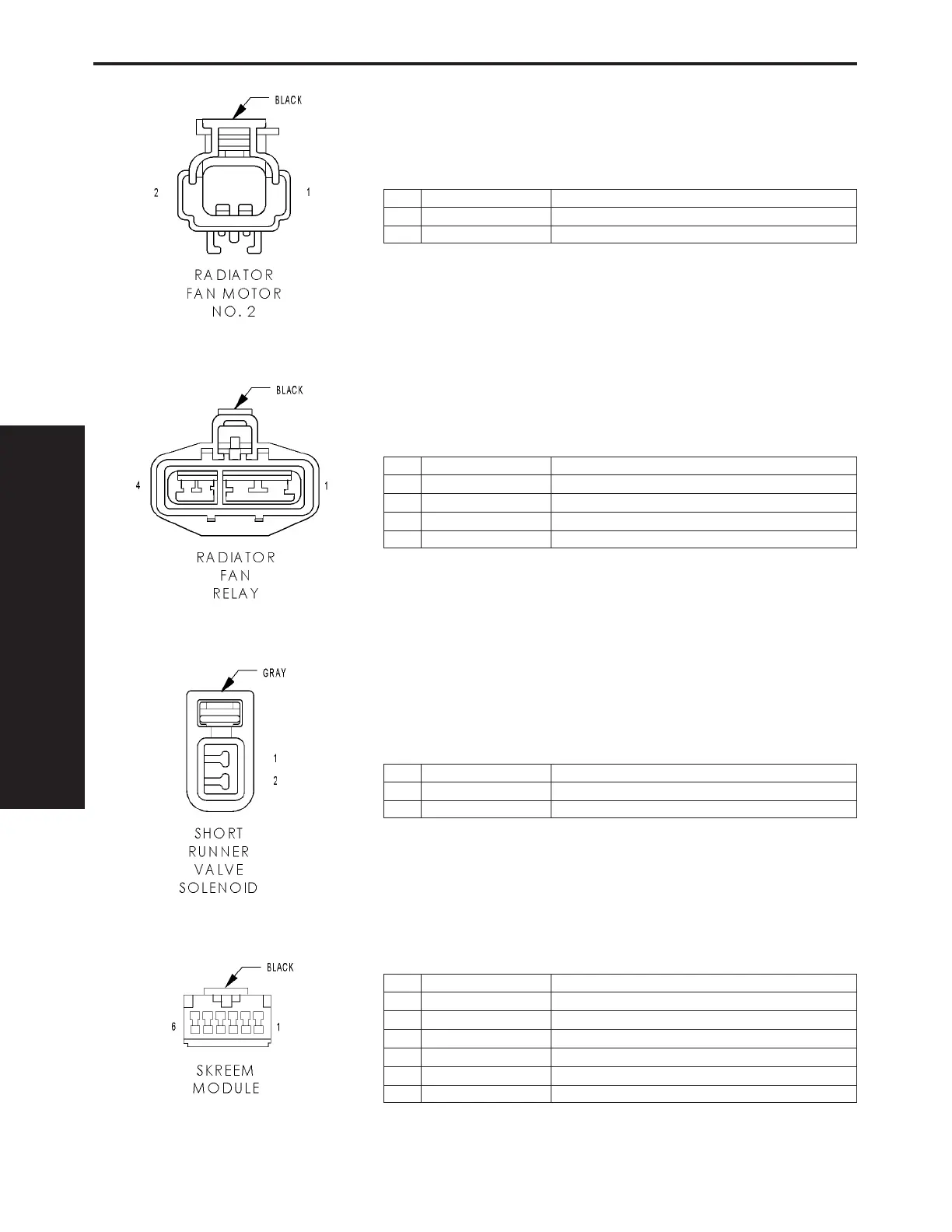

Chrysler Pacifica CS 2004 - Radiator Fan Motor No. 2 - Black 2 Way; Radiator Fan Relay - Black 4 Way; Short Runner Valve Solenoid - Gray 2 Way; Skreem Module - Black 6 Way

RADIATOR FAN MOTOR NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
RADIATOR FAN RELAY - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A112 12OR/RD FUSED B(+)
2 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
3 Z723 18BK/DG GROUND
4 K173 18BR/VT RAD FAN RELAY CONTROL
SHORT RUNNER VALVE SOLENOID - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K236 18DB/LG SRV SOL CONTROL
2 K342 16BR/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
SKREEM MODULE - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 F20 20PK/GY IGNITION SWITCH OUTPUT (RUN-START)
5 Z120 20BK/WT GROUND
6 A118 20RD/OR FUSED B(+)
