Chrysler Pacifica CS 2004 - Integrated Power Module C4 - Green 16 Way; Integrated Power Module C5 - Gray 26 Way

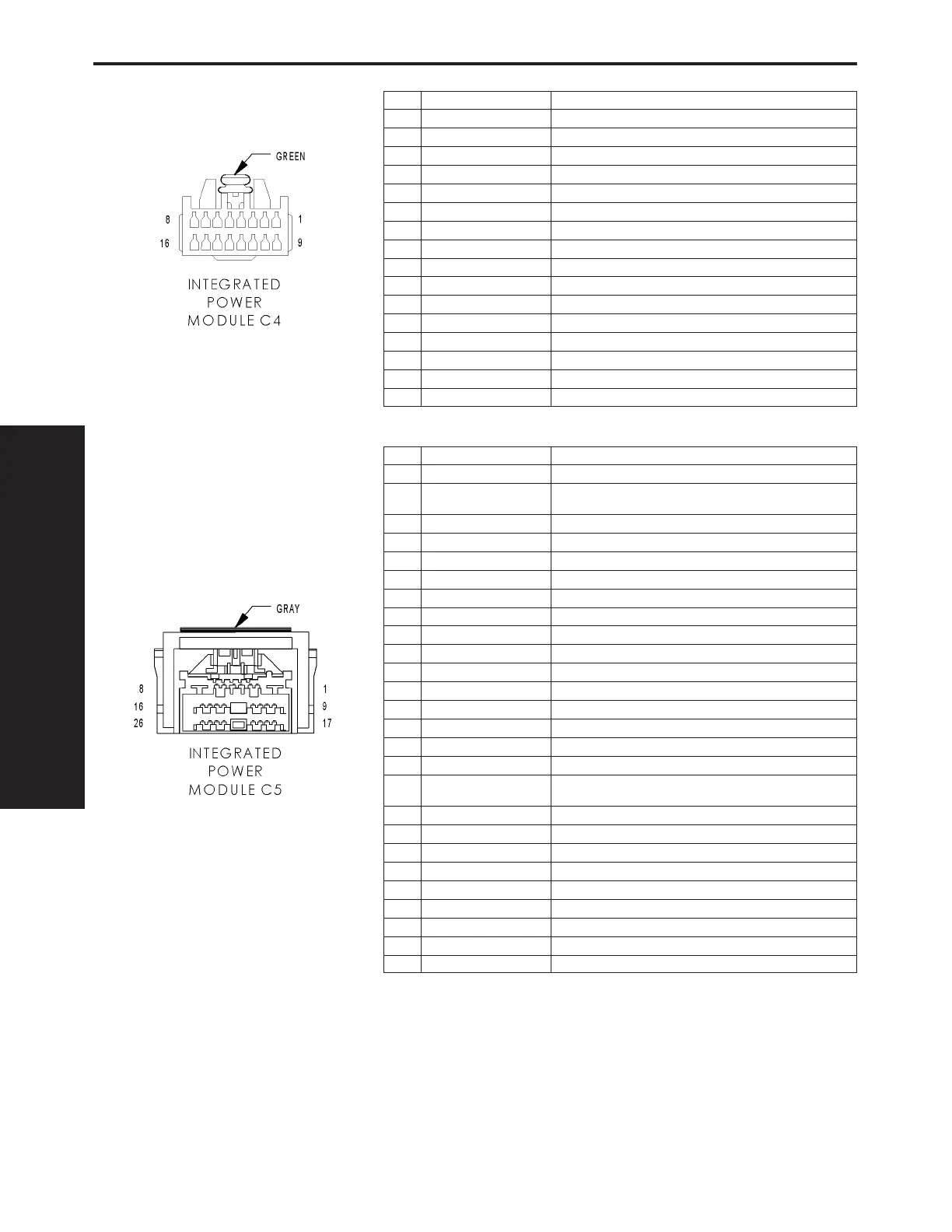

INTEGRATED POWER MODULE C4 - GREEN 16 WAY
CAV CIRCUIT FUNCTION
1 F100 20PK/VT ORC RUN DRIVER
2 X3 20DG/VT HORN SWITCH SENSE
3 W7 20BR/GY FRONT WIPER PARK SWITCH SENSE
4 T751 20YL IGNITION SWITCH OUTPUT (START)
5 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
6- -
7 F307 16LB/PK FUSED ACCESSORY RELAY OUTPUT
8 A214 18RD/LB FUSED B(+)
9- -
10 - -
11 D25 20WT/VT PCI BUS
12 - -
13 A118 20RD/OR FUSED B(+)
14 A114 20GY/RD FUSED B(+)
15 L72 20WT/OR RIGHT TAIL LAMP DRIVER
16 A215 18RD/LG FUSED B(+)
INTEGRATED POWER MODULE C5 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1- -
2 L89 18WT/YL (FOG
LAMPS)
LEFT FRONT FOG LAMP DRIVER
3 W1 18BR/TN WASHER FLUID LEVEL SWITCH SENSE
4- -
5 W10 18BR FRONT WASHER PUMP MOTOR CONTROL
6 L778 20WT/LB RIGHT FRONT SIDE MARKER LAMP DRIVER
7 L777 20WT/VT LEFT FRONT SIDE MARKER LAMP DRIVER
8- -
9- -
10 - -
11 - -
12 - -
13 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
14 Z118 18BK/YL GROUND
15 - -
16 L44 16TN/WT RIGHT LOW BEAM LAMP DRIVER
17 L90 18WT/OR (FOG
LAMPS)
RIGHT FRONT FOG LAMP DRIVER
18 L33 18WT/DG LEFT HIGH BEAM LAMP DRIVER
19 - -
20 - -
21 - -
22 L34 16WT/GY RIGHT HIGH BEAM LAMP DRIVER
23 X2 16DG/OR HORN RELAY OUTPUT
24 L77 20WT/BR LEFT FRONT PARK LAMP DRIVER
25 L43 18WT/DB LEFT LOW BEAM LAMP DRIVER
26 L78 20OR/WT RIGHT FRONT PARK LAMP DRIVER
C
O
N
N
E
C
T
O
R
P
I
N
O
U
T
S
348
CONNECTOR PINOUTS
