CHTC HT45 - Gauges and TFT Screen Displays

CONTROLS
14
Number Item
1
Washroom Emergency Label
This symbol appears when the emergency switch inside the WC
was pressed.
2
Washroom Working Indicator
This symbol appears when the WC is being used.
3
Washroom Water Level Warning
This symbol indicates that the WC water tankard level is low.
4
Disabled Pedal Indicator
5
Passenger Service Indicator
Table 1: Instrument Panel Face

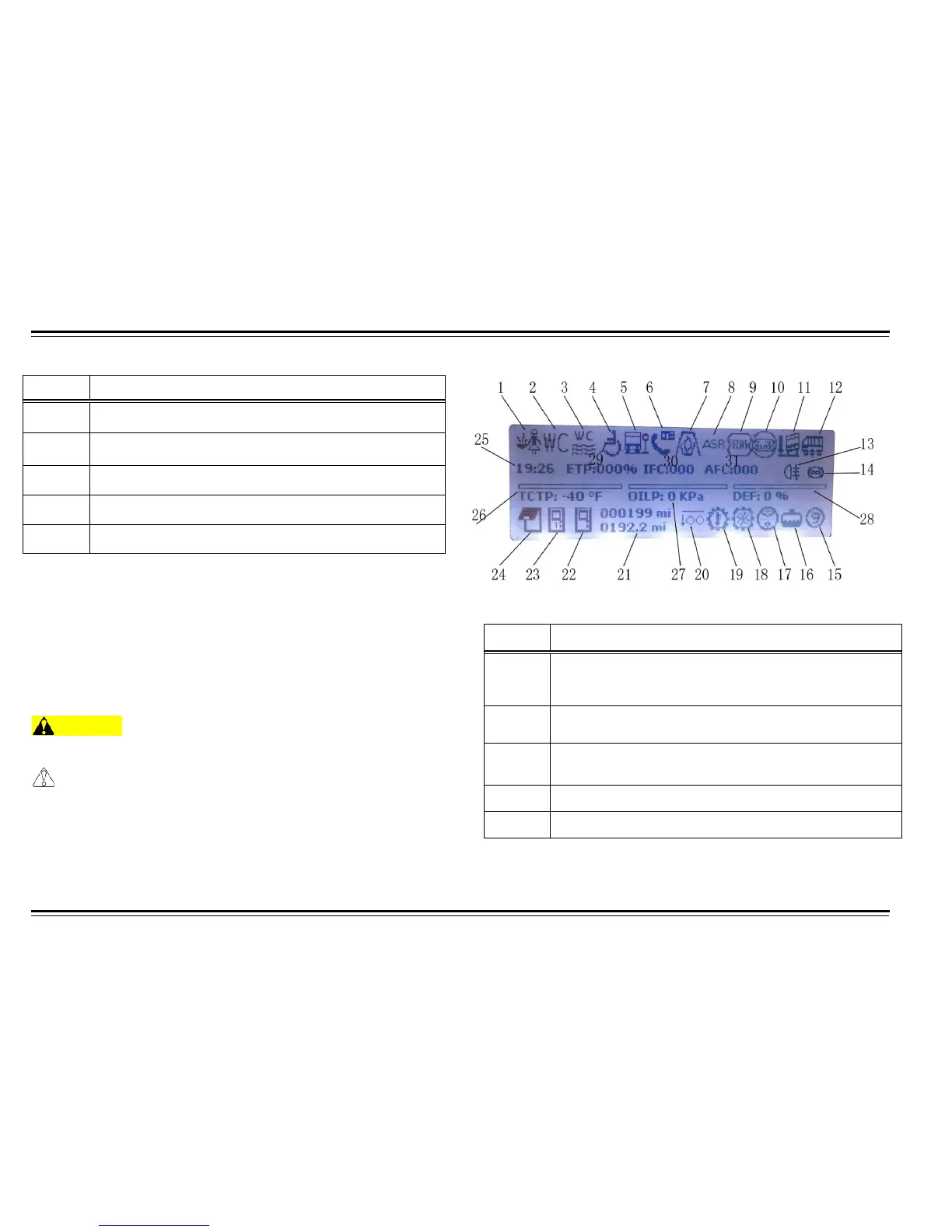

Normal TFT Screen
Table 2: Normal TFT Screen
WARNING
When the Stop Light is on, you must stop the motor coach and
solve the problem.
CAUTION
When you are welding on the motor coach, you must disconnect
the MultIC and IOUs from the power supply and disconnect the
batteries. Do not directly spill or spray any liquid on the MultIC and
IOUs. Do not allow objects to touch lens of MultIC.
Number Gauges
I
Engine RPM
II
Fuel Level
III
Speedometer
IV
Air Pressure 1
V
Air Pressure 2
