M-Series Control Panels and Their Functions

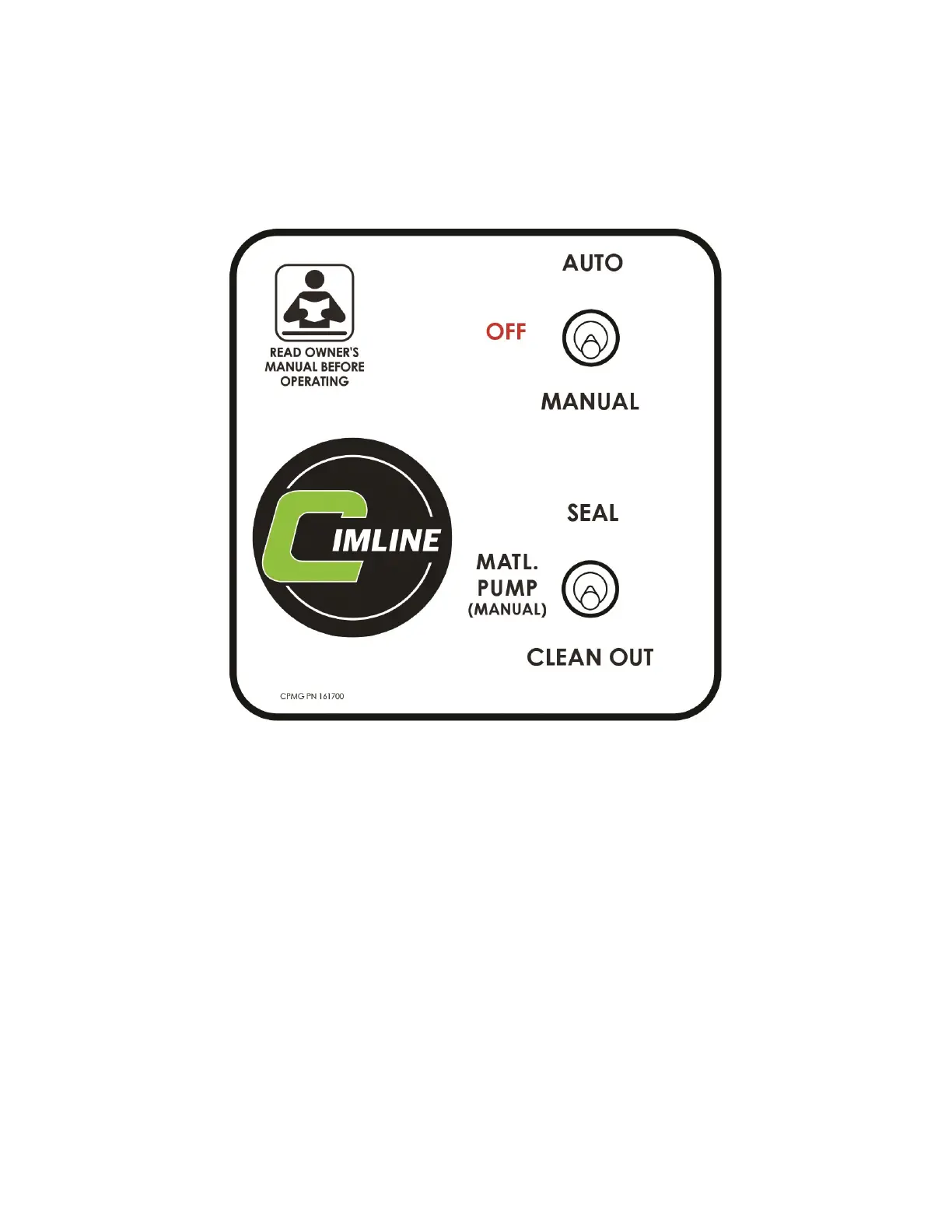

DUAL PUMP AUXILIARY CONTROL PANEL (M4 DUAL ONLY):
The dual pump auxiliary control panel is used to operate the secondary pump and hose controls.
OFF: Shuts down power to the auxiliary control panel. Keep the auxiliary control panel in the
“OFF” position when not in use (center position on the switch).
AUTO: All controls will be operated from the main control panel.
MANUAL: Overrides material pump controls from the main control panel and allows the
secondary material pump to work independent of the main material pump.
SEAL: When operating in MANUAL mode this option will allow the material pump to flow
material forward to wand.
CLEAN OUT: When operating in MANUAL mode this option reverses pump flow direction to
clean out material from the secondary hose, wand and internal plumbing returning the sealant
material to the material tank.
