CIMLINE M1 - M-Series Diesel Engine Components

54
* NOT SHOW, NO ENGINE ENCLOSURE MODEL
# PART # DESCRIPTION # PART # DESCRIPTION
2 425244 Plate, Engine Mount LH 21 406016 Generator Mounting Bracket
6 155143 Flexible Exhaust 22 156283 30A Alternator
7 156057 Hydraulic Pump(s) 23 155976 Exhaust Tube Weld
14 110947 Generator Belt A-29 24* 407981 Generator Guard Weld*
15 130431 Generator 25 152808 Pulley Single Belt
17 111372 Fan Belt 26 430104 Plate Radiator Bracket
19 422256 Short Gen. Adjust Bracket 27 423399 Plate Generator Stiffener
20 100512 Muffler Clamp

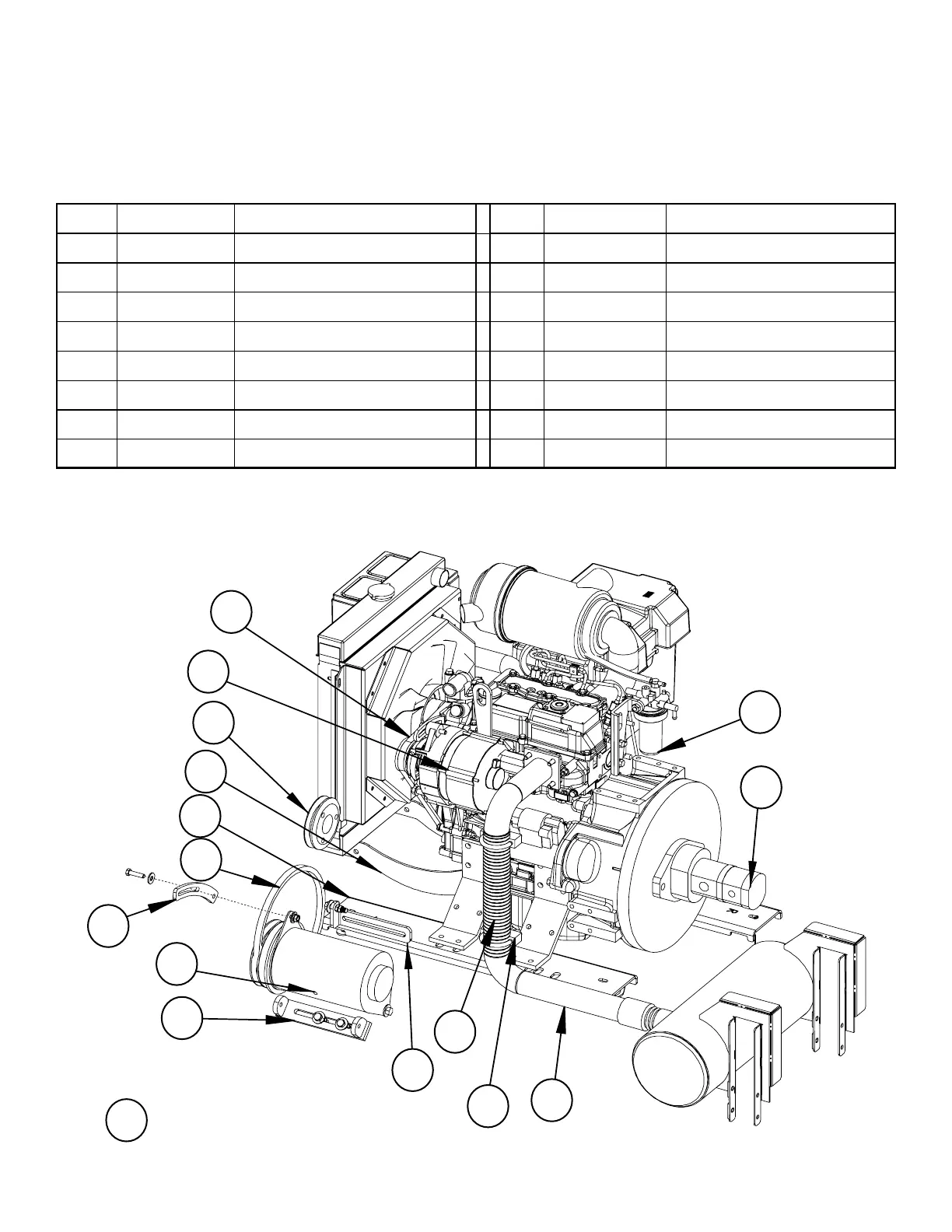

M-Series Diesel Engine Components
See the included engine manual for additional engine component diagrams and information.
17
22
25
26
2
14
19
15
21
20
27
6
23
7
18
24
