69
Agitator
Assembly

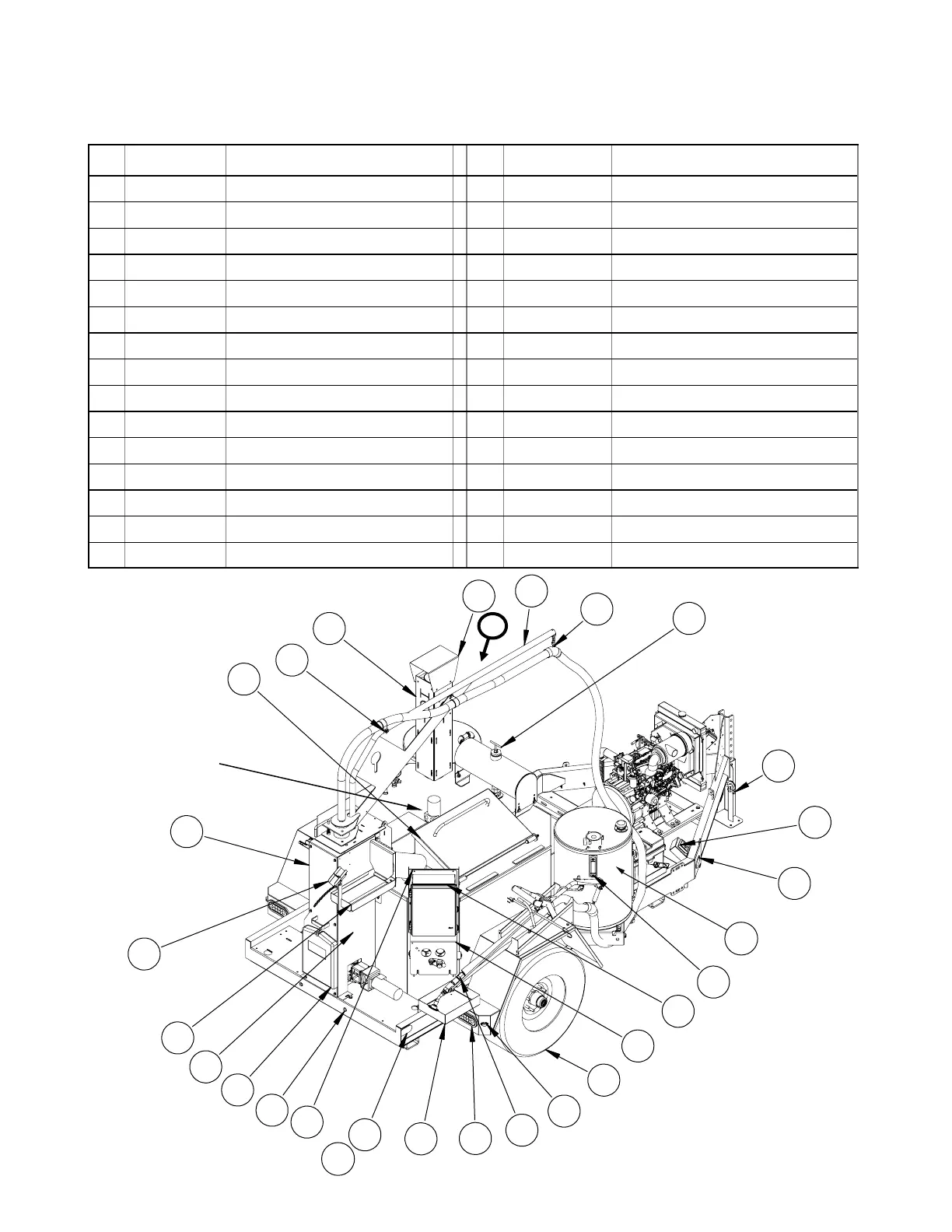

M-Series Miscellaneous Components and Parts
# PART # DESCRIPTION
# PART # DESCRIPTION
1 409758 Cabinet Panel Back
16 140709 Wheel - 235/80R16
2 404215 Loading Door
17 130374 Clearance Light - Red
3 155699 Hose Clamp - 2 In.
18 407861 Wand - Material 2012
4 429336 Plate - Side
19 130405 Grommet for Taillight
5 429335 Plate - Cap
20 130403 Taillight - Led Oval
6 409035 Boom Weld
21 427355 Plate - Catch Box
7 155272 Sleeve - Metal
22 150214 Reflector - Red 3 In.
8 404341 Dipstick - Melter
23 429594 Plate - Control Box
9 152664 Anchor Shackle W/Pin
24 130402 Clearance Light - Red
10 111108 LOFA Control Switch
25 154234 Pack - Manual Holder
11 150215 Reflector - Amber
26 409757 Cabinet Panel - RH
12 172618 Hydraulic Tank - Black
27 409116 Wand Cradle - Drip Tray
13 171631 Sight Gauge - 5 In.
28 427423 Plate - Cradle (2 Required)
14 130831S M Series Control Box
* 309-058-902 New Boom Update Kit
15 429900 Cover - Manifold
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26
27
28
3
