18
MATERIAL VAT
AIR SPACE
OIL
INSULATION

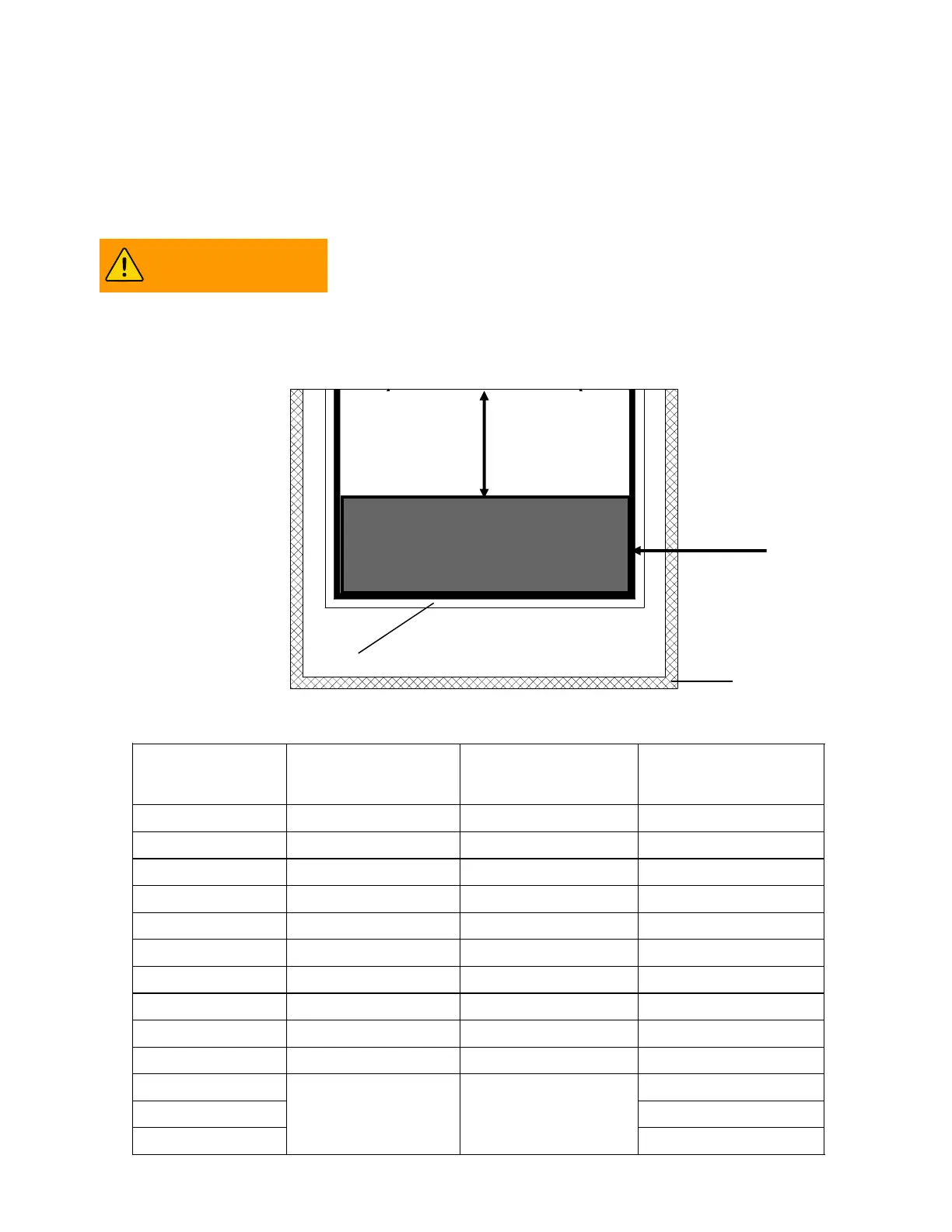

The amount of sealant material can be estimated by measuring the distance
from the top of the tank to the sealant material. (When Material is cold)
MATERIAL CAPACITY
(Tank cutaway)
To maintain safe operation of trailer while in transport,
do not fill tank more than 75% of total tank capacity.
M-Series Sealant Material Tank Capacity
WARNING
Distance To Material
M1
GALLONS
(6.8 Gallons/Inch)
M2
GALLONS
(9.7 Gallons/Inch)
M4 (M4 Dual)
GALLONS
(13.9 Gallons/Inch)
6” 170 (Max)
6.75 114 (Max) 162.7
7.5 108.8 156.1 305.9 (Max)
9 98.6 141.5 285
11 85 122.1 257.2
13 71.4 102.7 229.4
15 57.8 83.3 201.6
17 44.2 63.9 173.8
19 30.6 44.5 146
21 17 25.1 118.2
23 90.4
25 62.6
27 34.8
Material
Distance to
Material
