CIMLINE M1 - M-Series Melter Applicator Service Parts Kits

36

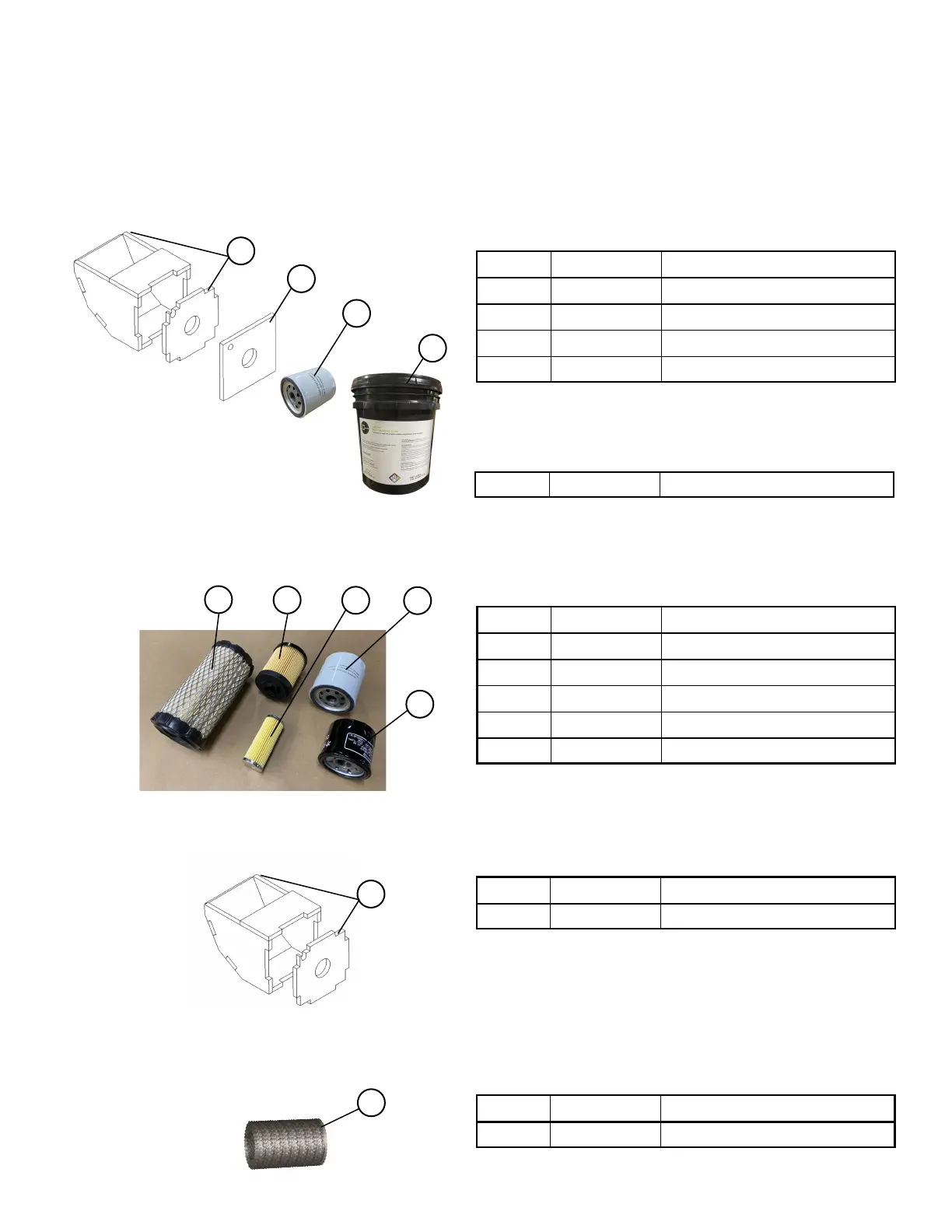

M-Series Service Parts Kits (Optional)
M-Series Maintenance Kit Part #409185 for M1 and M2
and Maintenance Kit Part #409186 for M4, M4 Dual and MA4
# Part # Description
1 403400 Burner Chamber Lining Kit
2 152487 Heat Chamber Insulation
3 170169 3” Fuel Filter
4 403910 5gal Heat Transfer Oil (6 Qty)
M-Series Burner Chamber Lining Kit Part #403400
# Part # Description
1 403400 Burner Chamber Lining Kit
M-Series Pump Packing Set Kit Part #120541
# Part # Description
1 120541 Pump Packing Set
1
2
3
4
1
1
M-Series Engine/Hydraulic Fluids Service Kit Part #406597
# Part # Description
1 111111 Engine Air Filter Element
2 170407 Hydraulic Return Filter Element
3 111457 Engine Fuel Filter Element
4 170169 3” Fuel Tank Filter
1 111337 Engine Oil Filter
1
2
3
4
5
4 403910 5gal Heat Transfer Oil (8 Qty)
Maintenance Kit Part #409186
Maintenance Kit Part #409185
The only difference between #409185 and #409186 is the
quantity of Heat Transfer Oil for the M4, M4 Dual and MA4.
