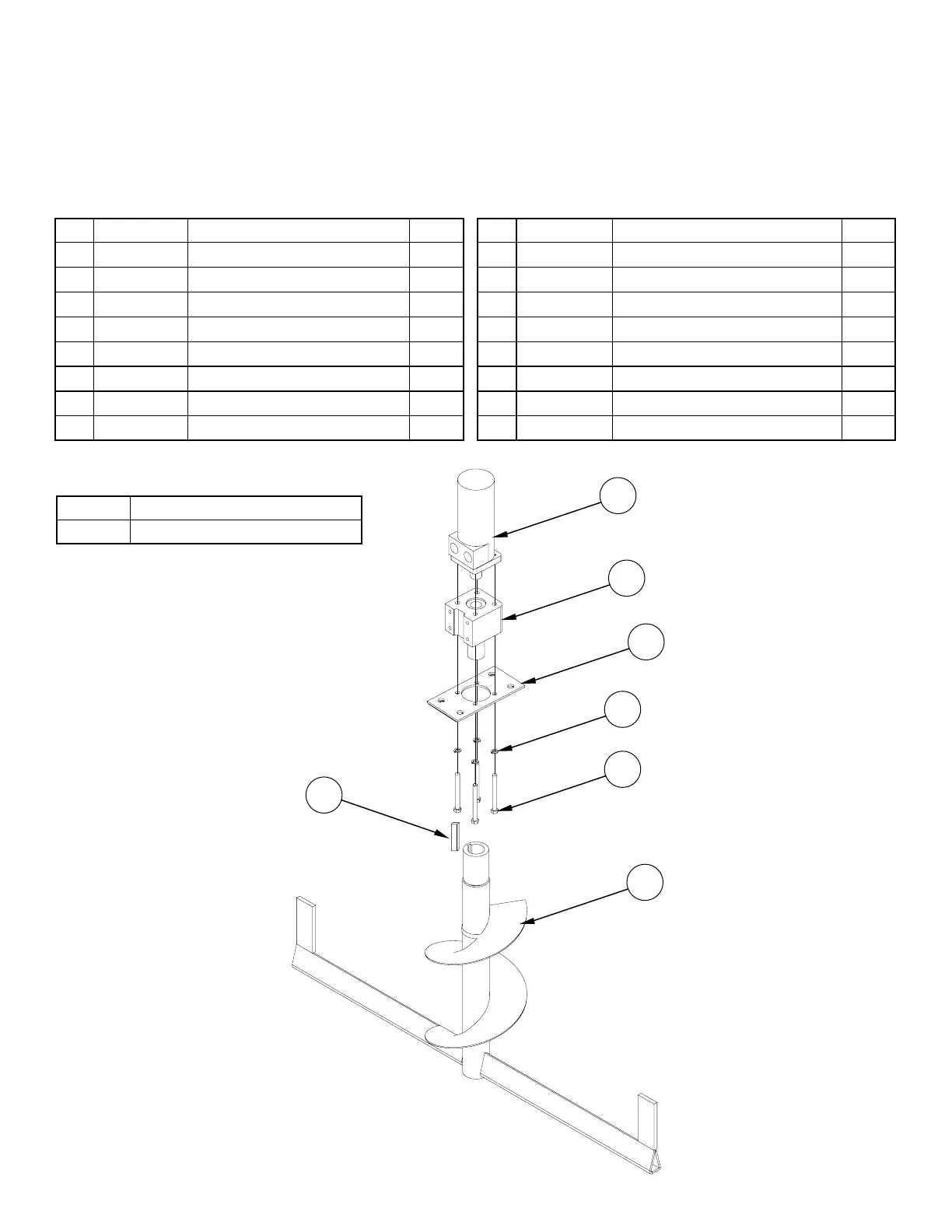

M1 and M2 Agitation System Parts
# PART # DESCRIPTION QTY.
# PART # DESCRIPTION QTY.
1 110294 Key .38 X 2.00 LG 1 1 110294 Key .38 X 2.00 LG 1
2 170467 Motor - Agitation 1 2 170602 Motor - Agitation 1
3 170449 Load Adapter M 1 3 170449 Load Adapter M 1
4 416670 Agitator Motor Mount 1 4 416670 Agitator Motor Mount 1
5 405107 Agitator 1 5 403557 Agitator 1
6 100093 Washer - Split-lock .38 4 6 100093 Washer - Split-lock .38 4
7 100877 HHCS .38 x 3.75 4 7 100877 HHCS .38 x 3.75 4
* 130226 Agitator Stop Limit Switch 1
* 130226 Agitator Stop Limit Switch 1
M2
M1
PART # DESCRIPTION
153772 Seal Kit for Hydraulic Motor
