CIMLINE M1 - M-Series Tank Burner Parts

48

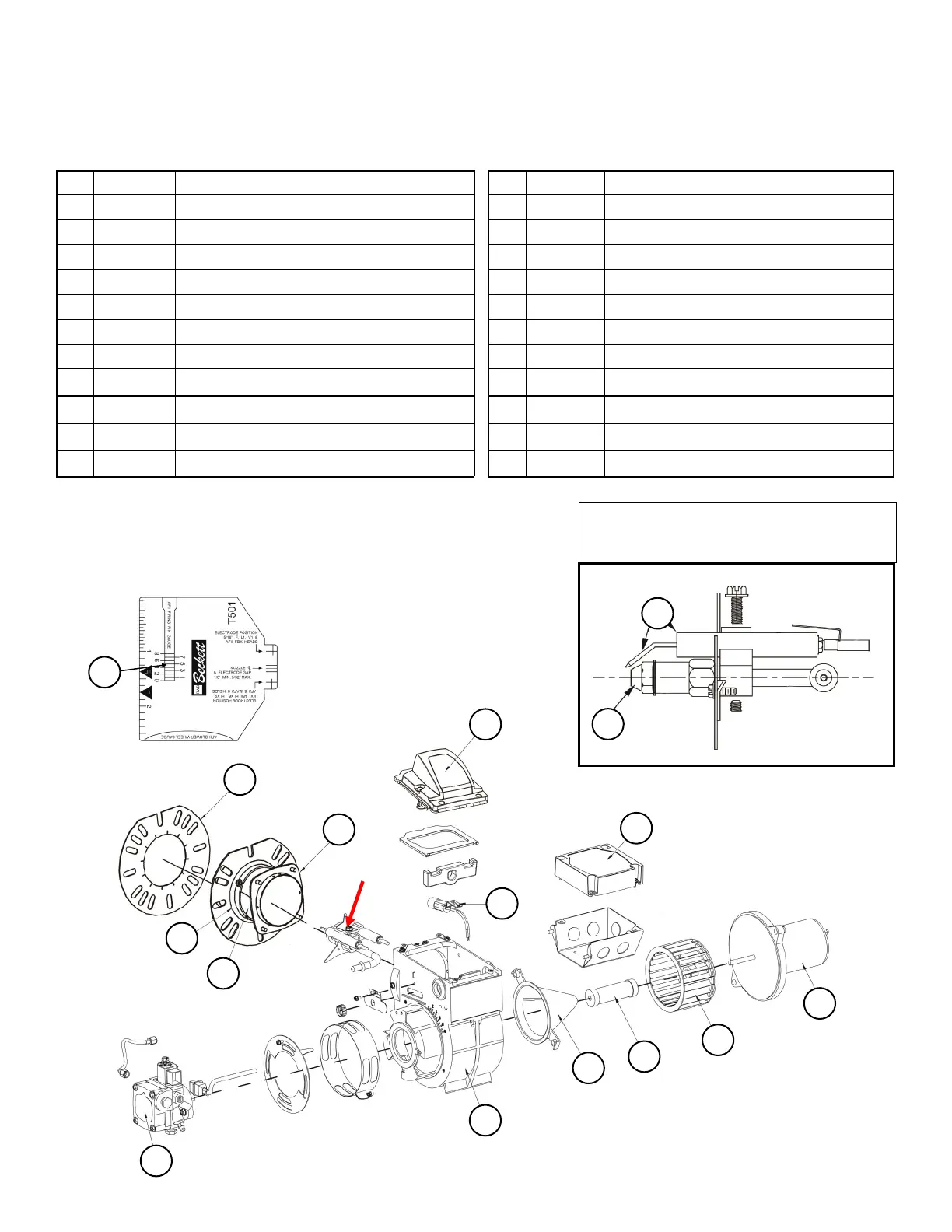

Tank Burner Parts
# PART # DESCRIPTION # PART # DESCRIPTION
1 152197 Tank Burner, Complete M1 & C1 10 153446 Burner Head Tube
1 404428 Tank Burner, Complete M2 11 152398 Air Inlet Guide
1 404388 Tank Burner, Complete M4 & MA4 12 152399 Coupling
2 153505 Square Plate, Gasket 13 152466 Blower Wheel
3 152191 Tank Burner Motor (Items #12 & #13) 14 152105 Cad Cell (Electric Eye) Assembly
4 155001 Fuel Pump 15 152305 Nozzle Tip M1 & C1 1.75gph x 90B
5 152128 Gasket, Burner Flange 15 152204 Nozzle Tip M2 2.00gph x 90B
6 152173 Ignition Transformer Assembly 15 153445 Nozzle Tip M4 & MA4 2.25gph x 90B
7 152668 Nozzle / Electrode Set Gauge 16 152106 Electrode Rod Assembly
8 200352 Primary Control Assembly * 130166 Fuel Pressure Gauge
9 120443 Air Tube * - Not Shown
10
4
1
9
2
5
6
14
13
3
12
11
8
(A)
15
16
(A)
Complete Burner Nozzle Line
Assembly - Part #155328
7
