OTHER MELTER NOTES:
On a new CIMLINE Melter Applicator or a unit that has been idle for some time, it is recommended that you
slowly raise the oil temperature to 250ºF (121°C) and hold there for approximately 20 to 30 minutes. This
will help evaporate any water condensation that may be in the oil chamber.
To do this it will be necessary to temporarily change the heat transfer oil temperature setting.
The heat transfer oil control (B) on your CIMLINE melter has been factory set to 550° F (288°C). To
temporarily change the max temperature for evaporating condensation follow the same process as above
and apply to the heat transfer oil temperature controller (B). Run the melter applicator machine maintaining
the 250°F (121°C) heat transfer oil temperature for 20 to 30 minutes. Follow the instructions again to return
the heat transfer oil temperature controller back to the factory setting of 550°F (288°C).
M-Series Automatic Temperature Control Settings
MODIFYING SEALANT TEMPERATURE CONTROL SETTINGS:
The Sealant Temperature Control (A) on your CIMLINE melter applicator has been factory set to run the
most common types of sealants. These sealants have an application temperature of 380° F (193°C). With
some sealants, it may require a change to the controller to achieve the appropriate application tempera-
ture. To achieve this, open the control box and alter the Sealant Temperature Controller (top controller) by
following the directions below.

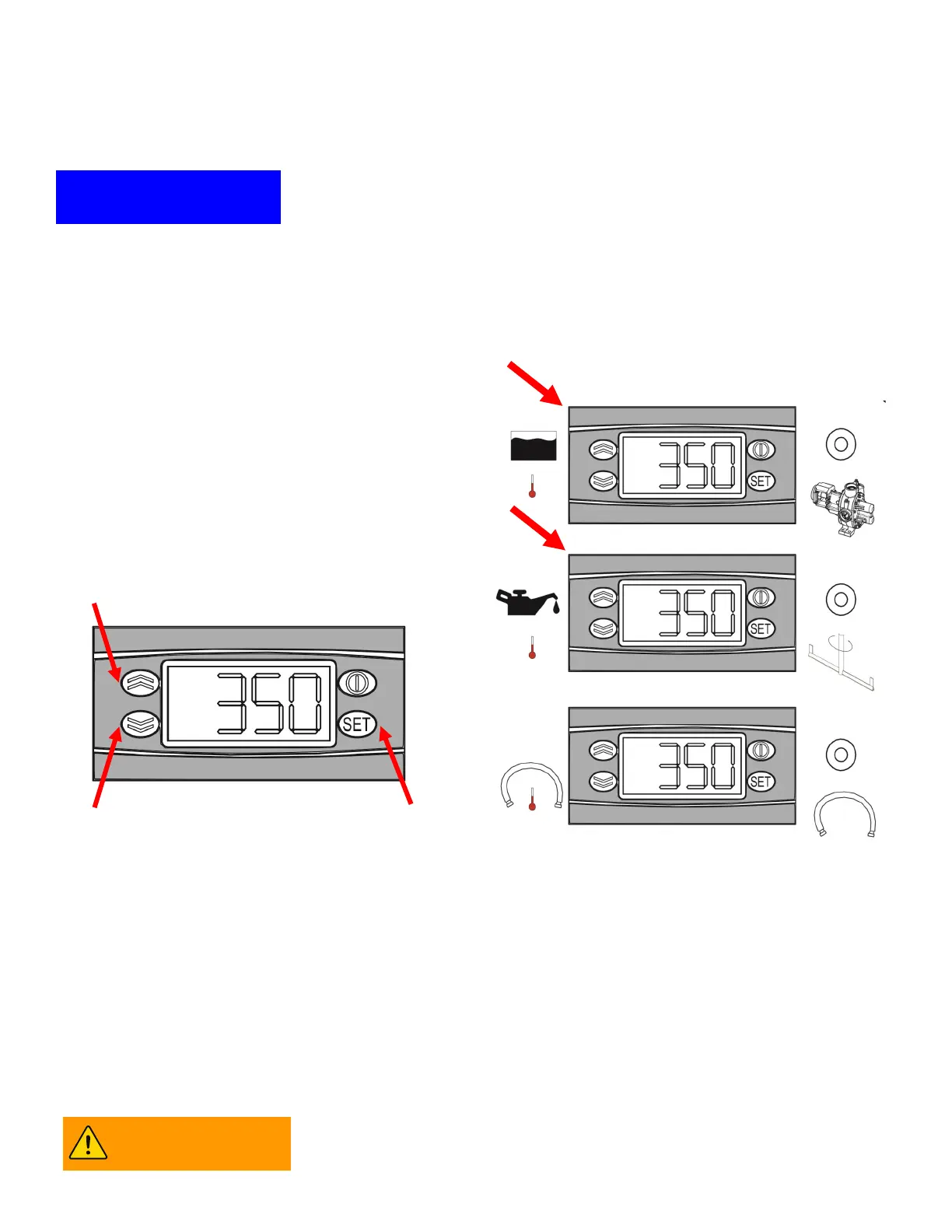

1) Press the “SET” button twice.
2) “SP1” (Set Point 1) is displayed.
3) Press the “SET” button.
4) Current material temperature setting is
Displayed (factory default is 380°F (193°C).
5) Use the “Up / Down” arrow buttons to change
to the desired temperature.
6) Press the “SET” button.
7) Let the controller time out. The controller will now
be changed and the updates will be saved.
Decrease (DOWN)
Increase (UP)
Set
(A)
(B)
Operating the heat transfer oil controller at temperatures higher that
the factory recommended 550°F (288°C) can risk death or serious
injury, equipment damage and will shortening the life of the oil.
Modifying any of the M Series Applicator Temperature Controls is
only intended to be done by trained, experienced operators.
NOTICE
WARNING
