CIMLINE M1 - M-Series Optional Sealant Wand Attachments

72

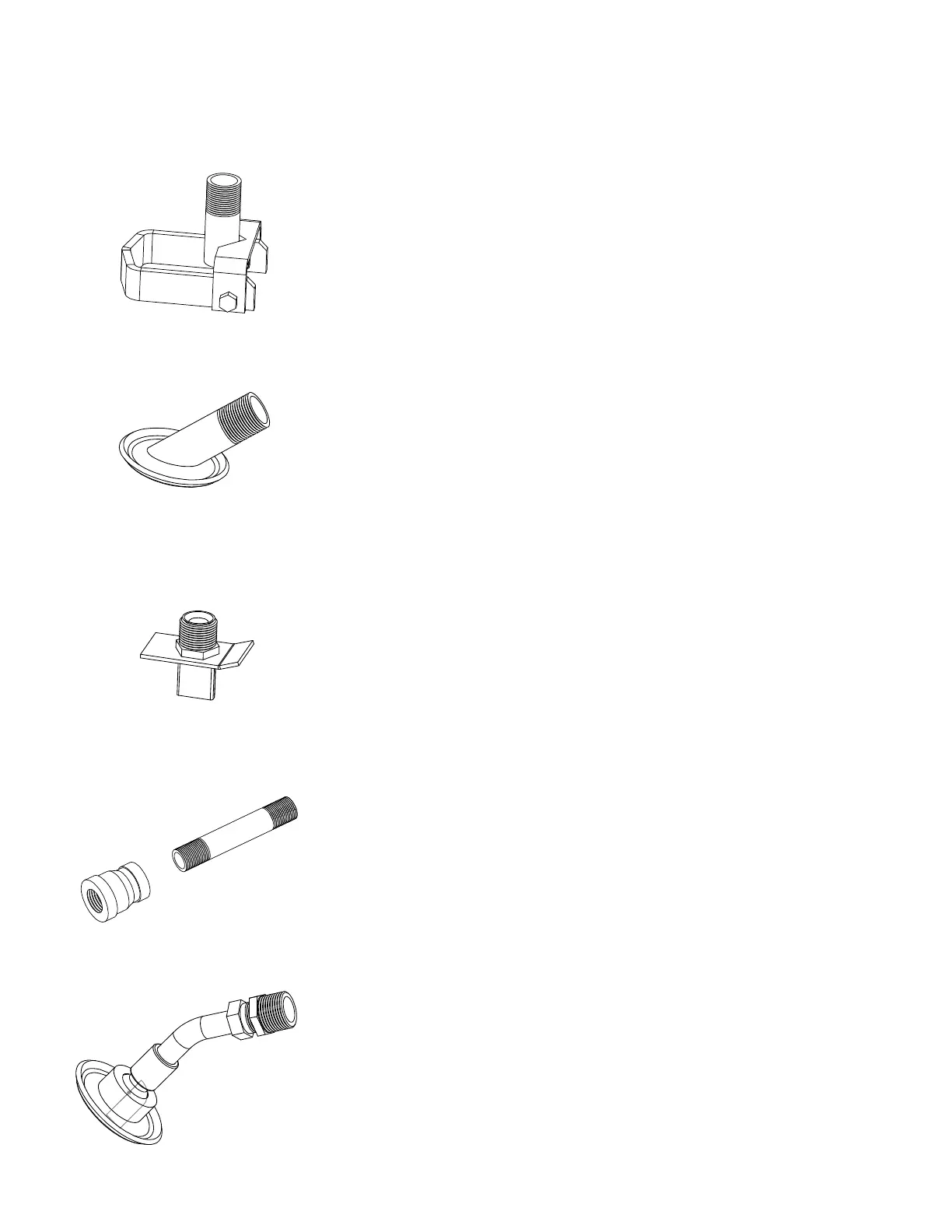

Optional Sealant Wand Attachments
PIVOTING SHOE 2-1/2” / 403137
 2-1/2" Wide Band
 3/4" NPT Inlet
 Open Shoe Design For Clear Visibility Of Material
 Pivoting Inlet Tube Maintains Contact With The Road
SEALING DISC 3.5” / 403162
SEALING DISC 2.5” / 404528
 2" or 3" Wide Band
 3/4" NPT Inlet
 3/8" OD Orifice
 4-1/2" OD Plate
 Uniform Band Provided By Disc Shape
SEALING TIP 1/8” / 403164Z
SEALING TIP 1/4” / 403163Z
 Available In 1/8" And 1/4"
 3/4" NPT Inlet
 Skid Plate To Reduce Operator Fatigue
 Tip May Be Shortened Or Angled On Field For Specific Applications
SEALING TUBE 3/8” / 416968
REDUCER 3/4” X 3/8” / 120567
 3/8 NPT X 3-1/2" Long Tube
 Angled Tip
 May Be Flattened In Field For Different Applications
 3/4" NPT Inlet
 120567 REDUCER REQUIRED
SWIVEL TIP 4” / 407233
SWIVEL TIP 2-1/2” / 407232
 2" or 3-1/2” Wide Band
 3/4" NPT Inlet
 3/8" OD Orifice
 3-1/8" OD Plate
 Uniform Band Provided By Disc Shape
 Pivoting Shoe
