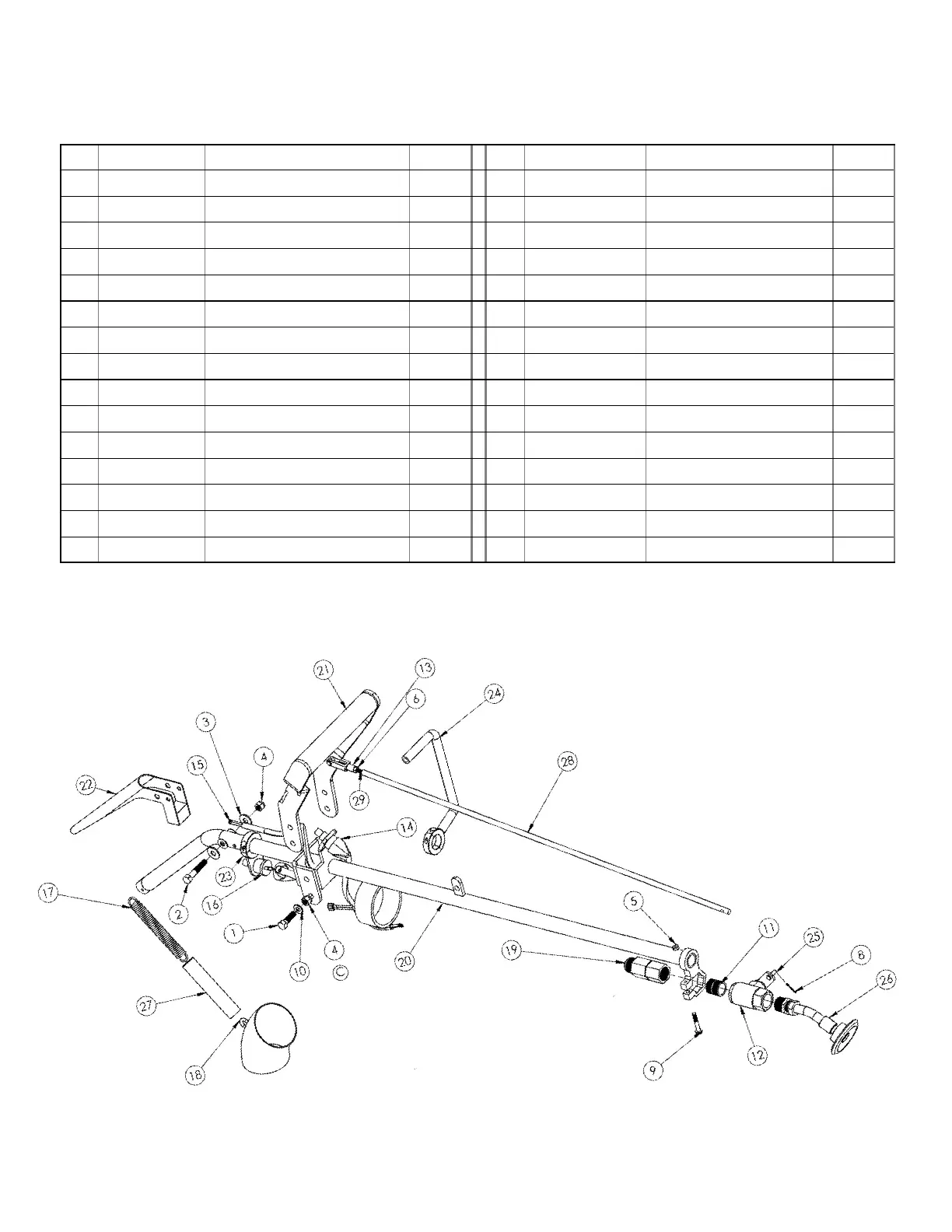

CIMLINE M1 - M-Series Sealant Wand Diagram and Parts

64
# PART # DESCRIPTION QTY. # PART # DESCRIPTION QTY.
1
100017 HHCS .38 x 1.25
2 16
152058
Switch 2
2
100020 HHCS .38 X 2.00
1 17
155297
Spring 1
3
100126 Washer-Flat .38
2 18
155975
Sleeve w/Link 1
4
100169 Nut-Plastic Lock .38
3 19 171065 Swivel 1
5
100206 Nut-Hex .25
1 20 303-005-000 Handle Assembly 1
6*
100207 .25 Nut
1 21 303-006-000 Handle 1
7 100211 Washer - Flat SAE .38 2 22 303-008-004 Switch Activation Assy. 1
8*
100275 Cotter Pin .09 X .75
1 23 303-011-004 Switch, Wand 1
9
100562 HHCS 1/4 X 1-1/2
1 24* 303-013-601 Wand, Frt Hndl 1
10
111725 Thrust Washer
2 25* 403905 Valve Lever 1
11*
120412 Pipe-Nipple-Close-.75
1 26 407232 Swivel Tip 1
12*
120560 Wand Valve .75 IN
1 27 427116 Spring Guard 1
13*
130155 Clevis Kit
1 28* 427358 Rod 1
14
130224
Boot, Switch 2 29* 429945 Stud 1
15
130580
Harness, Wand 1 303-004-000 Complete Wand Assy.
M-Series No Drip Sealant Wand
* Not used on Light Weight Wand 303-003-000
For use with 20’ Hose PN 303-012-000
