20
Hydraulic Reserve Capacity 33 Gallons (125L)
Hydraulic Oil Type Conoco MV32 or equivalent
Diesel Fuel Capacity 33 Gallons (125L)
Diesel Fuel Type ASTM D975 No.2
Heat Transfer Oil Type See specification on next page
M-Series Fluid and Components Specifications
MELTER UNIT
HEAT TRANSFER
OIL CAPACITY
PUMP
Hydraulic Relief Setting
AGITATOR
Hydraulic Relief Setting
M1 25 Gal (95 L) 800 psi (55 Bar) 1100 psi (76 Bar)
M2 30 Gal (114 L) 800 psi (55 Bar) 800 psi (55 Bar)
M4 & M4 Dual 42 Gal (159 L) 800 psi (55 Bar) 800 psi (55 Bar)
ENGINE:
The operation and life of the engine depends on you and your operators. Do not start engine until the
engine pre-check is complete. The engine pre-check consists of checking the oil, the fuel level, the
hydraulic oil level and the air filter. For more details about your engine please refer to the engine
operator maintenance manual and warranty provided with your sealant melter applicator.
AIR CLEANER:
Due to the dusty conditions that can be created by road work, it is essential to check the engine air
cleaner element daily. Remove element and shake out the accumulated dust and dirt. Wipe out dirt
from inside cover and from housing. Reference engine manual for washing instructions. CIMLINE
recommends stocking replacement filters.
ENGINE OIL:
Use high quality detergent oil of API (American Petroleum Institute) service class CF or higher grade.
Select the viscosity based on the air temperature at the time of operation. Reference your engine
manual for other recommendations.
Only the oils specified, or equal, may be used in this system.
(Always check your local and state regulations before disposal)
NOTICE
These are petroleum
based products.
CIMLINE recommends
that you do not mix
oil brands.
Mixing any oils
(Engine oil, hydraulic oil,
transmission fluid, etc.)
adversely affects each
Manufacturers formula.

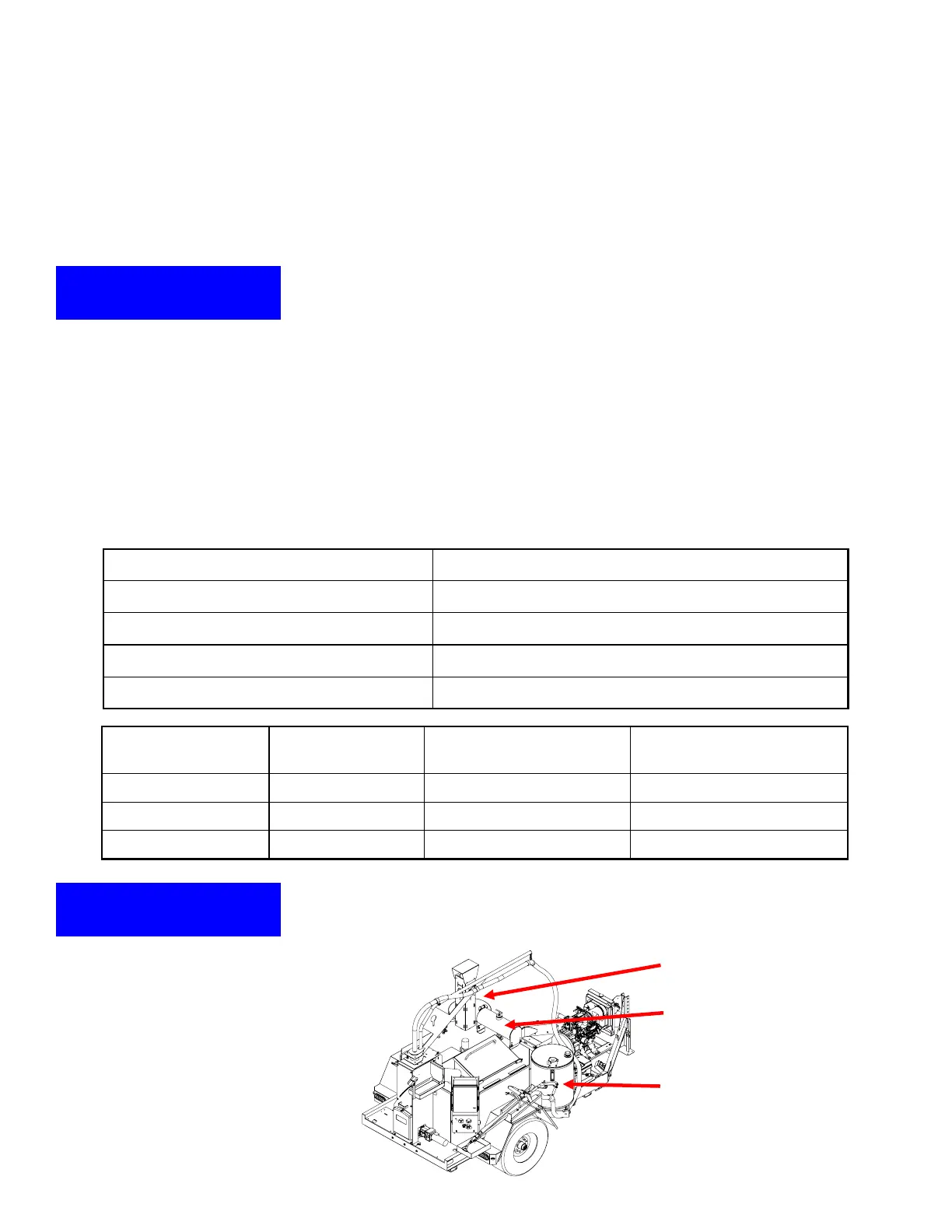

HYDRAULIC OIL
RESERVE TANK
HEAT TRANSFER OIL
EXPANSION TANK
DIESEL FUEL TANK
When breaking in a new sealant melter applicator, CIMLINE
recommends running the engine for one hour with no load prior to
actual use on the job.
NOTICE
