M4 Dual Main Wiring Harness Diagram
# Color Function
1 White Hose A.C. Voltage
2 Black Hose A.C. Voltage
4 Red Battery (+)
8 Green Generator Excite
4
8
1
2

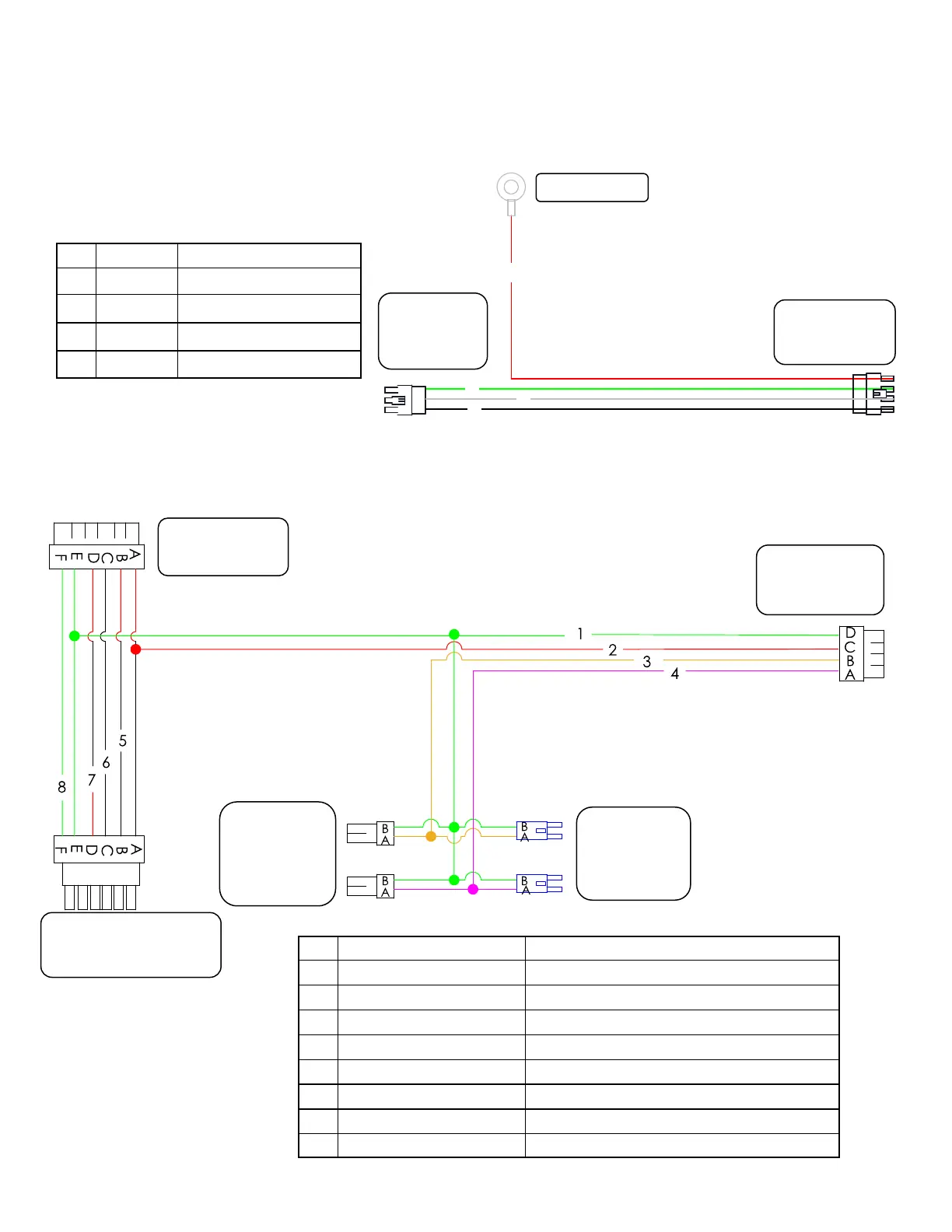

M4 Dual Wand Generator Harness
PN 130578 Wiring diagram
Right
Generator
Battery
Aux Control
Box
Harness
PN 130578
Harness Extension
PN 130756
Aux Control
Panel
Main
Manifold
Main Control
Panel
Manifold
Connectors
# Color Function
1 Green/Yellow Stripe Ground
2 Red Control Box Power
3 Tan Pump Reverse Auto
4 Purple Pump Forward Auto
5 Red Battery Pass Through
6 White Burner Pass Through
7 Red Micro Panel Pass Through
8 Green Generator Excite Pass Through
M4 Dual Wand Splitter Harness
PN 130947 Wiring diagram
To Next Page
