45
# PART # DESCRIPTION QTY.
1 153870 Relay Base 1
2 - Terminal Strip DIN 1
3 200598 Heated Hose Controller 1
4 - 4PDT Toggle Switch On/Off/On 1
5 130227 SPDT Toggle Switch 1
6 130113 12V 30A Relay 1
7 152119 Fuse Holder 1
8 430376 Plate - Control Panel 1
* - Control Panel Enclosure 1
* NOT SHOWN
Second
Heated Hose
Generator
Harness
PN 130578
Harness
Splitter
PN 130497
Hose Thermocouple
Manifold

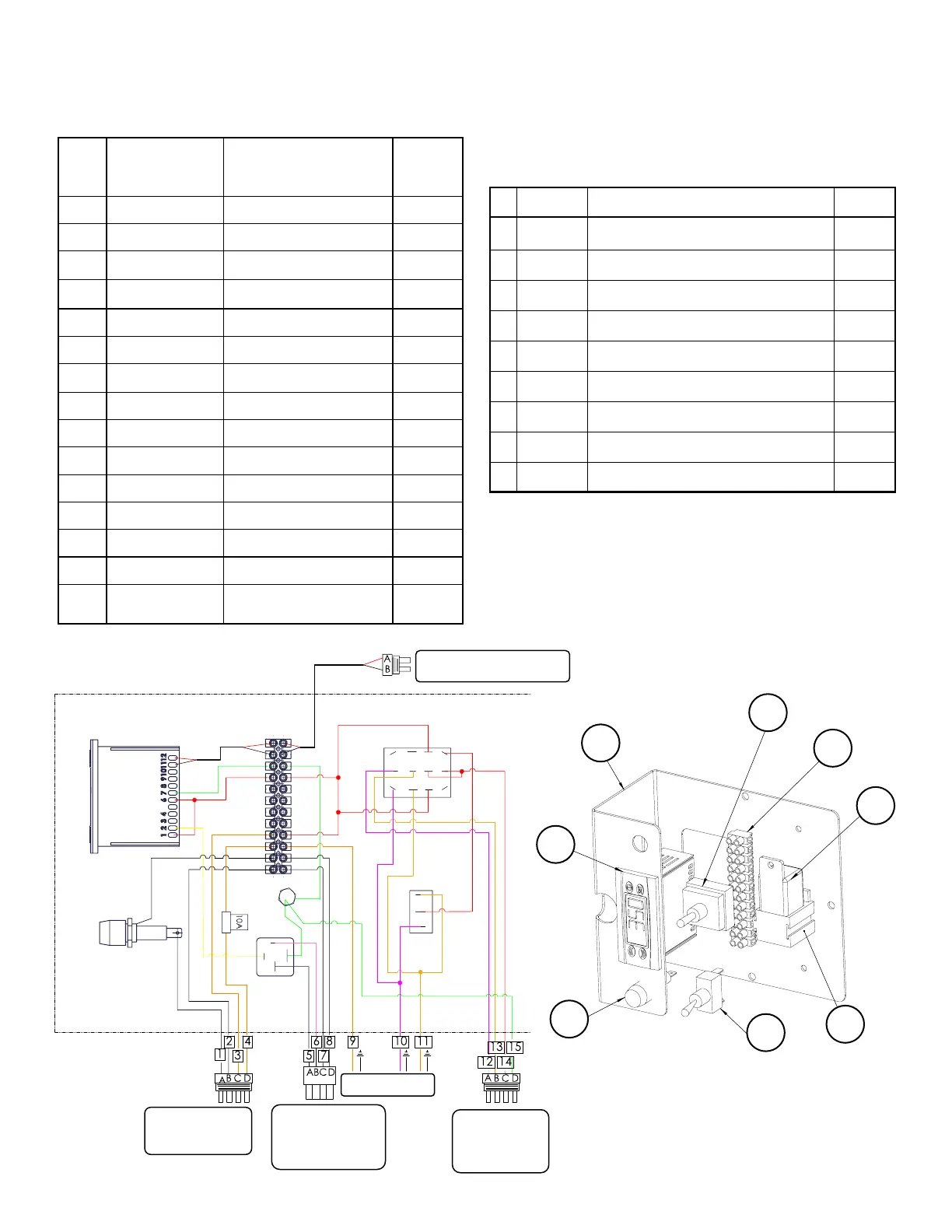

M4 Dual Auxiliary Control Panel Parts
# Color Function
AWG
Wire
Gauge
1 White Hose AC Voltage 16
2 Black Hose AC Voltage 16
3 Orange TFC Inlet 16
4 Orange TFC Outlet 16
5 Red Power 16
6 Pink Generator Excite 16
7 White Generator AC 16
8 Black Generator AC 16
9 Orange TFC Output 16
10 Purple Pump Forward 16
11 Tan Pump Reverse 16
12 Purple Pump Forward Auto 16
13 Tan Pump Reverse Auto 16
14 Red Power 16
15
Green/Yellow
Stripe
Battery (-) 12
8
4
2
6
3
7
1
5
To Next Page
