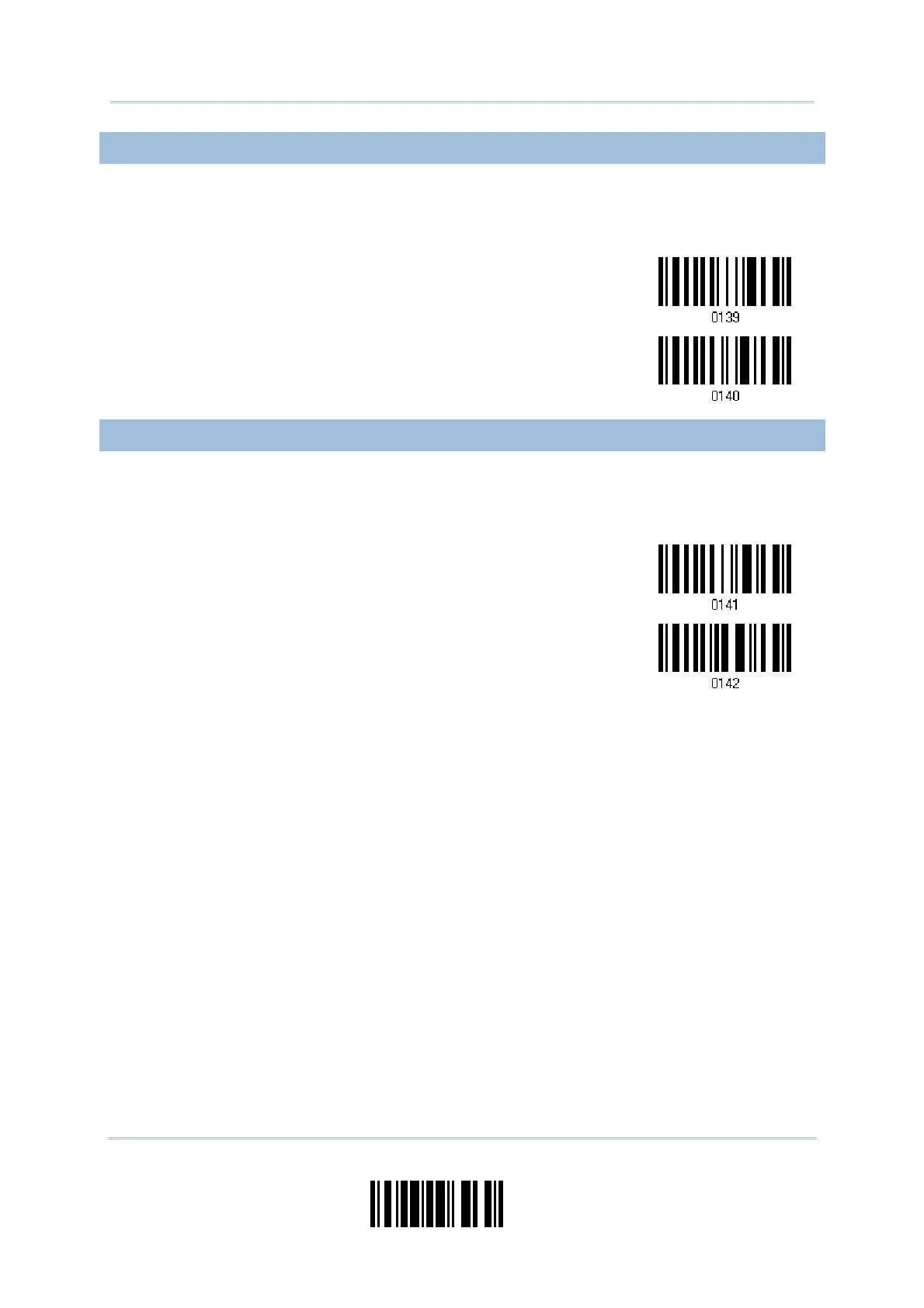

49
Update
Chapter 3
Changing Symbology Settings
3.2.2 VERIFY CHECK DIGIT
Decide whether t
o verify the check digit. If in
correct, the barcode will
not be accepted.
Verify
Industrial
25
Check Digit
*Do Not Verify
3.2.3 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit
I
ndustrial 25
Check Digit
Do Not Transmit
58
60
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
For Product with Laser
4
Care & Maintenance
4
Release Notes
5
Table of Contents
7
Introduction
11
Inside the Package
12
Accessories & Interface Options
12
Product Highlights
13
Symbologies Supported
14
Quick Start
17
Enter Configuration Mode
18
Exit Configuration Mode
18
Default Settings
19
Restore System Defaults
19
Read a Setup Barcode
20
Configure Parameters
20
List the Current Settings
24
Chapter 1
25
LED Indicator
25
Power
25
Understanding the Barcode Scanner
25
Beeper
26
Good Read Beep
27
Frequency
27
Scan Modes
28
Continuous Mode
29
Test Mode
29
Laser Mode
29
Auto off Mode
30
Auto Power off Mode
30
Alternate Mode
30
Repeat Mode
31
Momentary Mode
31
Scanning Timeout
32
Delay between Re-Read
33
Read Redundancy for All Symblogies
34
Auto-Sense Mode (1100 Only)
35
Negative Barcodes
35
Selecting Output Interface
37
Keyboard Wedge
38
Activate Keyboard Wedge & Select Keyboard Type
38
Keyboard Settings
40
Inter-Character Delay
48
Activate RS-232 Interface
49
Baud Rate
49
Rs-232
49
Data Bits
50
Parity
50
Flow Control
51
Inter-Character Delay
51
Wand Emulation
52
Activate Wand Emulation
52
Normal State
52
Bar State
53
Module Time
53
Margin Time
54
Changing Symbology Settings
55
Chapter 3
56
Codabar
56
Start/Stop Characters Selection
56
Start/Stop Transmission
57
CLSI Conversion
57
Code 25 - Industrial 25
58
Select Start/Stop Pattern
58
Verify Check Digit
59
Transmit Check Digit
59
Code Length Qualification
60
Code 25 - Interleaved 25
61
Select Start/Stop Pattern
61
Verify Check Digit
62
Transmit Check Digit
62
Code Length Qualification
63
Code 25 - Matrix 25
64
Select Start/Stop Pattern
64
Verify Check Digit
65
Transmit Check Digit
65
Code Length Qualification
66
Code 39
67
Transmit Start/Stop Characters
67
Verify Check Digit
68
Transmit Check Digit
68
Standard/Full ASCII Code 39
68
Code 93
69
Code 128
69
Ean-8
70
Convert to EAN-13
71
Transmit Check Digit
71
Ean-13
72
Convert to ISBN
73
Convert to ISSN
73
Transmit Check Digit
73
Gs1-128 (Ean-128)
74
Transmit Code ID
74
Field Separator (GS Character)
74
Msi
75
Verify Check Digit
75
Transmit Check Digit
75
Code Length Qualification
76
French Pharmacode
77
Transmit Check Digit
77
Italian Pharmacode
78
Transmit Check Digit
78
Plessey
79
Convert to UK Plessey
79
Transmit Check Digit
79
GS1 Databar (RSS Family)
80
Select Code ID
80
GS1 Databar Omnidirectional (RSS-14)
81
GS1 Databar Expanded (RSS Expanded)
83
GS1 Databar Limited (RSS Limited)
84
Telepen
85
Telepen Output - Full Ascii/Numeric
85
Apply All 3 Editing Formats to Telepen
85
Upc-A
86
Convert to EAN-13
87
Transmit System Number
87
Transmit Check Digit
87
Upc-E
88
Select System Number
89
Convert to UPC-A
89
Transmit System Number
90
Transmit Check Digit
90
Defining Output Format
91
Character Substitution
91
Select a Set for Character Substitution
92
Prefix/Suffix Code
93
Code ID
94
Select Pre-Defined Code ID
94
Change Code ID
96
Clear Code ID Settings
97
Length Code
98
Applying Formats for Data Editing
103
Chapter 5
104
Activating Editing Formats
104
Activate Editing Formats
104
Exclusive Data Editing
105
How to Configure Editing Formats
106
Select Format to Configure
107
Restore Default Format
108
Configuring Format - Define Data Criteria
109
Applicable Code Type
109
Data Length
113
Matching String & Location
114
Configuring Format - Define Data Field
115
Total Number of Fields
115
Field Settings
116
Configuring Format - Define Transmission Sequence
122
Programming Examples
124
Example I
124
Example II
125
Specifications
127
Host Serial Commands
131
Serial Commands
131
Example
132
Keyboard Wedge Table
133
Key Type & Status
134
Key Type
134
Key Status
134
Example
135
Numeral Systems
137
Decimal System
137
Hexadecimal System
138
ASCII Table
139
