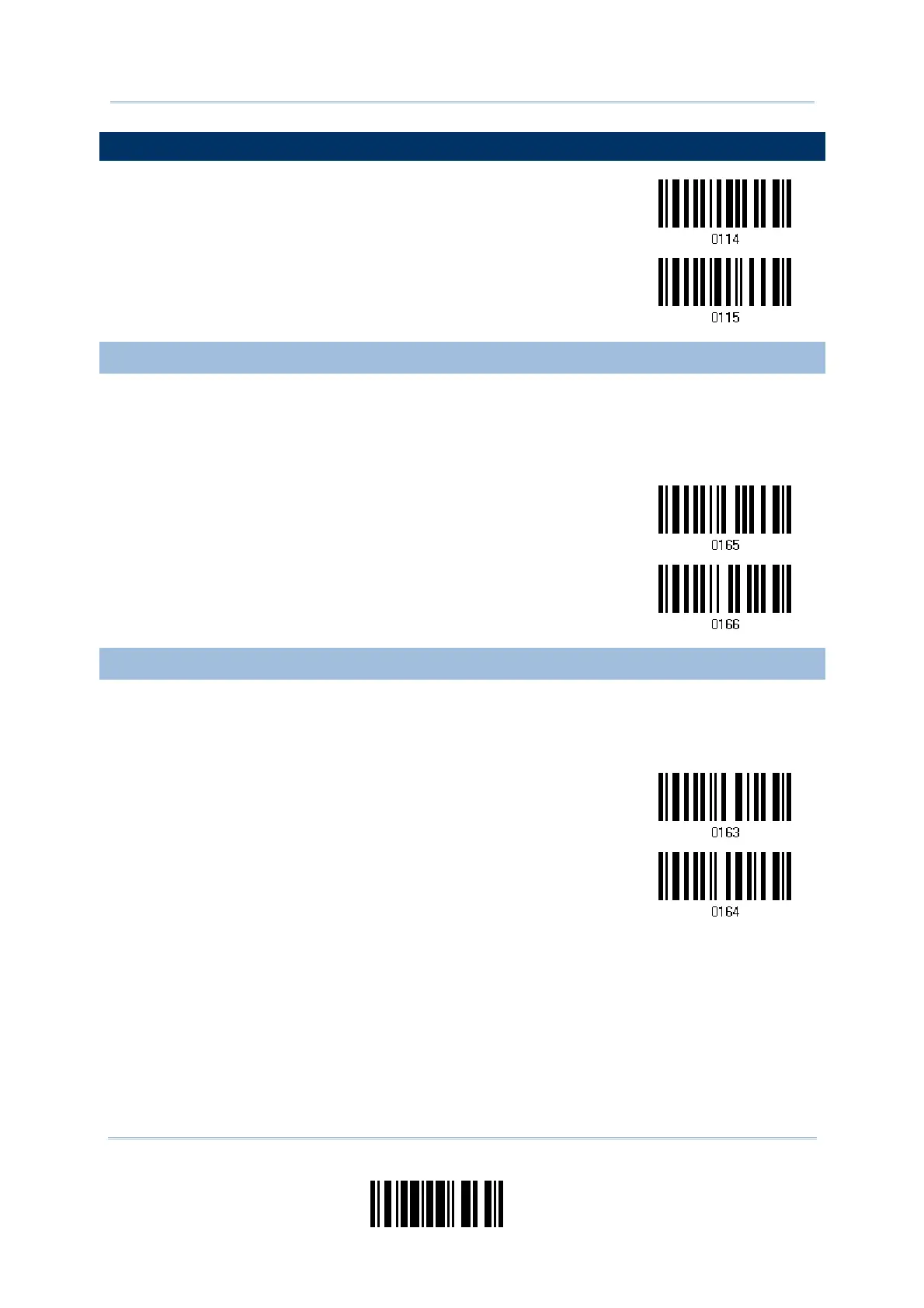

69
Update
Chapter 3
Changing Symbology Settings
3.14 PLESSEY
Enable
*Disable
3.14.1 CONVERT TO UK PLESSEY
Decide whether to change each occurrence o
f the character 'A' to character 'X' in the
decoded data.
Convert
to
UK
Plessey
*Do Not Convert
3.14.2 TRANSMIT CHECK DIGIT
Decide whether to inclu
de the two check digits in the
data being transmitted.
*Transmit Plessey
Check Digits
Do Not Transmit
