Circutor CVM-C4 Series User Manual

16
CVM-C4
Instruction Manual

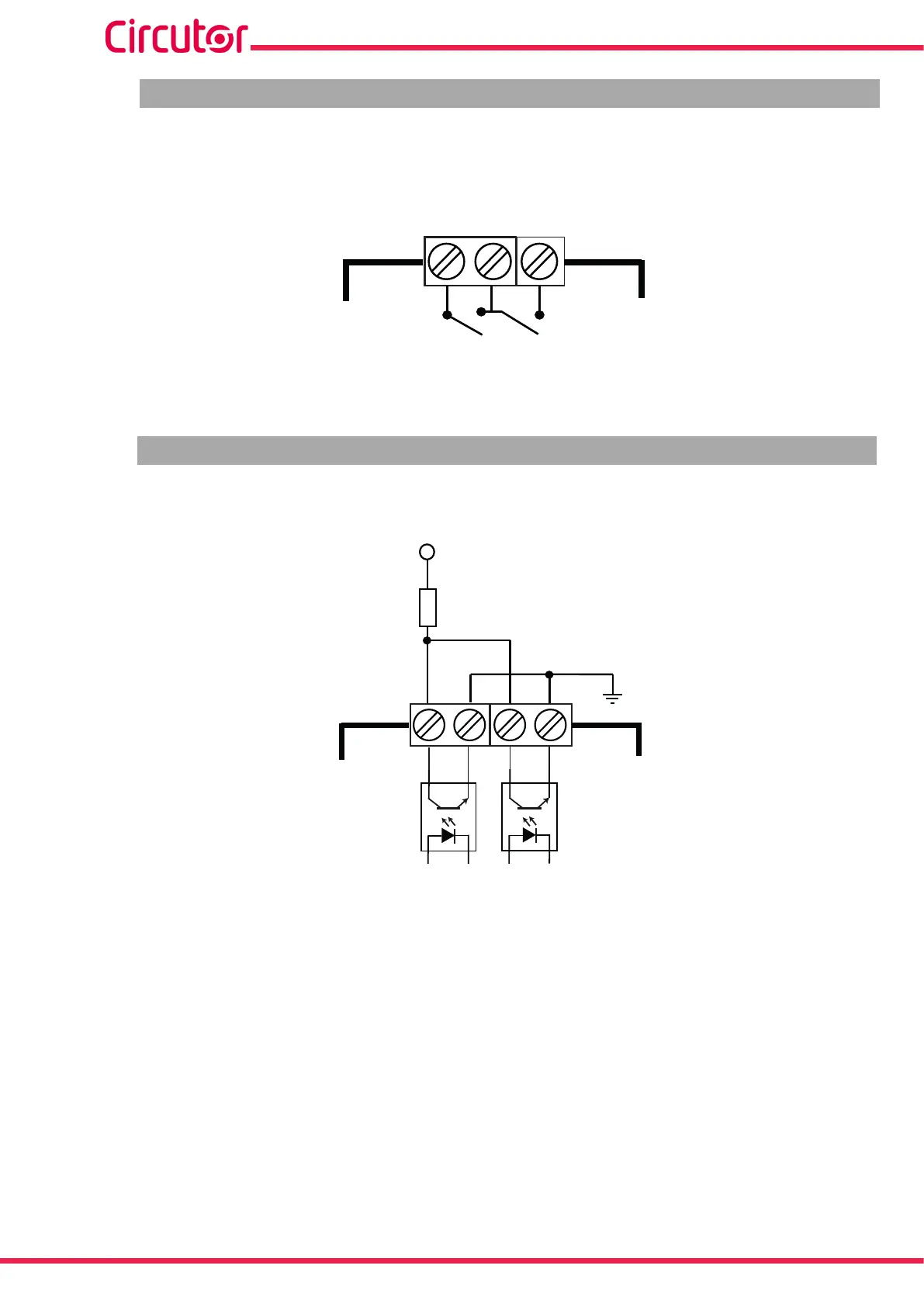

4.4.- RELAY OUTPUTS
The device features two programmable relay outputs (terminals 15, 16 and 17 in Figure 11) that
canbeprogrammedasremotecontrolsignalsoralarmsinthecongurationmenu("6.3.- RE-
LAY OUTPUT 1" and "6.4.- RELAY OUTPUT 2").
17
15
Relé 1
Relay 1
Relé 2
Relay 2
Figure 11: Relay outputs
4.5.- ENERGY IMPULSE OUTPUTS
The device features energy impulse outputs (terminals 47, 48, 49 and 50 in Figure 10).
Vcc
50
47
+
+
- -
Salidas de pulsos de energía
Energy pulse outputs
Figure 12: Energy impulse outputs
The type of energy impulses is selected in section “6.5.1.- ENERGY ACCUMULATION MODE”.
If option 4q is selected, the device generates:
 Impulse output 1 (terminals 47 and 48): Active energy impulses consumed (positive).
 Impulse output 2 (terminals 49 and 50): Active energy impulses generated (negative).
If option 2t is selected, the device generates:
 Impulse output 1 (terminals 47 and 48): Active energy impulses consumed (positive)
in tariff 1.
 Impulse output 2 (terminals 49 and 50): Active energy impulses consumed (positive)
in tariff 2.
