Instruction Manual
CVM-C4

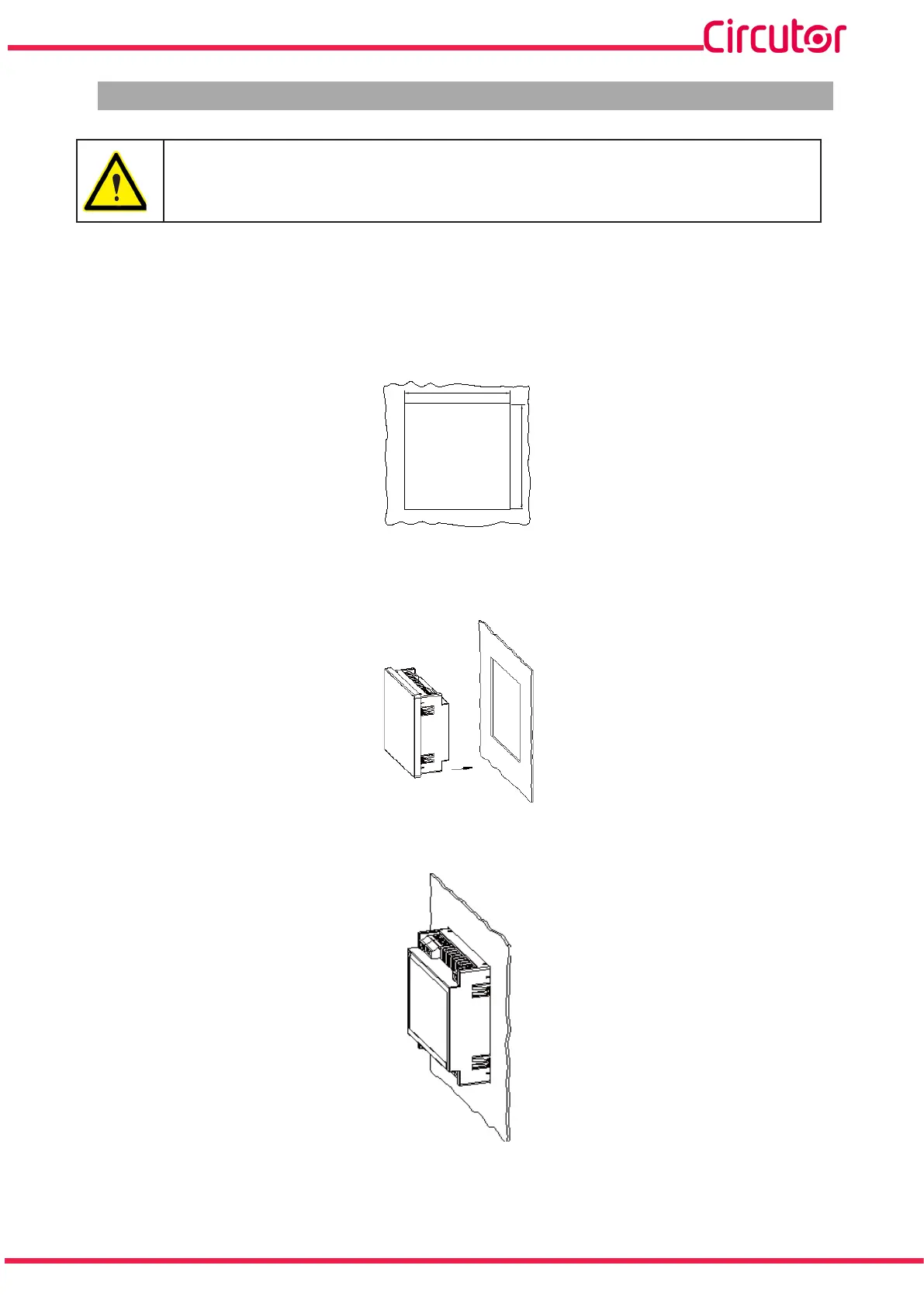

3.2.- INSTALLATION
Terminals, opening covers or removing elements can expose parts that are
hazardous to the touch while the device is powered. Do not use the device until
it is fully installed.
The device should be installed inside an electric panel or enclosure, and panel-mounted.
The following steps must be taken for correct installation:
1�- Make a cut in the panel, according to the dimensions in Figure 1
91
91
Figure 1: Cut in the panel
2�- From outside, insert the device into the panel cut-out (Figure 2)
Figure 2: Insert the device
3 �- Fully insert the device and fasten it by using the spring (Figure 3)
Figure 3: Fully insert the device
The device must be connected to a power circuit protected by a fuse with a maximum nominal
