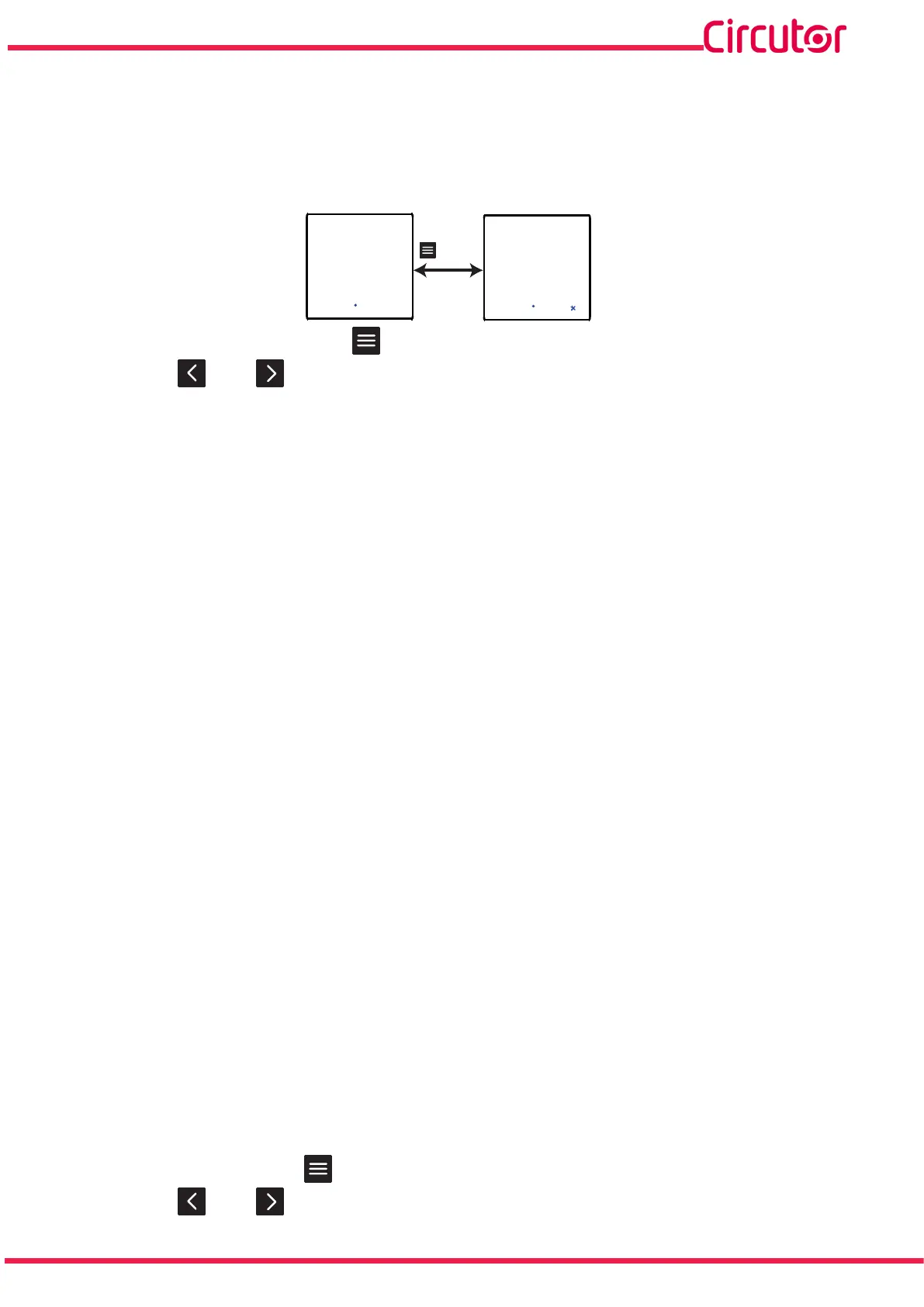

6�3�3�- ALARM PARAMETER
Note: Visible variable if the relay operating mode has been congured as an alarm output.
Thisscreenisusedtoconguretheparameteronwhichthealarmwillbeactivated.
do-1
itEn
Un H
>3s
do-1
itEn
Un H
-
.
.
With a long keystroke (>3s), press toaccessthevalue'sconguration.
Use the keys and to browse through the different options:
Un. H, Active alarm when the Phase - Neutral voltage is higher than the alarm value
Un. L, Active alarm when the Phase - Neutral voltage is lower than the alarm value
UL. H, Active alarm when the Phase - Phase voltage is higher than the alarm value
UL. L, Active alarm when the Phase - Phase voltage is lower than the alarm value
i. H, , Active alarm when the current is higher than the alarm value
i. L, Active alarm when the current is lower than the alarm value
P. H, Active alarm when the total active power is higher than the alarm value.
P. L, Active alarm when the total active power is lower than the alarm value
q. H, Active alarm when the total reactive power is higher than the alarm value.
q. L, Active alarm when the total reactive power is lower than the alarm value.
S. H, Active alarm when the total apparent power is higher than the alarm value.
S. L, Active alarm when the total apparent power is lower than the alarm value.
PF. H, Active alarm when the power factor is higher than the alarm value.
PF. L, Active alarm when the power factor is lower than the alarm value.
F. H, Active alarm when the frequency is higher than the alarm value.
F. L, Active alarm when the frequency is lower than the alarm value.
UtH.H, Active alarm when the THD voltage is higher than the alarm value.
UtH.L, Active alarm when the THD voltage is lower than the alarm value.
itH.H, Active alarm when the THD current is higher than the alarm value.
itH.L, Active alarm when the THD current is lower than the alarm value.
di-1,Active alarm when digital input 1 is connected.
di-0,Active alarm when digital input 1 is disconnected.
d2-1,Active alarm when digital input 2 is connected.
d2-0,Active alarm when digital input 2 is disconnected.
With a long keystroke, press to validate the option.
Use the keys and to browse through the menu screens.
