Instruction Manual
Wibeee
3.2.- INSTALLATION
Before using the Wibeee ensure that the conditions are appropriate for
working, and that the protective equipment is adequate�
Use of the Wibeee on uninsulated conductors is limited to 265 V~ to the
power frequency.
For measuring of uninsulated conductors, use the appropriate and necessary
personal protective equipment.
The device should be installed after the circuit breaker. (Imax: 63 A)
To install the device, carry out the following steps:
1� Remove the protective panel from the electric panel.

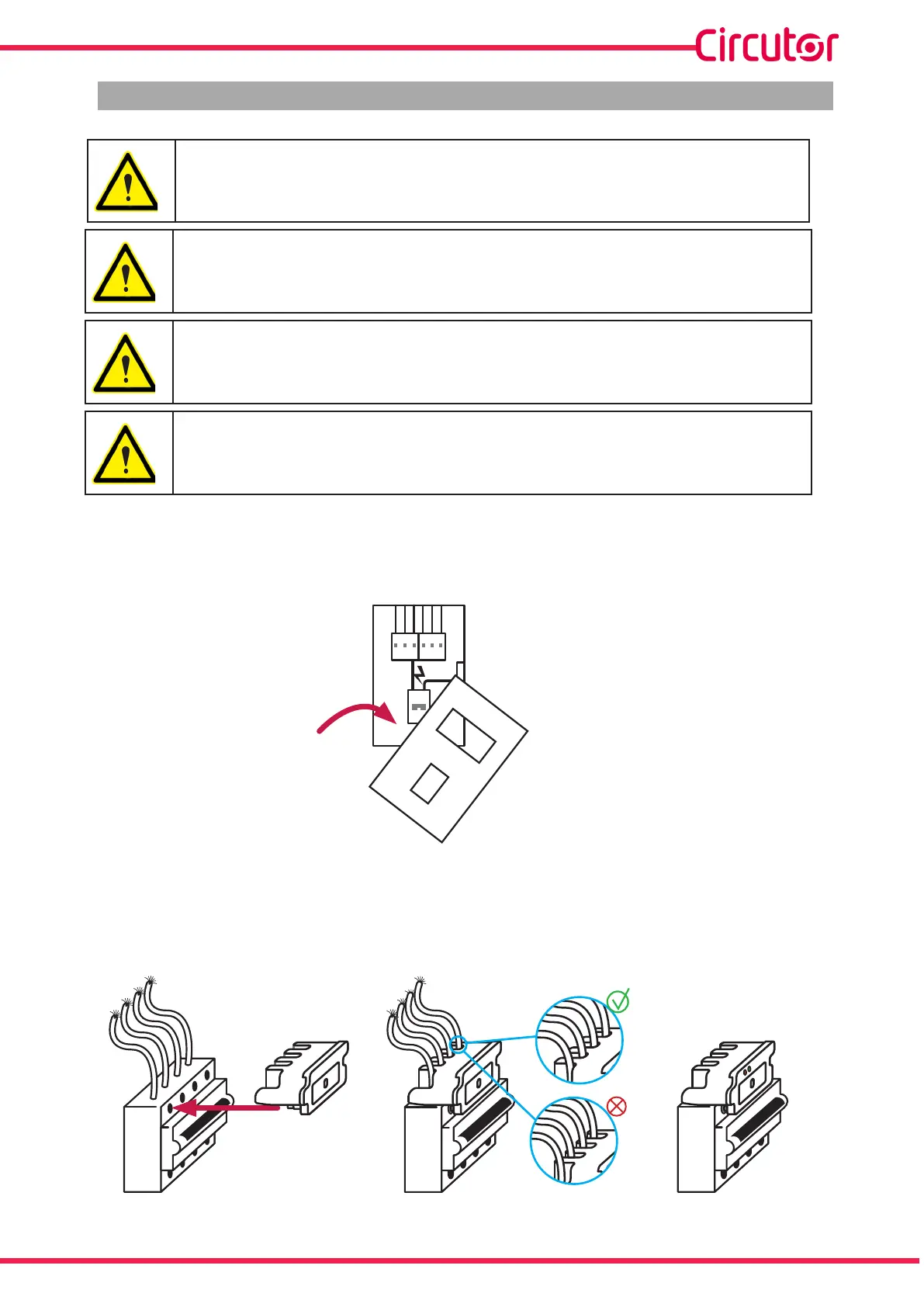

Figure 1: Remove the connection panel�
2� When installing the device, make sure that the neutral terminal (N) corresponds with the neu-
tral cable of the installation (your device could be damaged if incorrectly installed).
Place the magnetic connectors in the direction of the circuit breaker and near to the casing of
the Wibeee.
Figure 2: Install the device�
