Cisco 2600 Series Hardware Installation Guide

3-3
Cisco 2600 Series Routers Hardware Installation Guide
OL-2171-02
Chapter 3 Installing the Router
Setting Up the Chassis

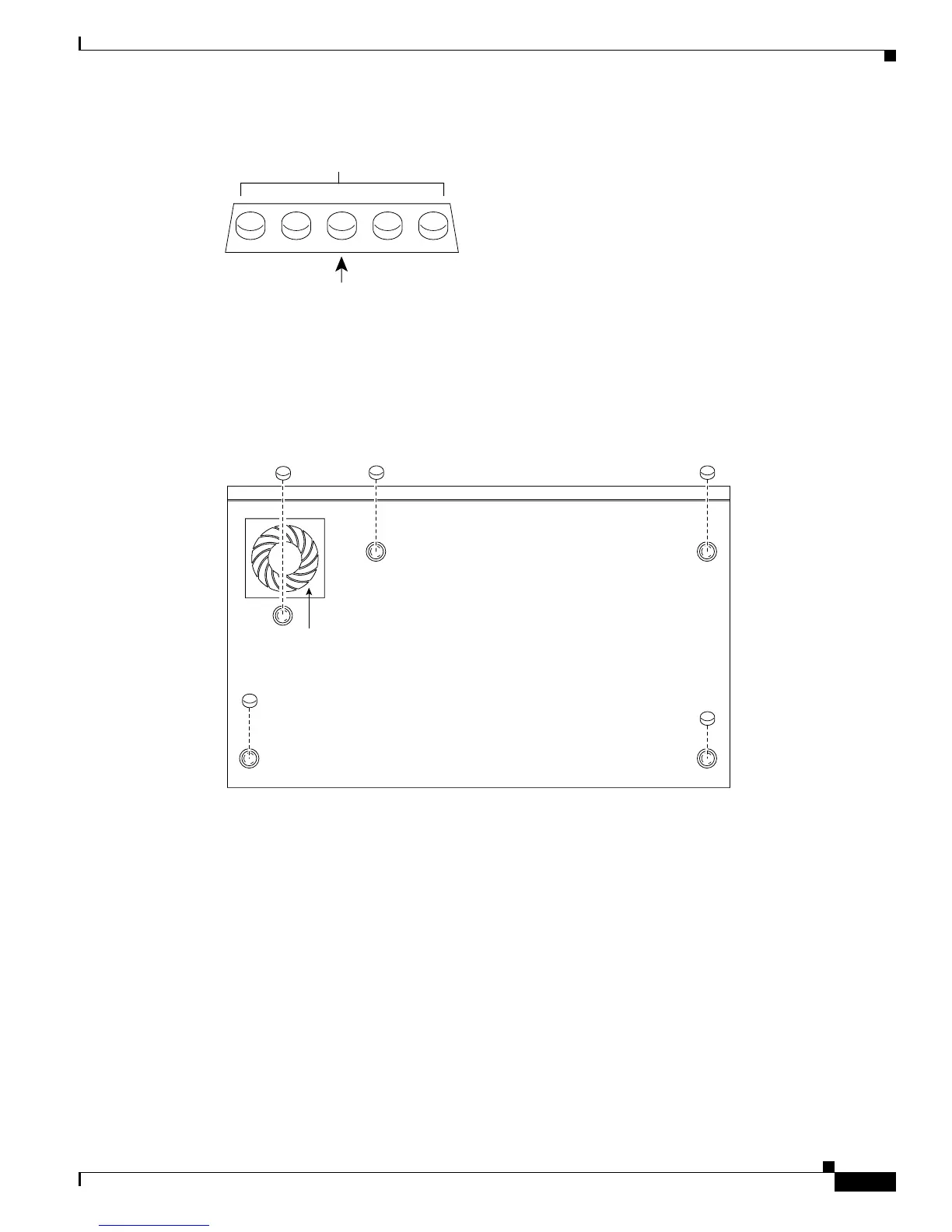

Figure 3-1 Identifying the Rubber Feet
Step 2
Place the router upside down on a smooth, flat surface.
Step 3 Peel off the rubber feet from the black adhesive strip and place them adhesive-side down onto the five
round, recessed areas on the bottom of the chassis. (See Figure 3-2 and Figure 3-3.)
Figure 3-2 Rubber Feet Location on Cisco 261x, Cisco 262x, Cisco 26xxXM, and Cisco 265x Series
Routers
Rubber feet (5)
Black adhesive strip
H4796
Fan
H4795
