Cisco 2600 Series Hardware Installation Guide

3-11
Cisco 2600 Series Routers Hardware Installation Guide
OL-2171-02
Chapter 3 Installing the Router
Setting Up the Chassis
Mounting the Chassis on the Wall
Cisco 2600 series routers with a chassis height of 1RU can be attached to a wall. Mounting a 2RU chassis
to a wall is not recommended and brackets are not provided for mounting to a wall.
Note Use 19-inch brackets (shown in Figure 3-4) to wall-mount the chassis. The small brackets provide
the most stable installation for the chassis.
To wall-mount the chassis:
Step 1 Attach the brackets as shown in Figure 3-17.

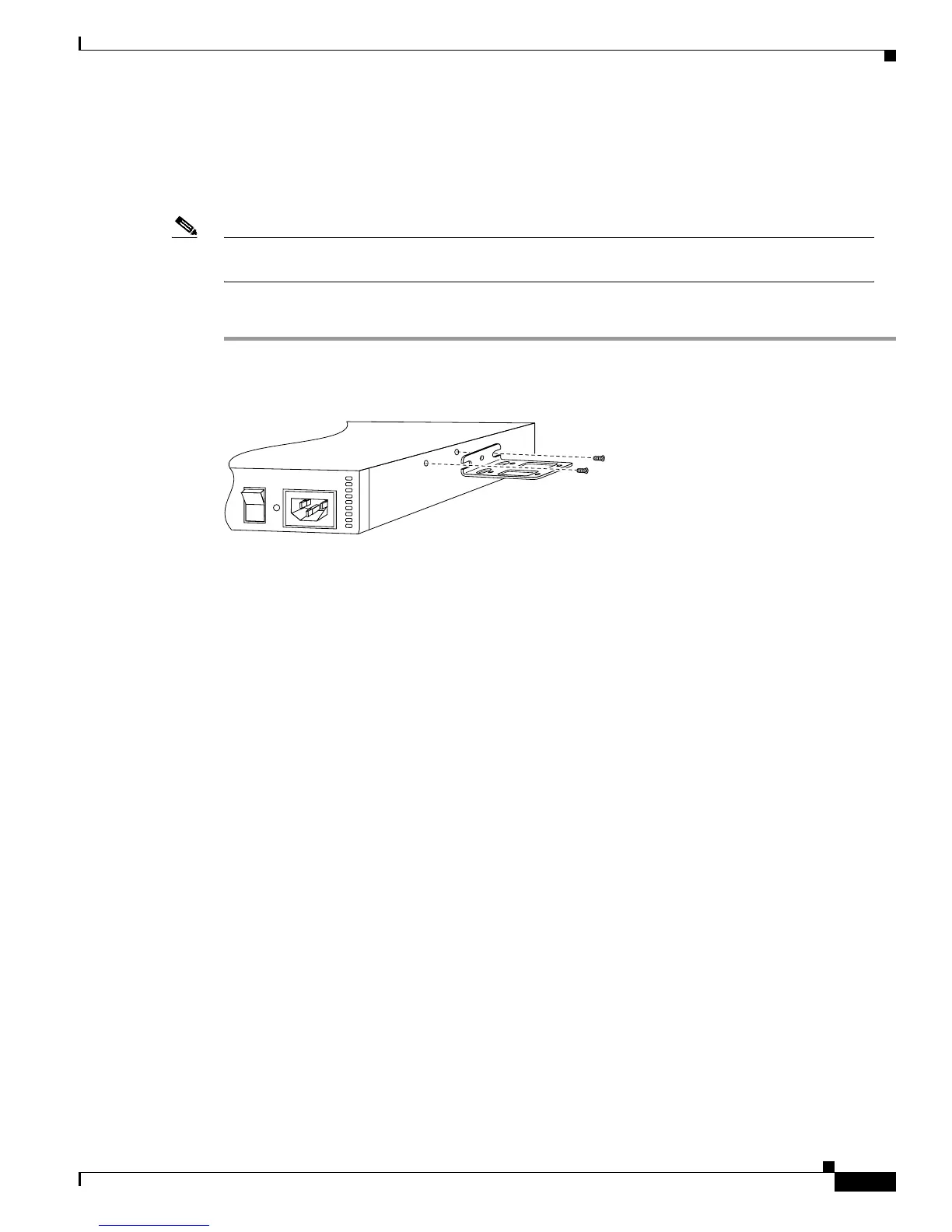

Figure 3-17 Attaching the Wall-Mount Brackets
Step 2
Attach the chassis assembly to the wall as shown in Figure 3-18, using screws and anchors that you
provide. We recommend the following:
• For the best support of the chassis and cables, attach the brackets so that the screws align with a
vertical wall stud. (See Figure 3-18.) This position will prevent the chassis from pulling away from
the wall when cables are attached.
• For the best ventilation of the chassis, mount the chassis with the power supply and fan at the top.
Make sure there is clearance between the router and the wall.
27719
Input: 100-240VA
C
Freq: 50/60 H
z
C
urrent: 1.2-0.6A
W
atts: 40W
0
1
