Cisco 2600 Series Hardware Installation Guide

3-5
Cisco 2600 Series Routers Hardware Installation Guide
OL-2171-02
Chapter 3 Installing the Router
Setting Up the Chassis
• If the rack contains stabilizing devices, install the stabilizers before mounting or servicing the unit
in the rack.

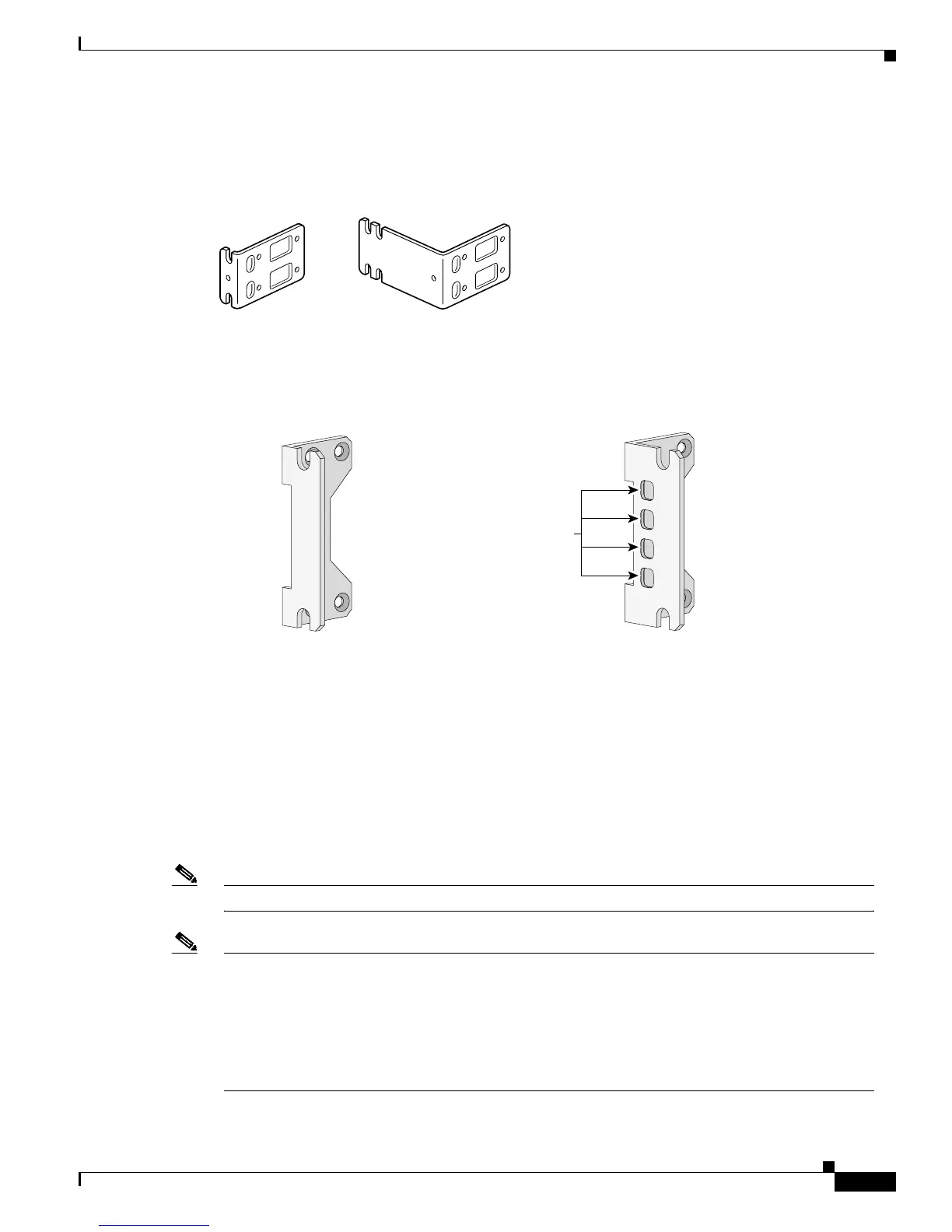

Figure 3-4 Brackets for Cisco 261x, Cisco 262x, Cisco 26xxXM, and Cisco 265x Series Routers
Figure 3-5 Brackets for Cisco 2691 Router
Attaching the Brackets to Cisco 261x, Cisco 262x, Cisco 26xxXM, and Cisco 265x Series Routers
To install the chassis in a rack, attach the brackets in one of the following ways:
• With the front panel forward (see Figure 3-6 and Figure 3-7)
• With the rear panel forward (see Figure 3-8 and Figure 3-9)
• In a center-mount rack, with the rear panel forward (see Figure 3-10 through Figure 3-12)
Note Use the screws that came with your router package for attaching the brackets.
Note If you are installing a Cisco 2600 series router in a 19-inch rack with a 17.5-inch opening, orient the
rack-mount brackets so that, when installed, they do not increase the width of the chassis. (See
Figure 3-6.)
If you are installing a Cisco 2600 series router in a 19-inch rack with a 17.75-inch opening or a 23- or
24-inch rack, orient the rack-mount brackets so that, when installed, they increase the width of the
chassis. (See Figure 3-7.)
Bracket for use with a
23-inch or 24-inch rack
Bracket for use
with a 19-inch rack
27711
Narrow bracket for
chassis side opposite fans
Wide bracket for
chassis side with fans
Slots for
cable tie
attachment
60289
LEFT
RIGHT
