Chapter 6 Installing and Upgrading Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)

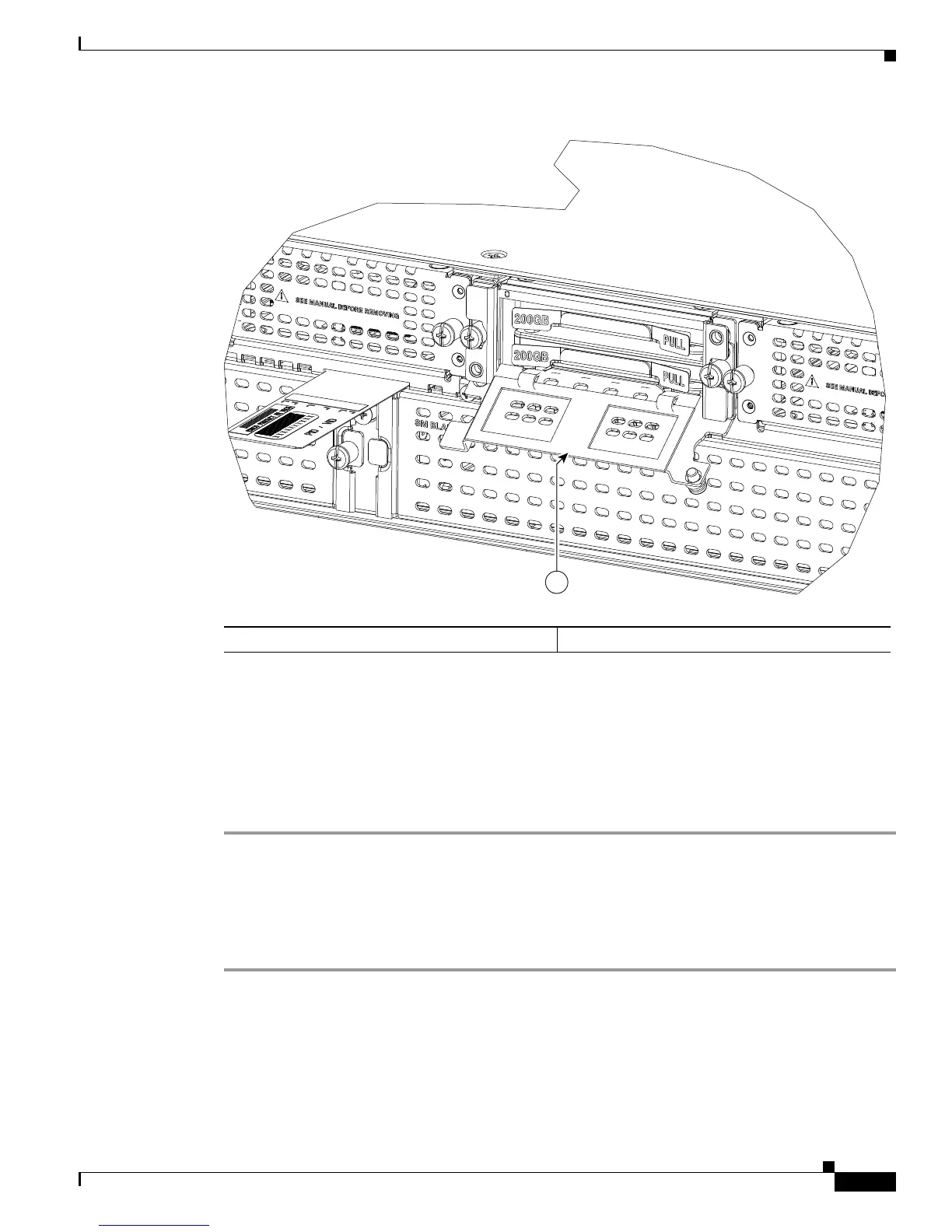

Figure 6-9 Opening the SSD slot cover
Step 3 Insert an SSD in the lower slot first.
Step 4 The SSD should be inserted connector end first with the connector side down and serial number facing
up (Figure 6-6).
Step 5 A second SSD may be inserted in the upper slot as shown in Figure 6-7.
Step 6 Rotate the SSD card slot cover up and into place over the SSD's.
Step 7 Re-tighten the captive fasteners on the SSD card slot cover.
Removing the SSD Drives from the NIM-SSD
To remove the SSD cards from the NIM carrier, follow these steps:
Step 1 On the NIM-SSD, loosen the captive screws retaining the NIM-SSD slot cover.
Step 2 Rotate the SSD card slot cover down, exposing the slots which hold the SSDs.
Step 3 To remove the SSD one at a time, pull the two tabs on the front of each SSD as shown in Figure 6-10.
Step 4 Rotate the SSD card slot cover up and into place over the SSDs.
Step 5 Re-tighten the captive fasteners on the SSD card slot cover.
347343
1
1. Carrier card slot cover

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
