Cisco 4451-X User Manual

6-23
Hardware Installation Guide for the Cisco 4451-X Integrated Services Router
OL-27644-01
Chapter 6 Installing and Upgrading Internal Modules and FRUs
Installing and Removing NIMs and SMs

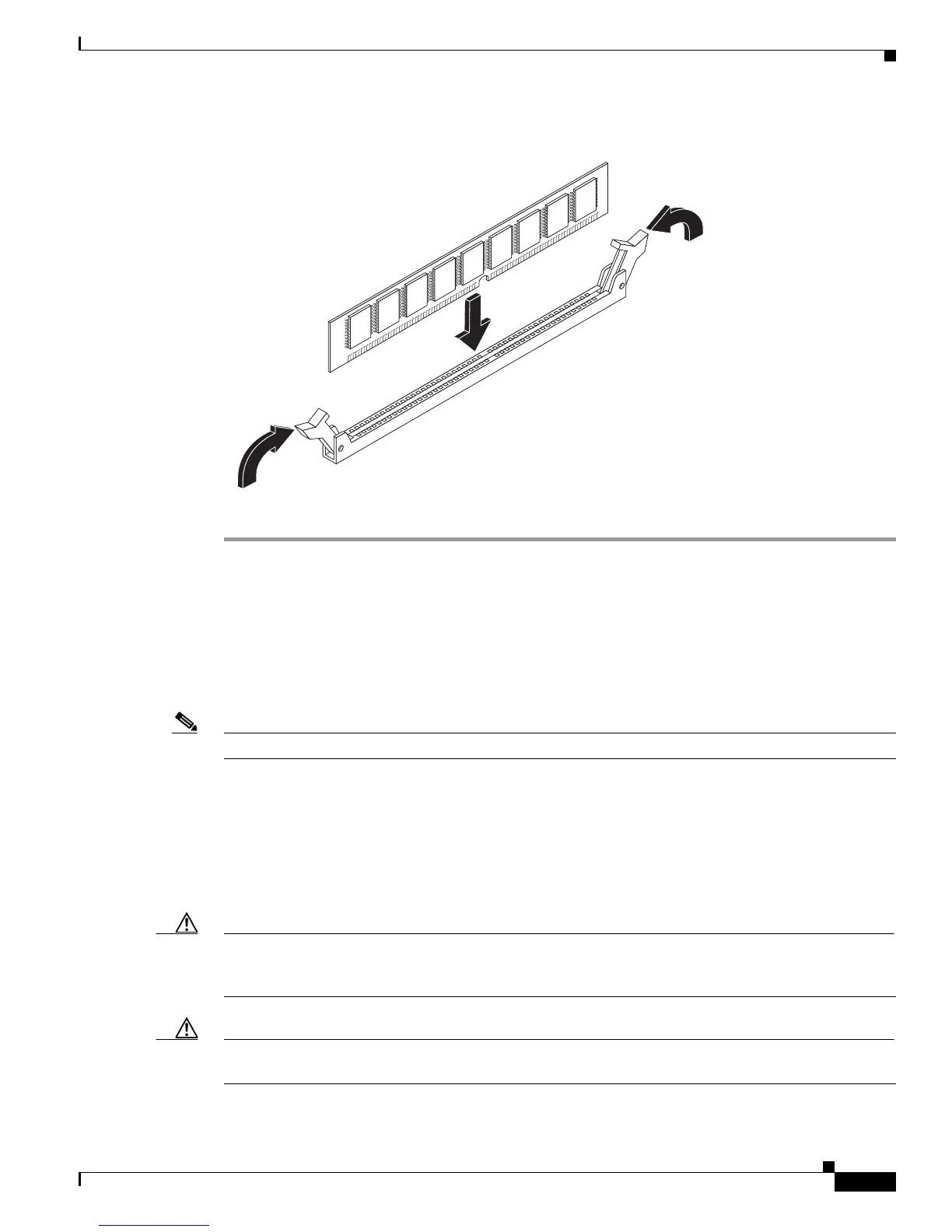

Figure 6-18 Installing a DIMM
Step 8
Replace the chassis cover. See the “Removing and Replacing the Chassis Cover” section on page 6-4.
Installing and Removing NIMs and SMs
Network Interface Modules (NIMs), Service Modules (SMs) and the Cisco E-Series Server Modules
plug into the various slots on the motherboard. SMs are sold as a spare part, and they have a label that
identifies the SM type. See the following sections for SM installation tasks:
Note The procedures in this section apply to NIMs, SMs, and the Cisco E-Series Server modules.
• Software Requirement for SMs, page 6-24
• Locating an SM or NIM, page 6-24
• Removing an SM or NIM, page 6-24
• Installing an SM, page 6-24
• Verifying SM Installation, page 6-25
Caution Always wear an ESD-preventive wrist strap and ensure that it makes good contact with your skin when
you remove or install an SM. Connect the equipment end of the wrist strap to the metal part of the
chassis.
Caution Handle SMs and NIMs by the edges only. SMs are ESD-sensitive components and can be damaged by
mishandling.
250946

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
