Chapter 6 Installing and Upgrading Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)

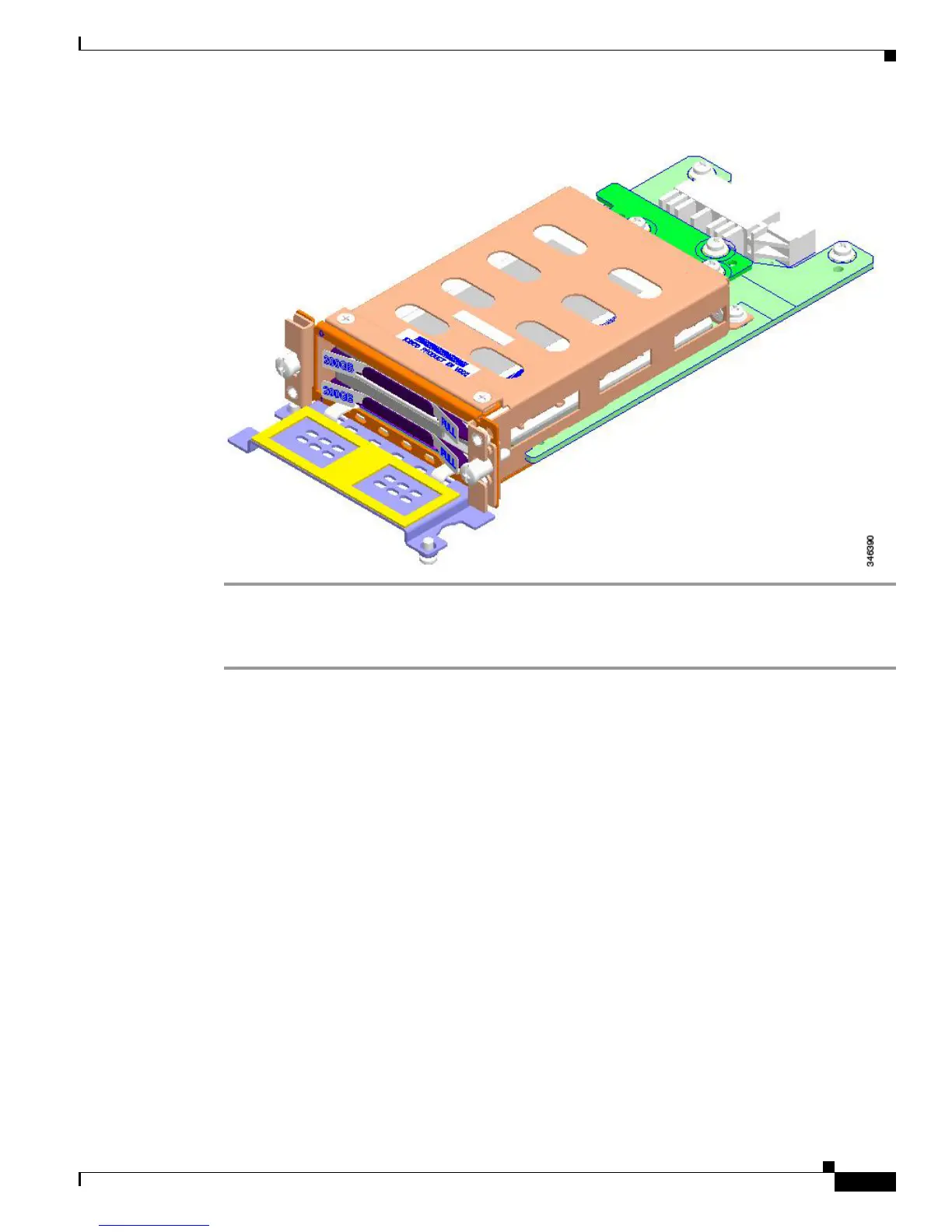

Figure 6-11 Side View of the NIM-SSD
To insert or remove the NIM-SSD into the Cisco ISR 4451-X NIM slot 3, see the“Removing and
Replacing the Cisco ISR 4451-X NIM-SSD Drives” section in this chapter.
Removing and Replacing the Cisco ISR 4451-X NIM-SSD Drives
This section explains how to remove a solid state drive assembly (NIM-SSD) from the Cisco ISR 4451-X
chassis and replace it with a new external NIM-SSD.
To deactivate and reactivate a NIM, see the “Deactivating and Reactivating a SSD Carrier Card NIM”
section in the Software Configuration Guide for the Cisco ISR 4451-X.
Restrictions
• Cisco SSD Carrier Card NIM with no SSD drives is not supported.
• Dynamically removing and inserting SSD drives on a NIM is not supported.
• Only a single SSD Carrier Card NIM per router is supported on any bay.
• Plugging additional SSD Carrier Card NIMs into a bay will power off the module.
• Power down the NIM-SSD module and wait for the power LED to turn off before removing the
module or removing and replacing new SSD drives.
• Replacing any SSD drive can cause some data loss.

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
