Chapter 1 Overview of the Cisco 4451-X Integrated Services Router
About Slots and Interfaces

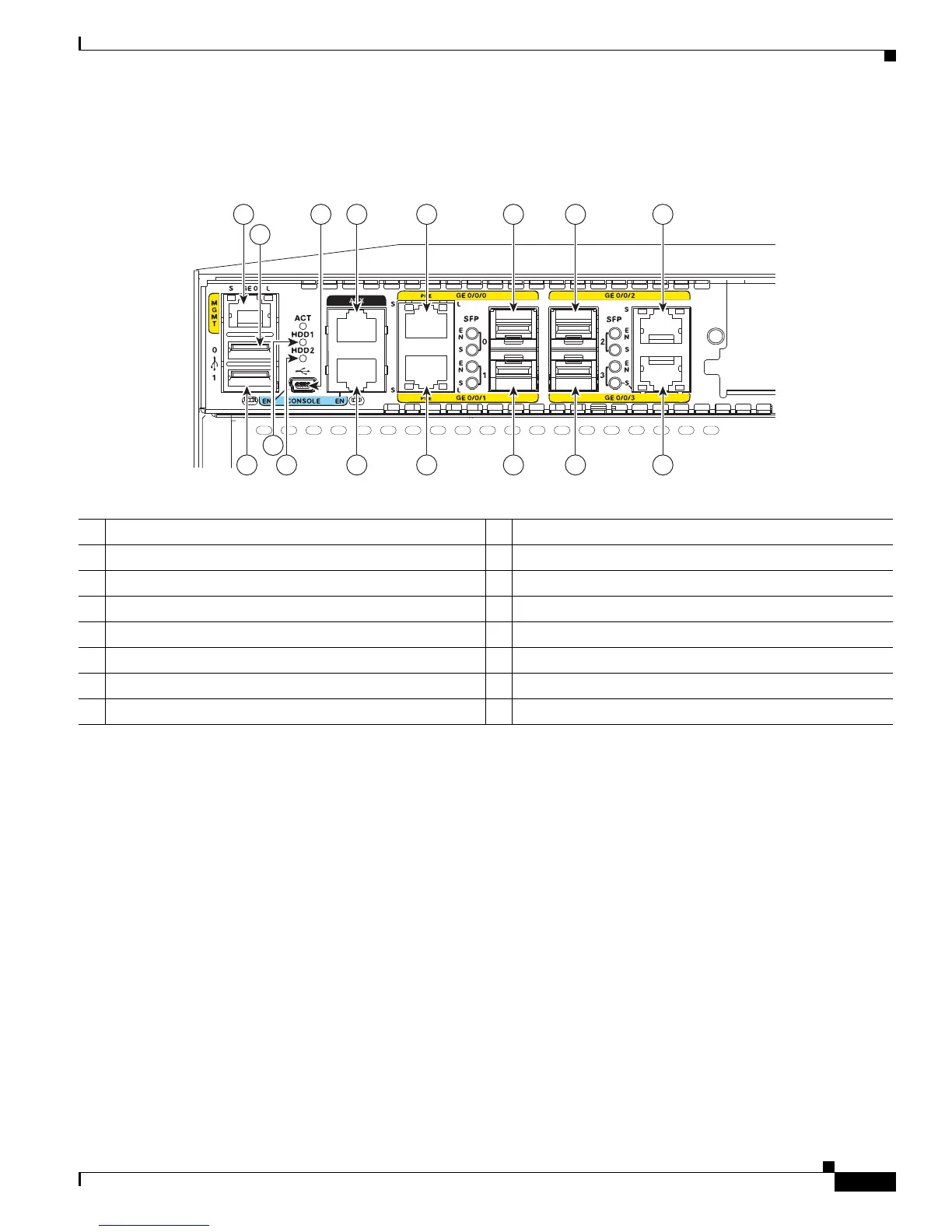

Figure 1-9 Ports and Slots on the Cisco ISR 4451-Xs
Slot Numbering
Slots are numbered 0, 1 and 2.
• About Slot 0
• About Slot 1 and 2
• Additional Slots
About Slot 0
The following are the main features of Slot 0:
• Slot 0 is the motherboard and not removable. It is reserved for integrated ports and NIMs.
• The front panel GE ports (or native interface ports) always reside in slot 0 and bay 0. There are four
ports, and they are called Gigabitethernet 0/0/0, Gigabitethernet 0/0/1, Gigabitethernet 0/0/2, and
Gigabitethernet 0/0/3.
• PVDM4s do not have an external slot number. Therefore, the nomenclature for PVDM4s always has
0 in the first tuple. For example, the 3-tuple for an PVDM4 might be 0/4/x.
1 Gigabit Ethernet management port 2 USB port 0
3 USB console 4 Auxiliary port
5 Gigabit Ethernet port 0 6 Small-form-factor pluggable (SFP) 0
7 SFP 2 8 Gigabit Ethernet port 2
9 Gigabit Ethernet port 3 10 SFP 3
11 SFP 1 12 Console port
13 Gigabit Ethernet port 1 14 HDD 2 LED
15 HDD 1 LED 16 USB port 1
285701
L
L
1
2
4 5 6 7 8
91011121316
14
15
3

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
