Overview of the SSD Carrier Card NIM (NIM-SSD)
LEDs on the NIM-SSD
Table 6-1 describes the LEDs on the NIM-SSD as shown in Figure 6-3.
Figure 6-4 shows the rear view of the SSD carrier card NIM. This end fits into the Cisco ISR 4451-X.

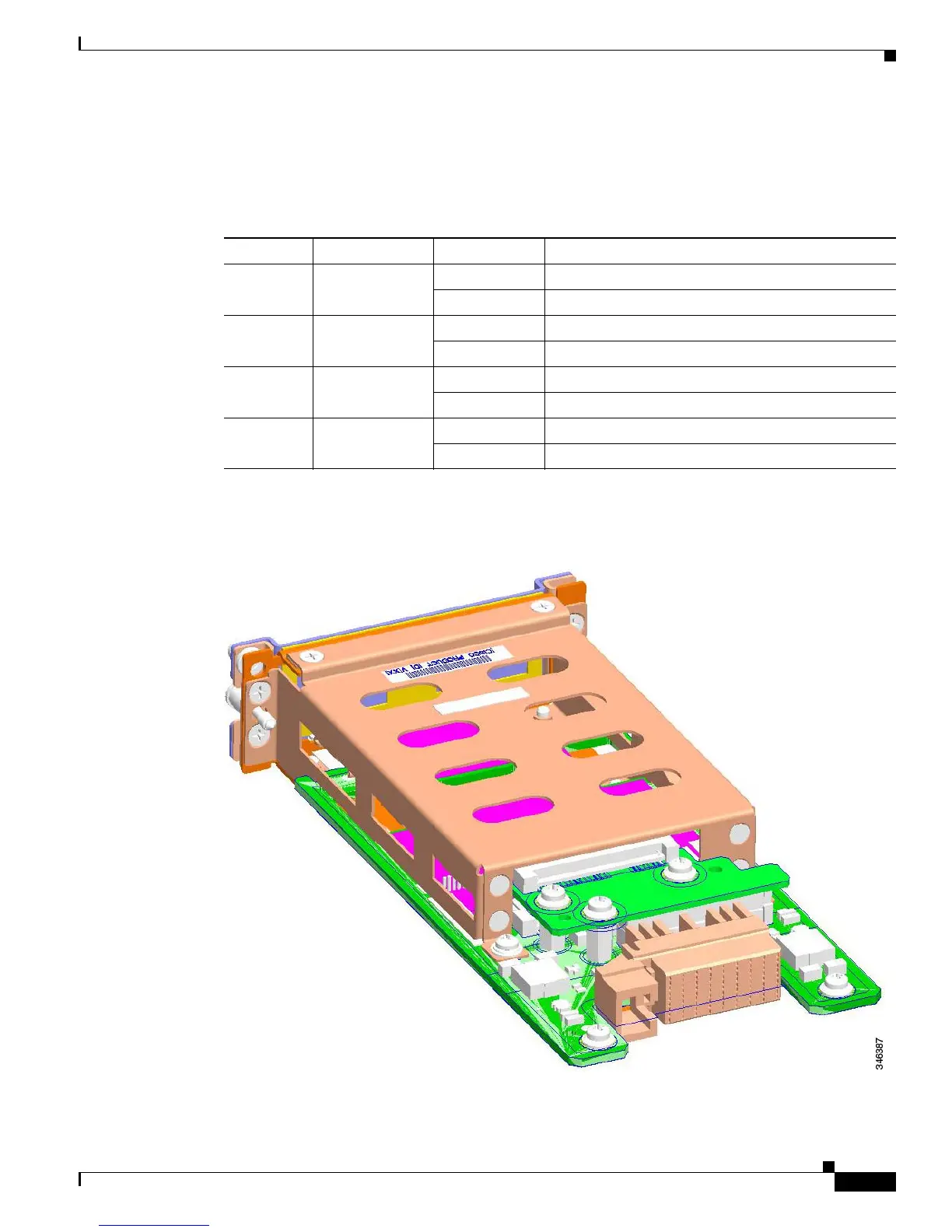

Figure 6-4 Rear view of the SSD Carrier Card NIM
Table 6-1 SSD Drive LEDs
LED Represents Color Description
EN Module power Green Module is powered on.
Off Module power is off.
SSD0 Solid state drive
in slot 0
Green SSD present.
Off No SSD drive in slot 0.
ACT SSD activity Green Activity in the SSD drive.
Off No activity.
SSD1 Solid state drive
in slot 1
Green SSD present.
Off No SSD in slot 1.

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
