Chapter 1 Overview of the Cisco 4451-X Integrated Services Router
Chassis Views

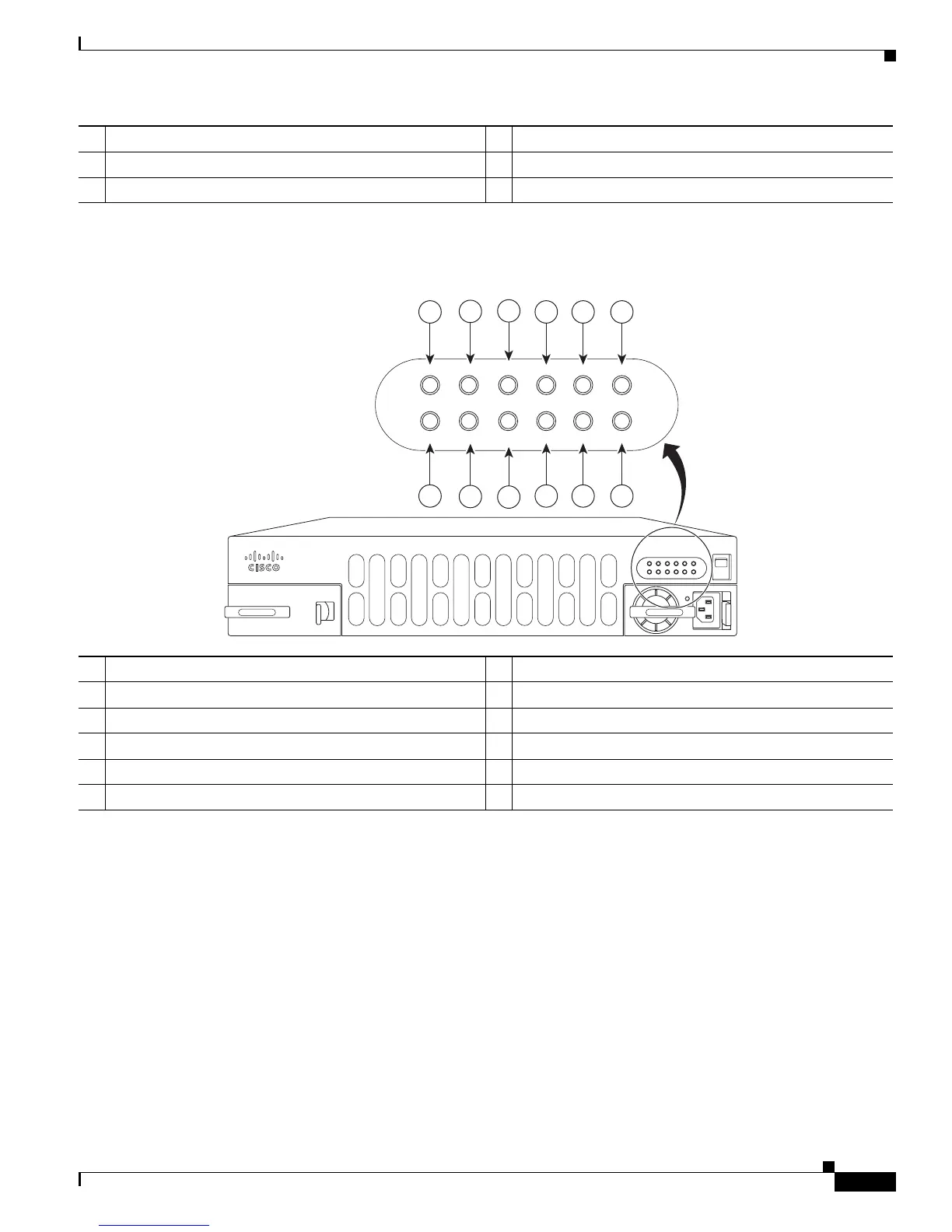

Figure 1-4 Bezel Side LEDS of the Single PSU Cisco ISR 4451-X Model
17 SFP Gigabit Ethernet GE 0/0/1 18 LEDs for the GE 0/0/1 interface
19 RJ45 Gigabit Ethernet port GE 0/0/1 20 Serial Console Port
21 Console port USB 0 and USB 1
1 PSU0: Power supply unit 1 2 PSU1: Power supply unit 2
3 GE POE: Internal PoE daughter card status 4 FLASH: Compact flash status
5 TEMP: Temperature status 6 PWR: Power
7 STAT: System status 8 FAN: Fan status
9 ISC: Integrated Services Card status 10 POE BOOST: Power over Ethernet boost mode
11 POE 1: Power over Ethernet 2 status 12 POE 0: Power over Ethernet 1 status
PSU0 PSU1 FLASH TEMP PWR
VM
POE1
POE0
FAN
STAT
INT
POE
BOOST
285696
Cisco 4400 Series
PSU1 PSU2
POE1 POE2
FLASH TEMP PWR
VM FA N STAT
INT
POE
BOOST
PSU0 PSU1 FLASH TEMP PWR
VM
POE1
POE0
FAN
STAT
INT
POE
BOOST
1
2
3
4 5 6
12
11
10
9 8
7

Cisco 4451-X Specifications

General

Aggregate Throughput	2 Gbps
Total Onboard WAN or LAN 10/100/1000 Ports	4
RJ-45-based Ports	4
SFP-based Ports	4
Enhanced Service Module (SM-X) Slots	2
NIM (Network Interface Module) Slots	3
Onboard ISC Slot	1
Memory (DRAM) Default	4 GB
Memory (DRAM) Maximum	16 GB
Flash Memory	8 GB
Rack Height	2 RU
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Product Series	Cisco 4000 Series
Model	4451-X
Network/Transport Protocol	IPsec
Remote Management Protocol	SNMP
Features	Firewall protection, VPN support, Quality of Service (QoS), IPv6 support
Interfaces	4 x 10/100/1000 Ethernet ports, 4 x SFP ports
Power	AC 100-240 V (50/60 Hz)
Memory	4 GB
Operating Temperature	0 to 40 °C
Storage Temperature	-40 to 70 °C
Humidity	5% to 95% non-condensing
