Cisco 7941G User Manual

DescriptionLine or Call StateIcon
The intercom line is not in use. See Intercom Calls, on page 40Idle Intercom line
The intercom line is sending or receiving one-way audio.
See Intercom Calls, on page 40.
NoteOne-way intercom call
You press the intercom line to activate two-way audio with the
intercom caller. See Intercom Calls, on page 40.
Two-way intercom call
Phone Screen Features

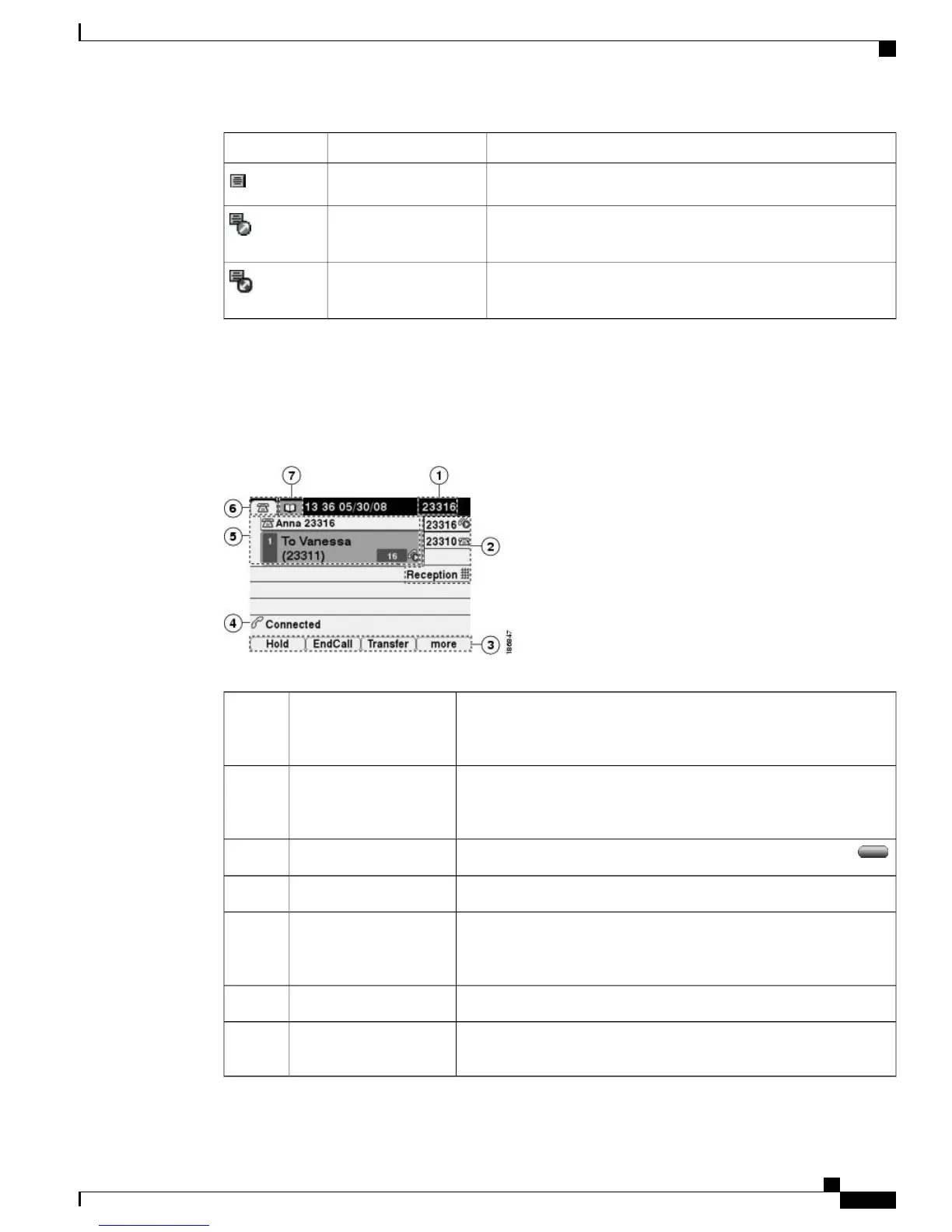

The following figure shows how your main phone screen may look with an active call.
Displays the phone number (directory number) for your primary phone
line. When several feature tabs are open, the phone number and the
time and date display alternately in this area.
Primary phone line1
Serve as phone line buttons, intercom line buttons, speed-dial buttons,
phone service buttons or phone feature buttons. Icons and labels indicate
how these buttons are configured.
Programmable buttons2
Displays a softkey function for the corresponding softkey button .
Softkey labels3
Displays audio mode icons, status information, and prompts.Status line4
Displays current calls per line, including caller ID, call duration, and
call state for the highlighted line (standard view). See Line and Call
Definitions, on page 5, and Multiple Calls, on page 29.
Call activity area5
Indicates call activity.Phone tab6
Indicate an open feature menu. See Feature Buttons and Menus, on
page 8.
Feature tabs7
Cisco Unified IP Phone 7941G, 7941G-GE, 7942, 7961G, 7961G-GE, and 7962 User Guide for Cisco Unified
Communications Manager 9.0 (SCCP and SIP)
7
Phone Features
Phone Screen Features

Cisco 7941G Specifications

General

Keypad number of keys	12
Touchscreen	-
Display resolution	320 x 222 pixels
Speakerphone	Yes
Voice codecs	G.729a
Bluetooth	No
Supported network protocols	DHCP, TFTP, SCCP, DSCP
Ethernet LAN (RJ-45) ports	2
Input voltage	48 V
Dimensions (WxDxH)	266.7 x 152.4 x 203.2 mm
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Gray
Safety	(UL) 60950, (CSA) C22.2 No. 60950, IEC 60950, EN 60950, AS/NZS 60950
Certification	CE (FCC) 15 (CFR 47) B ICES-003 B EN55022 B CISPR22 B AS/NZ 3548 B VCCI B EN55024 EN 50082-1 EN 61000-3-2 EN 61000-3-3
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3af
Lines quantity	- lines
Phonebook capacity	- entries
Number of handles included	1 pc(s)

Weight and Dimensions

Weight	1600 g
