Cisco 8800 Series Hardware Installation Guide

TransceiversLine Card PIDs
QSFP56-DD / QSFP28 / QSFP+8800-LC-36FH
QSFP56-DD / QSFP28 / QSFP+88-LC0-36FH
QSFP56-DD / QSFP28 / QSFP+88-LC0-36FH-M
88-LC0-36FH and 88-LC0-36FH-M line cards are compatible with Q100 and Q200 silicon based fabric cards.
Route Processor Card Overview
Route Processor cards (8800-RP) manage all routing operations on the Cisco 8800 Series Routers.

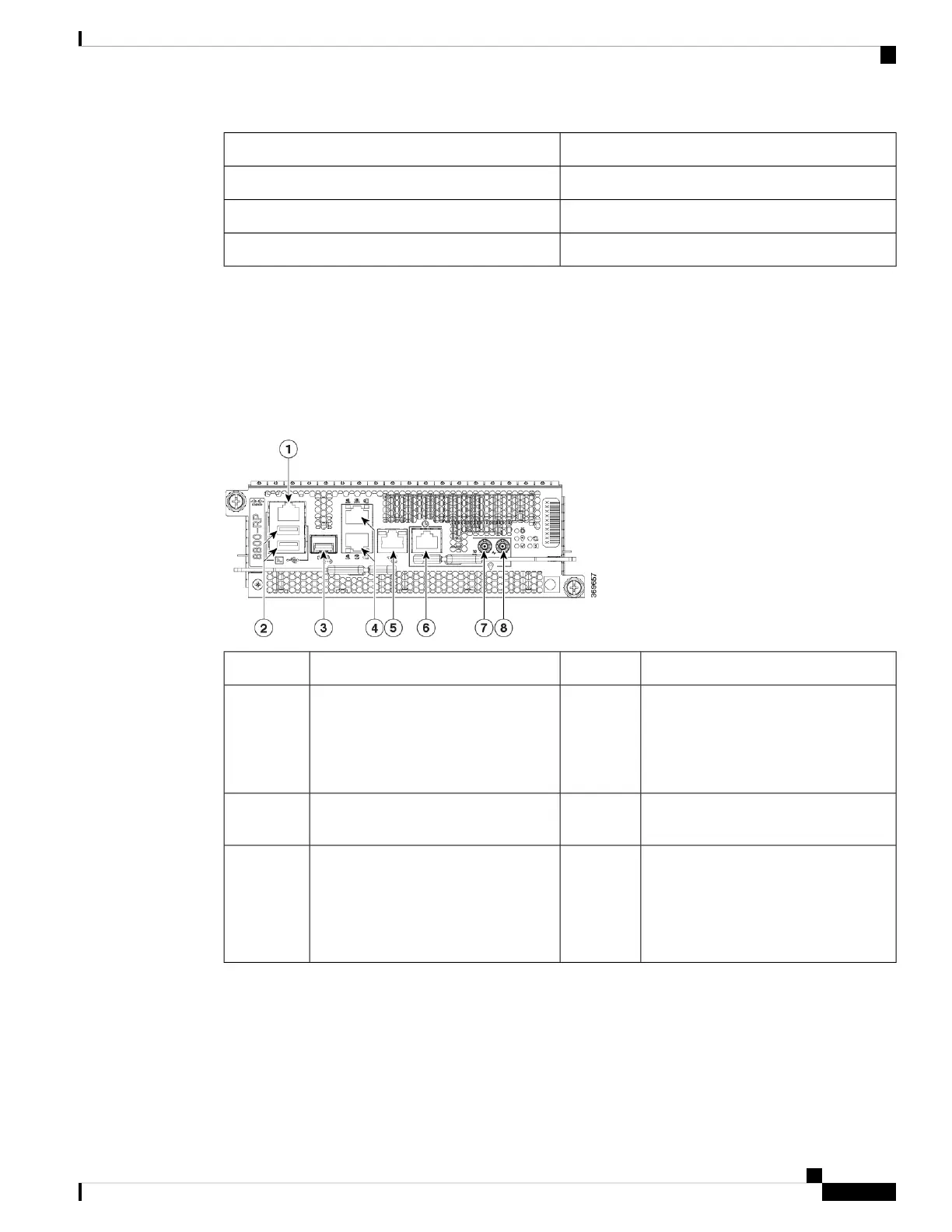

Figure 1: Route Processor
SyncE BITS/DTI/J.2115Console RS-232 Serial Port RJ451
G.703 Time-of-Day (TOD)6USB Port Type-A (2-ports). Port A gets
detected ahead of Port B.
Top: Port B
Bottom: Port A
2
1.0/2.3 50 ohm connector for 10 MHz,
input, and output
7Control Plane Expansion SFP/SFP+
port
3
1.0/2.3 50 ohm connector for 1 PPS,
input, and output
8Top: Management Ethernet
(10/100/1000-Mbps) RJ-45 (Copper)
port LAN.
Bottom: IEEE 1588 Precision Time
Protocol (PTP)
4
Hardware Installation Guide for Cisco 8800 Series Routers
5
Cisco 8800 Series Routers Overview
Route Processor Card Overview

Cisco 8800 Series Specifications
