Removing the Transceiver Module
The transceiver module is a static-sensitive device. Always use an ESD wrist strap or similar individual
grounding device when handling transceiver modules or coming into contact with modules.
Caution
To remove a transceiver module, follow these steps:
Procedure
Step 1 Disconnect the network interface cable from the transceiver connector.
Step 2 Install the dust plug immediately into the transceiver’s optical bore.
Step 3 Grasp the pull-tab and gently pull to release the transceiver from the socket.

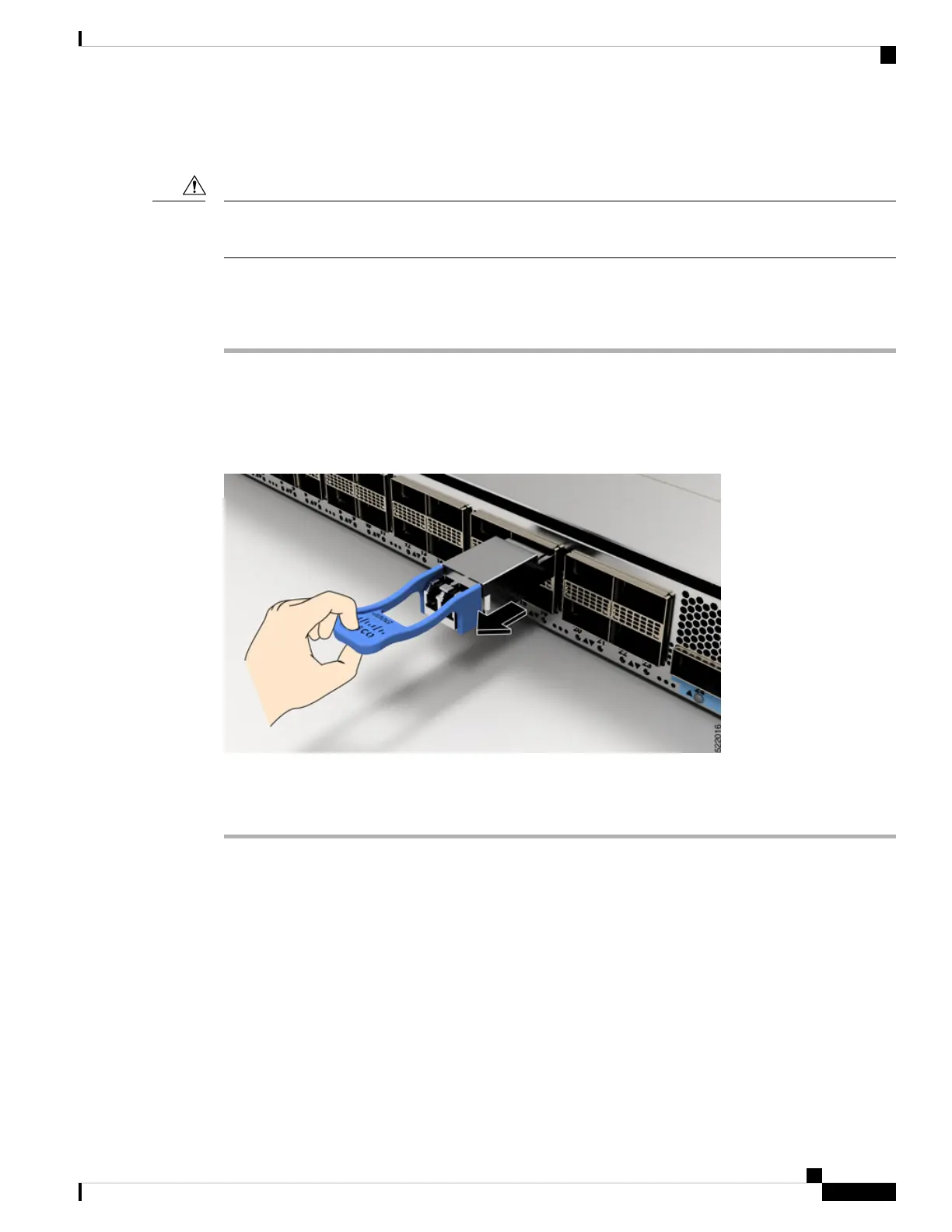

Figure 74: Removing the QSFP Transceiver Module
Step 4 Slide the transceiver out of the socket.
Step 5 Place the transceiver module into an antistatic bag.
Connect Interface Ports
You can connect optical interface ports on line cards with other devices for network connectivity.
Connect a Fiber-Optic Port to the Network
Depending on which line card model that you are using, you can use either QSFP+ or QSFP28 transceivers.
Some transceivers work with fiber-optic cables that you attach to the transceivers and other transceivers work
with pre-attached copper cables. You must install a transceiver in the port before installing the fiber-optic
cable in the transceiver.
Hardware Installation Guide for Cisco 8800 Series Routers
85
Connect Router to the Network
