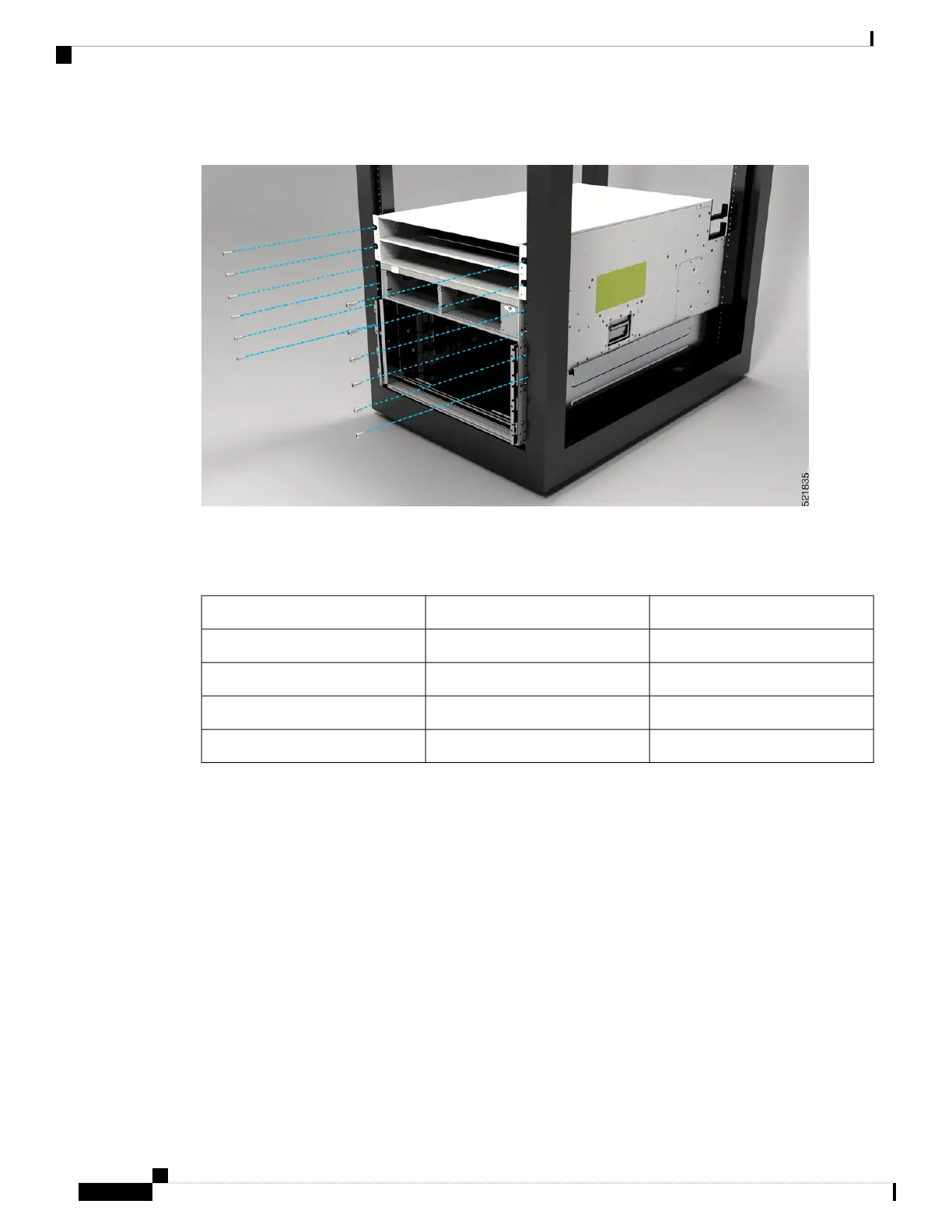

Figure 16: Attach 8804 Chassis to Rack - Front
You should remove the power shelf to facilitate attaching chassis to the rack.
Note
Table 14: Screws Required to Secure the Cisco 8800 Chassis to the Rack
Screws for RearScrews for FrontChasiss
1746Cisco 8818
1230Cisco 8812
1422Cisco 8808
1012Cisco 8804
Step 4 Use the screws provided with the rack to attach the chassis rear rails.
Hardware Installation Guide for Cisco 8800 Series Routers
34
Unpack and Install the Chassis
Mount Chassis Into the Rack
