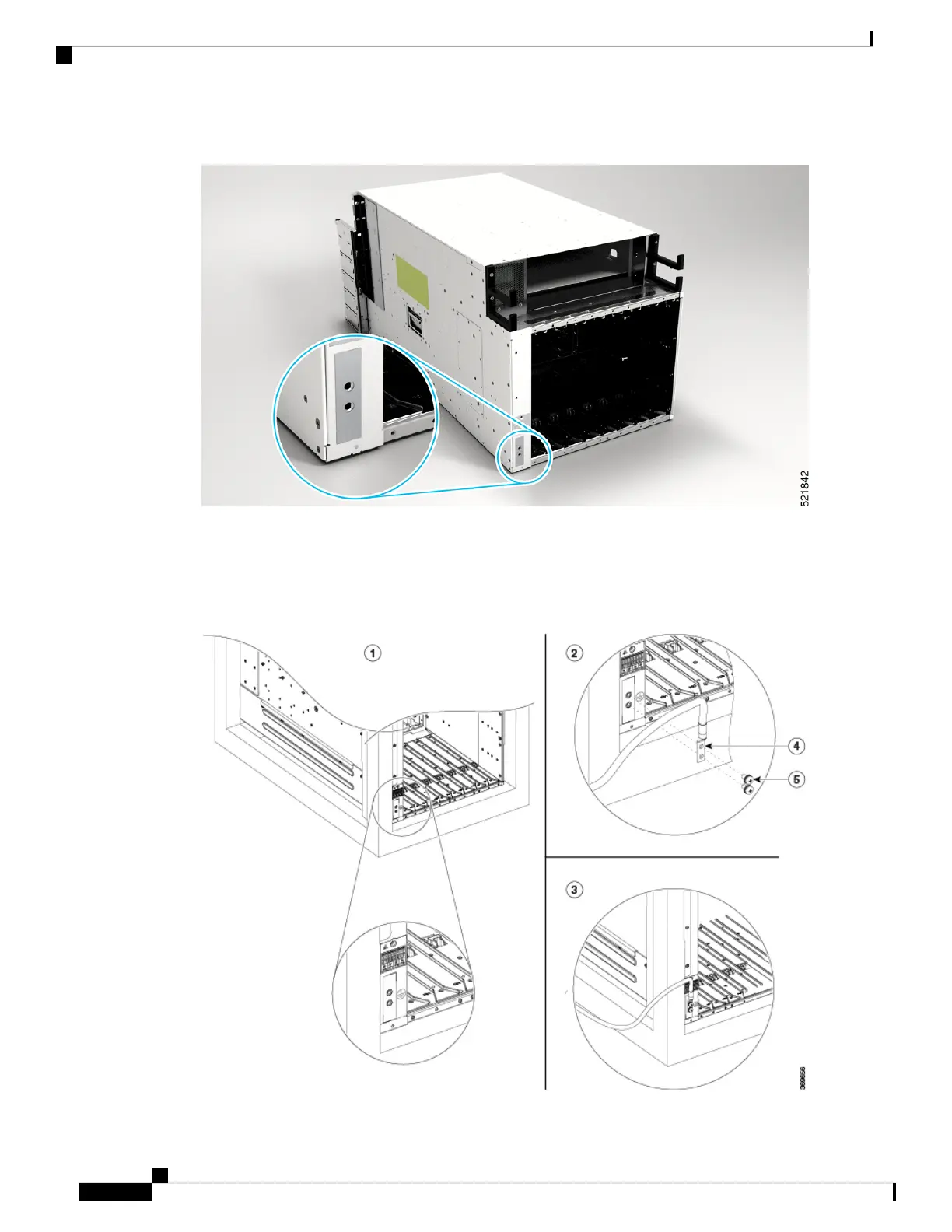

Figure 28: Chassis Ground Receptacles on Cisco 8804 Chassis
Step 2 Use the wire stripper to strip one end of the 2-AWG wire approximately 0.75 inches (19.05 mm).
Step 3 Insert the 2-AWG wire into the wire receptacle on the grounding lug.
Figure 29: Ground the Chassis
Hardware Installation Guide for Cisco 8800 Series Routers
44
Unpack and Install the Chassis
Locate and Ground the Chassis
