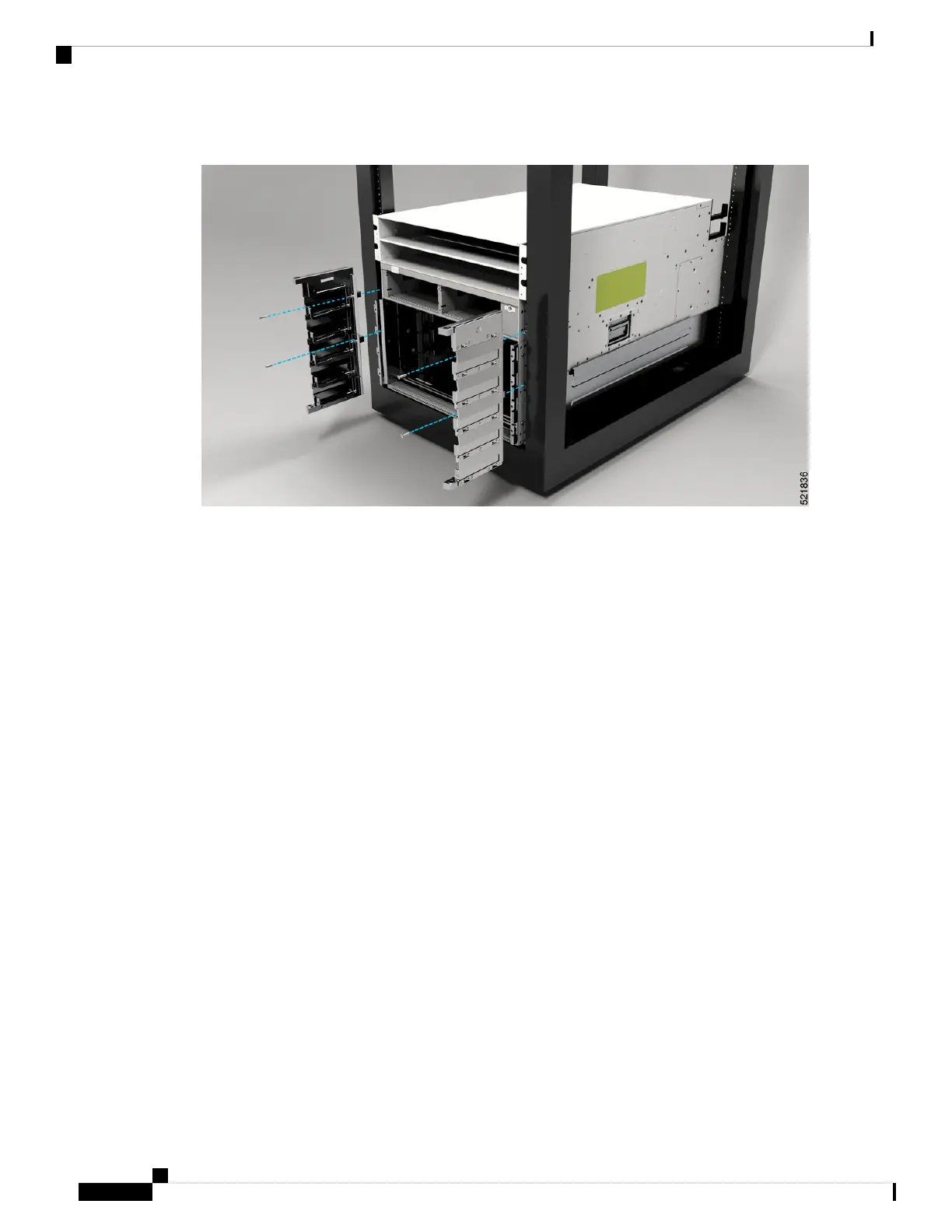

Figure 33: Cable Management Brackets for 8804 Chassis
Step 2 Secure the left and right cable management brackets to the chassis vertical mounting brackets with M4 x
18-mm screws, flat-head Phillips screws (use all screws provided in the kit). Insert one screw at the top and
one at the bottom, likewise add more screws in this sequence. The number of screws may vary based on the
chassis.
Do not fully tighten the screws until the cable management brackets, bottom cover, and top hood
are installed.
Note
Step 3 Repeat Steps 1 and 2 to attach the other cable management bracket to the vertical mounting bracket on the
opposite side of the chassis.
Step 4 Remove the power shelf bezel from the chassis and proceed with bottom cover and top hood installation.
Step 5 Position the bottom cover, with its brackets pointing up, to the bottom of the two side cable management
bracket screw holes.
Hardware Installation Guide for Cisco 8800 Series Routers
48
Unpack and Install the Chassis
Install Cable Management on a Chassis
